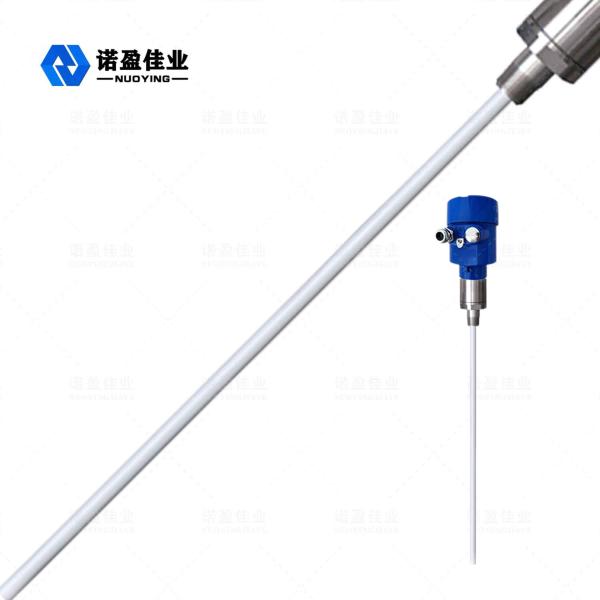

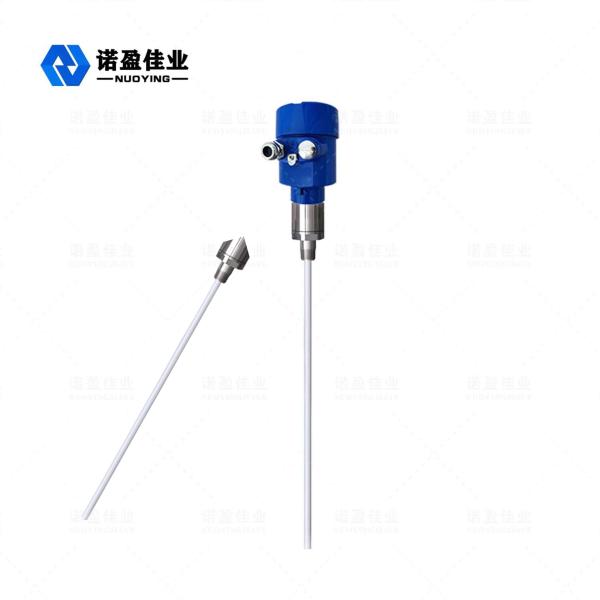

NYSP-M17 Measurable Corrosive Liquid RF Admittance Level Meter
NYSP-M17 Measurable Corrosive Liquid RF Admittance Level Meter
NYSP-M17 Measurable Corrosive Liquid RF Admittance Level Meter
NYSP-M17 Measurable Corrosive Liquid RF Admittance Level Meter
NYSP-M17 Measurable Corrosive Liquid RF Admittance Level Meter
NYSP-M17 Measurable Corrosive Liquid RF Admittance Level Meter
Specifications
Brand Name :
NUOYINGJIAYE
Model Number :
NYSP-M17
Certification :
CE
Place of Origin :
Xi'an Shaanxi,China
MOQ :
1 pcs
Price :
$503.379/pcs
Payment Terms :
T/T
Supply Ability :
1000 pcs/per month
Delivery Time :
7 working days
Packaging Details :
Carton,Export Standard Packaging
Typical Application :
Corrosive Liquid, dust, solid
Product Models :
NYSP-M17
Antenna Type :
Hard rod type, soft cable type
Antenna Material :
PTFE, 304, 316
Measuring Range :
3m，20m
MeasurementProcess Temperature Accuracy :
-40~+130℃
Signal Output :
4... 20mA/HART/RS485/Modbus
Electrical Interface :
M20 × 1.5, ½ "NPT
Description

NYSP-M17 Measurable Corrosive Liquid RF Admittance Level Meter

NYSP-M17 RF Admittance Level Meter Working Principle

RF Admittance level meter is a kind of continuous level measurement product based on RF Admittance principle. The product has the advantages of high stability, high sensitivity and wide application. Compared with traditional capacitance level meter, it adopts modular design, which can set up the instrument easily and conveniently. After the setup is completed, it can be used normally and is maintenance-free for life. It enables users to visualize the operation of the equipment and deal with problems in time. It is also safe and reliable in complex industrial settings.

RF conductivity measurement technology is a level measurement technology with unique advantages. Although the concept is very similar to the general capacitance measurement technology, RF conductivity technology adds a drive shield circuit and a chopper circuit to the electronic unit, thus enabling independent measurement of impedance and capacitive resistance. According to the calculation of physical laws, the impedance and capacitive resistance of any suspension are equal, so the effect caused by the suspension can be measured and eliminated from the total output by the phase shift of the oscillation circuit.

The probe of the RF conductivity level meter is installed in the tank and the change of RF signal caused by the level change is obtained through the probe. The drive shield of the probe prevents the RF current from forming a loop through the hanging material, ensuring the accuracy of the instrument measurement.

NYSP-M17 RF Admittance Level Meter Technical Parameters

Typical Application

 Corrosive Liquid, dust, solid
Product Models

NYSP-M17
Antenna Type Flexible cable,hard rod
Antenna Material PTFE, 304, 316
Measuring Range 3m, 20m (hundreds of meters can be measured for deep wells, customized)
Measurement Accuracy 0.05%~0.1%F. S
Power Supply 24VDC
Signal Output 4...20mA/HART/RS485/Modbus...
Process Temperature -40~+130℃
Process Pressure -0.1～1.6MPa,-0.1～4.0MPa,-0.1～6.3MPa
Process Connection Thread, flange (optional)
Electrical Interface M20 × 1.5, ½ "NPT
Protection Grade IP65, IP67, IP68 (optional)
Explosion Proof Grade Exia Ⅱ CT6 Ga, Exd Ⅱ CT6 Gb (see certificate for details)

Note: The products can be customized and designed according to the specific requirements of users!

NYSP-M17 RF Admittance Level Meter Design Features

Unique anti-hanging material drive shield circuit design improves the ability to prevent hanging material.

Power supply range. 13~35VDC

Adaptive probe process temperature. - 100 ℃~800 ℃

No dead angle measurement, can be applied to a dozen centimeters or even a few centimeters of level measurement

Maximum measurement range can reach hundreds of meters, or even hundreds of meters

Interface measurement of viscous materials is the biggest advantage of the instrument

Stable and reliable output, resistant to fly ash, blanks, water vapor, crystallization and wax deposits

No maintenance, no moving parts, no easy to wear parts, no regular cleaning, maintenance and commissioning
