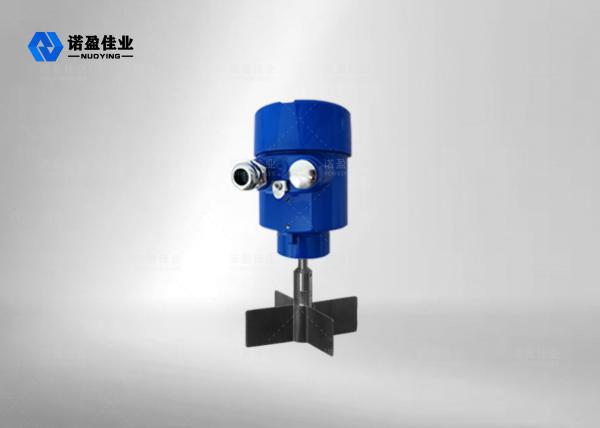

NYZX Motor Rotary Paddle Level Switch With Oil Seal 24VDC / 220VAC
NYZX Motor Rotary Paddle Level Switch With Oil Seal 24VDC / 220VAC
Specifications
Brand Name :
NUOYINGJIAYE
Model Number :
NYZX
Certification :
CE
Place of Origin :
Xi'an,Shaanxi,China
MOQ :
1 pc
Price :
$100~$380/pc
Payment Terms :
T/T
Supply Ability :
1000 pcs/month
Delivery Time :
7 working days
Packaging Details :
Carton, 60cm×30cm×30cm
Typical application :
Powder and small particle level measuring
Power Supply :
24VDC/220VAC
Process Temperature :
-40~+80℃（>+80℃ customized）
Process Pressure :
Normal pressure
Process Connection :
screw thread、flange（selectable）
Medium density :
≥0.4g/ cm3
levels of protection :
IP 67
Explosion-proof grade :
ExiaII CT6 （See certificate for details）
Description

NYZX Imported Motor Rotary Paddle Level Switch With Unique Oil Seal Design

Working principle of NYZX Imported Motor Rotary Paddle Level Switch With Unique Oil Seal Design

The principle of the material level switch is to use the micro motor as the driving device, the drive shaft is connected with the clutch and drives the blade at the end of the drive shaft to rotate, when the detected material rises to the blade position, the blade rotation is blocked, the detection device will produce rotation displacement around the main shaft, the displacement first makes a micro switch action, send a material signal; Then another micro switch action cuts off the power to the micro motor and stops the blades from turning. This state will be maintained as long as the material level in the warehouse is unchanged

Design Features of NYZX Imported Motor Rotary Paddle Level Switch With Unique Oil Seal Design

◎ unique oil seal design can prevent dust from penetrating along the shaft;

◎The motor of imported resistance rotary switch has reliable performance, and double sealed bearings can ensure long-term continuous operation;

◎ Simple structure and convenient installation;

◎ stable and reliable, and the torque can be adjusted;

◎ a variety of probe forms can be applied to different occasions.

Technical Parameters of NYZX Imported Motor Rotary Paddle Level Switch With Unique Oil Seal Design

Typical application small particle level control
product model NYZX
Probe Rod Material 304(optional)
Probe Rod Length 100mm(The length can be customized according to the site conditions)
Power Supply 220VAC
Process Temperature -40~+80℃(>+80℃can be customized)
Process Pressure room pressure
Process Connection flange(optional)
Electric shock capacity 250V 5A(SPDT Single pole double throw)
Medium density ≥0.4g/cm3
moment of force 10kg.m(1N.m)
Insulation impedance ≥100MΩ(500VDC)
levels of protection IP67
Explosion-proof grade Exia II CT6(See certificate for details)


※Note:The product can be customized according to the specific requirements of user
