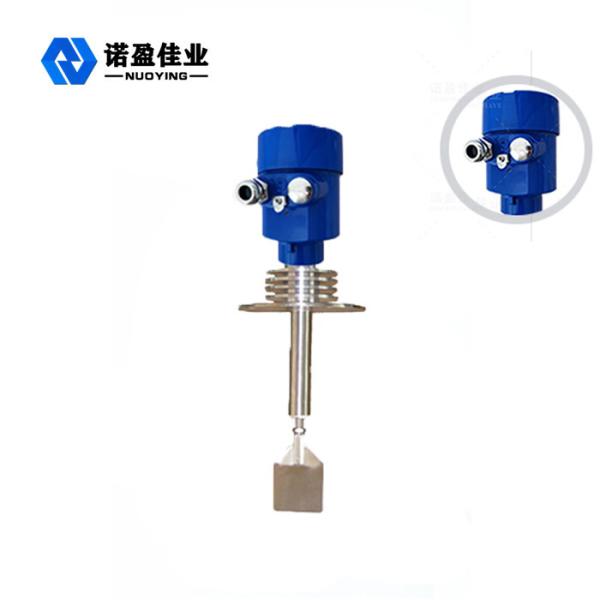

Oil Seal Rotary Paddle Level Switch Single Pole Double Throw IP67
Oil Seal Rotary Paddle Level Switch Single Pole Double Throw IP67
Oil Seal Rotary Paddle Level Switch Single Pole Double Throw IP67
Oil Seal Rotary Paddle Level Switch Single Pole Double Throw IP67
Specifications
Brand Name :
NUOYINGJIAYE
Model Number :
NYZX
Certification :
CE
Place of Origin :
Xi'an,Shaanxi,China
MOQ :
1 pcs
Payment Terms :
T/T
Supply Ability :
1000 pcs/month
Delivery Time :
7 working days
Packaging Details :
Carton, 60cm×30cm×30cm
Price :
$100~$380/pcs
Process temperature :
-40"~+80"C(> +80"C can be customized)
Process pressure :
Room pressure
Process connection :
flange
Protection grade :
IP 67
Insulation impedance :
≥100MΩ（500VDC）
moment of force :
10kg.m(1N.m)
Electric shock capacity :
250V 5A(SPDT Single pole double throw)
Probe Rod Material :
304（optional）
Description

Unique Oil Seal Design Rotary Paddle Level Switch Simple Structure And Convenient Installation

Working principle of Unique Oil Seal Design Rotary Paddle Level Switch Simple Structure And Convenient Installation

NYZX series anti rotation material level switch uses a permanent magnet motor to drive the blade to rotate. When the detected material rises to the blade position, the blade rotation is blocked, and the resistance is transmitted to the detection device in the junction box. The detection device outputs a switch signal outward, and cuts off the power supply to stop the blade from rotating. When the material level drops, the resistance of the blade disappears, and the detection device recovers to the original state by relying on the tension of the spring. The spring tension is adjusted according to the specific gravity of different materials. When the specific gravity is large, the spring tension is adjusted to the strong or the strongest, otherwise it is adjusted to the weak or the weakest.

Design Features of Unique Oil Seal Design Rotary Paddle Level Switch Simple Structure And Convenient Installation

◎ unique oil seal design can prevent dust from penetrating along the shaft;

◎The motor of imported resistance rotary switch has reliable performance, and double sealed bearings can ensure long-term continuous operation;

◎ Simple structure and convenient installation;

◎ stable and reliable, and the torque can be adjusted;

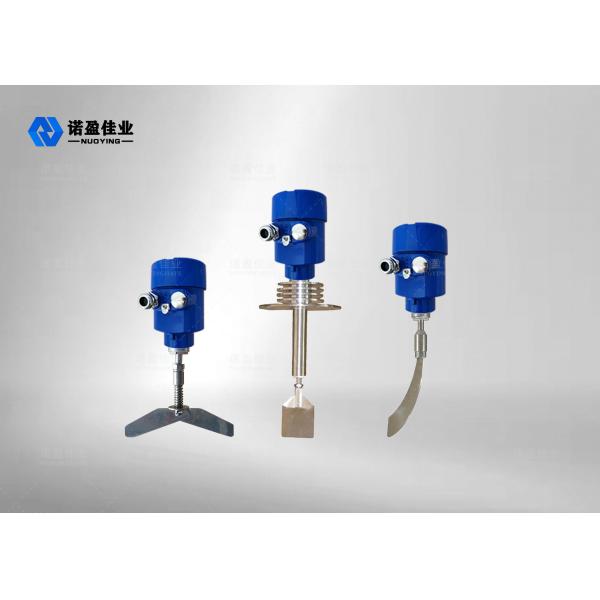

◎ a variety of probe forms can be applied to different occasions.

Technical Parameters of Unique Oil Seal Design Rotary Paddle Level Switch Simple Structure And Convenient Installation

Typical application Powder
product model NYZX
Probe Rod Material 304(optional)
Probe Rod Length 100mm(The length can be customized)
Power Supply 24VDC
Process Temperature -40~+80℃(>+80℃can be customized)
Process Pressure Atmospheric pressure
Process Connection screw thread(optional)
Electric shock capacity 250V 5A(SPDT Single pole double throw)
Medium density ≥0.4g/cm3
moment of force 10kg.m(1N.m)
Insulation impedance ≥100MΩ(500VDC)
levels of protection IP67
Explosion-proof grade Exia II CT6(See certificate for details)


※Note:The product can be customized according to the specific requirements of user
