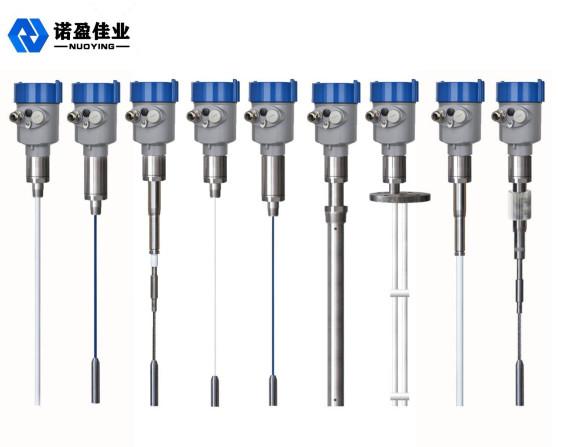

20m RF Admittance Level Transmitter For Petrochemical Coal Metallurgy Water Industry
20m RF Admittance Level Transmitter For Petrochemical Coal Metallurgy Water Industry
20m RF Admittance Level Transmitter For Petrochemical Coal Metallurgy Water Industry
20m RF Admittance Level Transmitter For Petrochemical Coal Metallurgy Water Industry
20m RF Admittance Level Transmitter For Petrochemical Coal Metallurgy Water Industry
20m RF Admittance Level Transmitter For Petrochemical Coal Metallurgy Water Industry
Specifications
Brand Name :
NUOYINGJIAYE
Model Number :
NYSP-Z16
Certification :
CE,Exia II
Place of Origin :
CHINA
MOQ :
1 pcs
Price :
$400-$1600 /pc
Payment Terms :
T/T
Supply Ability :
1200 pcs / month
Delivery Time :
5-10 working days
Packaging Details :
carton, 80cm x 17cm x 24cm (Standard)
Typical Application :
Liquid (Corrosive,Conductive,Sticky) Split installation
Product Model :
NYSP-Z16
Antenna Type :
Insulative Hard Rod (PTFE optional)
Antenna Material :
PTFE, 304, 316
Meaturing Range :
3m, 20m (customized)
Process Temperature :
-40 ~ +260°C
Process Presure :
-0.1 ~ 4.0MPa
Power Input :
4 ... 20 mA /HART/RS485/Modbus
Signal Output :
24V DC
Description

High Sensitivity RF Admittance Level Meter For Petrochemical Coal Metallurgy Water Industry

RF Admittance Level Meter Anit-Hanging Material interference Operating Principle

RF Admittance Level Meter is a continuously level measuring instrument based on the principle of radio frequency admittance. It provides the advantages of high stability and sensitivity. It is widely used in various complex applications. Comparing to traditional capacitive level meter, it adopts modulization design, and can be easily set up. After installation, it can keep working without maintenance.

Further more, by adding Driving-Shield and chopper circuit in RF Admittance tech, it can actualize separate measurement of impedance and capacitance. In this way, RF Admittance Level Meter can avoid being misguiding by hanging material affects during measurement process. That ensures the measuring accuracy.

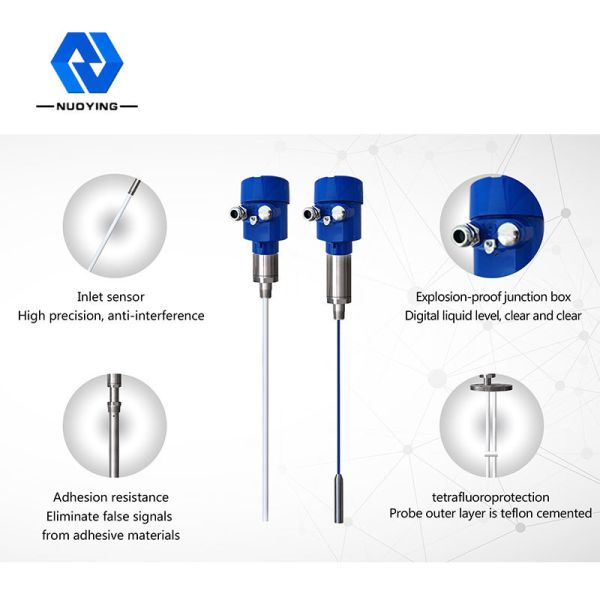

RF Admittance Level Meter design feature

  • Anti Hanging Material: Special designed Driving- Shield and chopper circuit to improve the ability of anti-hanging material situation.
  • Power Supply: Working range 13~24V DC
  • Adaptability: Probe process temperature: -100℃~800℃
    No dead zone in measuring. Maximum measurement range up to 100 meters, or further, even several hundred meters.
  • Huge advantage in measuring sticky material level.
  • Stability: Reliable and Stable output, withstand the effects of dust, blanking, steam, crystallization and wax deposit.
  • Maintenance Free: No moving and wear parts, no need to be frequently cleaned, maintained or debugged.

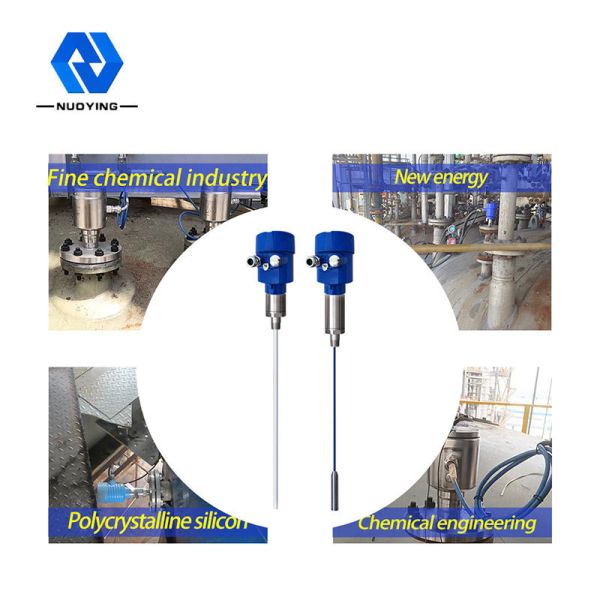

Typical Application Liquid (Corrosive,Conductive, Electrodeionization Sticky, Deep Well, Ultra-long measurement range)

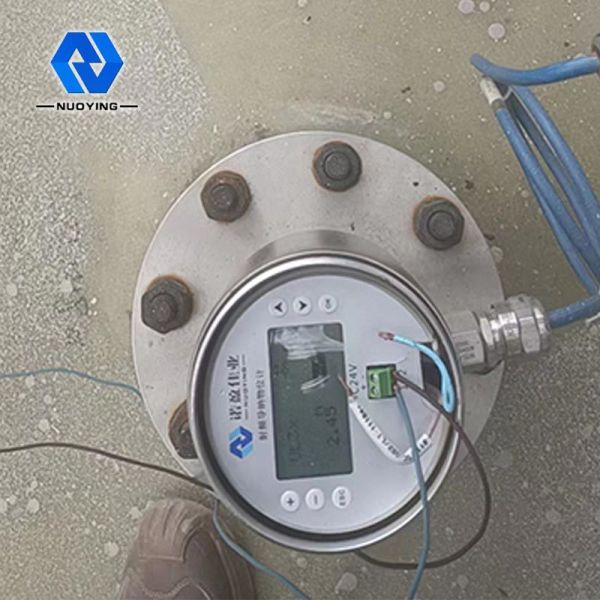

Split installation
Product Model NYSP-Z16
Antenna Type Insulative Hard Rod (PTFE optional)
Antenna Material PTFE, 304, 316
Measuring Range 3m, 20m (customized)
Measuring Accuracy 0.05% ~0.1%F.S
Process Temperature -40 ~ +260°C
Process Presure -0.1 ~ 4.0MPa
Process Connection 3/4”BSPT Strew Thread, Flange (optional)
Electrical Interface M20 x 1.5, 1/2" NPT
Supply Power 24VDC
Signal Output 4-20 mA /HART/RS485/Modbus
Protection Grade IP67
Explosion-proof Grade Exia II CT6 (optional, details in certificate)

Note: Products can be customized upon requirement.

20m RF Admittance Level Transmitter For Petrochemical Coal Metallurgy Water Industry
