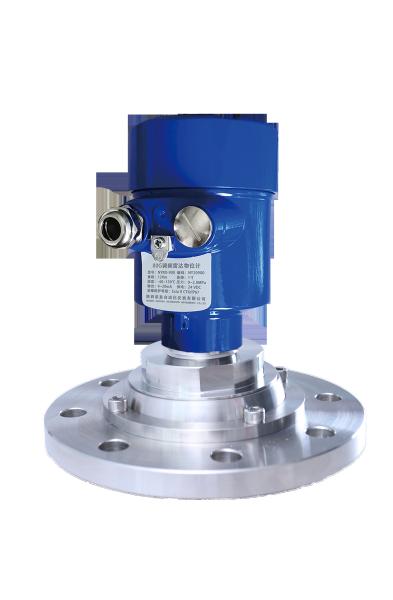

Measuring High Temperature Gas Steam 80G Radar Level Meter 76GHz~81GHz 0.08~150m

Millimeter wave electromagnetic wave: usually the frequency domain wavelength of 30-300ghz is 1~10 mm) of electromagnetic wave called millimeter wave, which is located in the wavelength range of the intersection of microwave and far-infrared wave three, so it has the characteristics of two kinds of spectrum. The 76-81ghz band is by far the least understood and applied development region.

Dsign feature

♦Good transient performance: Based on self-developed CMOS millimeter wave RF chip, achieve tighter RF structure, higher signal-to-noise ratio.

♦5GHz working bandwidth, so that the product has higher measurement resolution and measurement accuracy.

♦Coherence, dipole seismic water generation driven by coherent current or nonlinear differential frequency effects of coherent laser pulses

♦Low energy; The photon energy of millimeter-wave is only a few millielectron volts, and the phenomenon of X-ray ionization and destruction of the substance to be detected will not occur, so it is not easy to destroy the substance to be detected.

♦Strong penetration, for non-polar material has a strong penetration, many non-metallic non-polar materials in this band ray absorption is small, therefore, can be used to detect the internal structure of materials. For example, ceramic/cardboard/plastic/foam etc. are transparent to the electromagnetic radiation in this band and can also be used for airport/station security monitoring, such as detecting machinery/explosives and drugs, or for circuit board welding detection.

♦Easy to be absorbed by polar molecules, this band has less scattering in non-uniform substances, can detect and measure the content of water vapor. They can also be analyzed by their characteristic spectrum to study material composition or quality control.

Technical parameter

If you have any other further questions, please contact us. We will process your requests as soon as possible.
