Specifications
Brand Name :
NUOYINGJIAYE
Model Number :
NYRD808
Certification :
CE/ExiaⅡCT6 Ga,ExdⅡCT6 Gb
Place of Origin :
Xi'an, Shaanxi，China
MOQ :
1 pcs
Price :
$450 to $1700 /pcs
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 pcs/ pre month
Delivery Time :
7 working days
Packaging Details :
Carton, 60cm×30cm×30cm
Application :
liquids,dust,solids
Item No. :
NYRD808
Antenna form :
Bar type, water drop type
Antenna material :
PTFE、304、316
Measuring range :
35m,40m,80m
Accuracy of measurement :
0.05%~0.1%F.S
Description

Ultrasonic open channel digital water fule flow meter

Description Ultrasonic open channel digital water fule flow meter

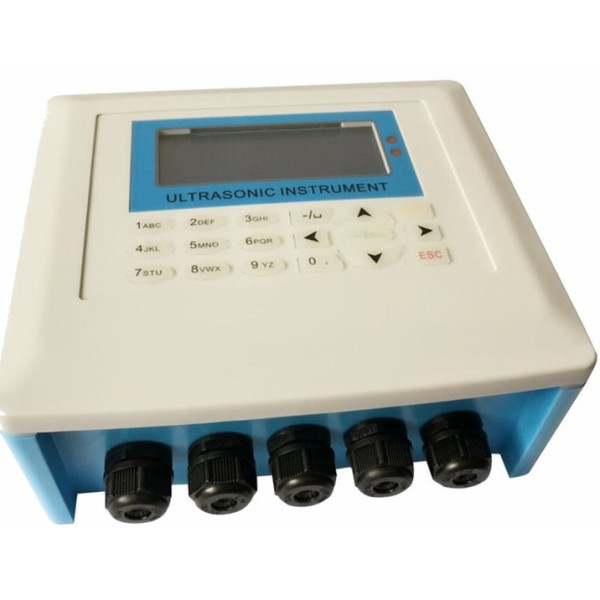

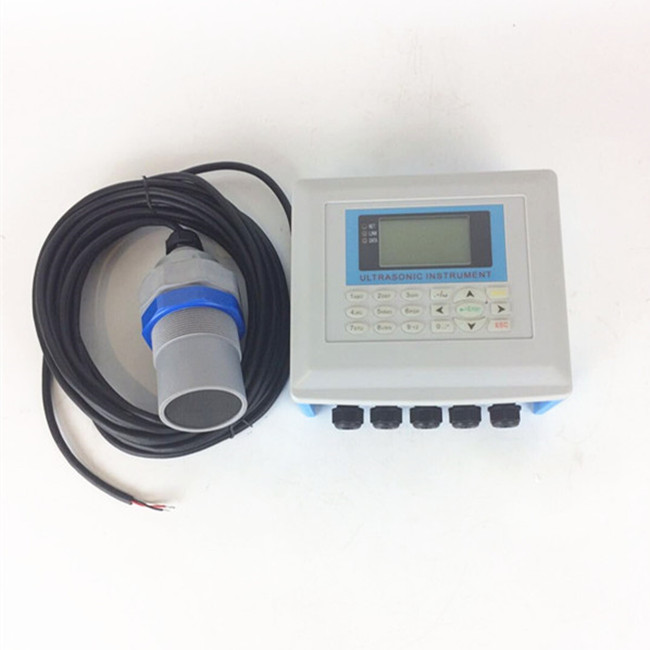

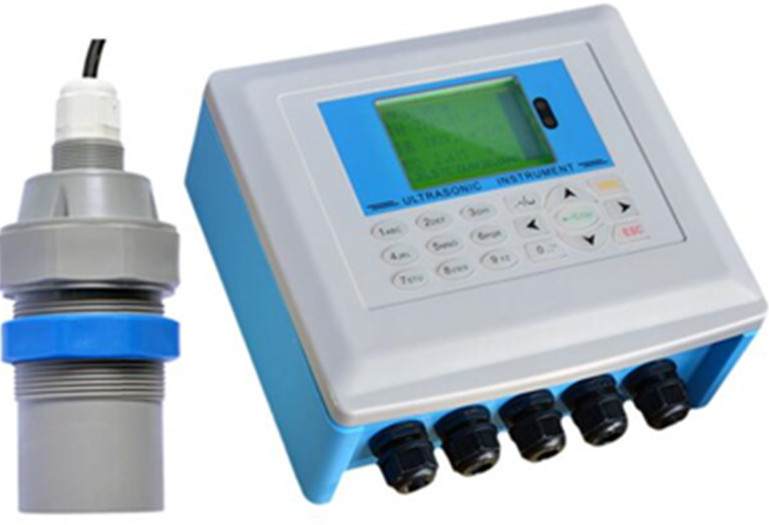

It consists of two elements, a host, which has display and an integral keypad for programming, and a transducer, which must be mounted directly above the surface to be measured. It can be widely applied to the environmental protection, water treatment, irrigation, chemical, and other industries.

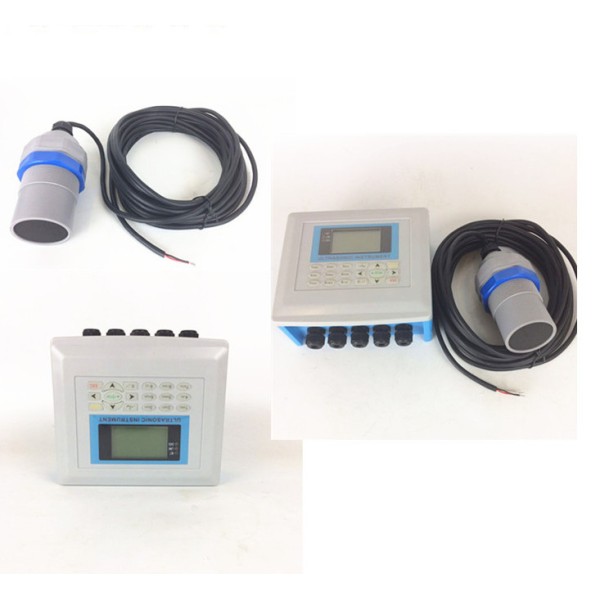

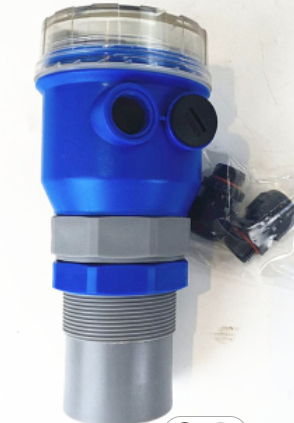

Detailed Images Ultrasonic open channel digital water fule flow meter

Specification Ultrasonic open channel digital water fule flow meter

Sense Range 3m; 5m; 8m; 10m; 12m; 15m; 20m; 25m; 30m
Blind Area <0.3m-1.5m
Accuracy ±0.3%F.S
Display LCD
Resolution 1mm
Keyboard 16 key
Output

4~20mA(standard); 0~20mA; 1~5V; 0~5V; 0-10V; 1-10V; RS485; HART

4 relays (Contact capacity AC:5A 250V DC:10A 120V)
Consumption <8W
Material ABS
Dsiplay Screen Dimension 240mm×184mm×110mm

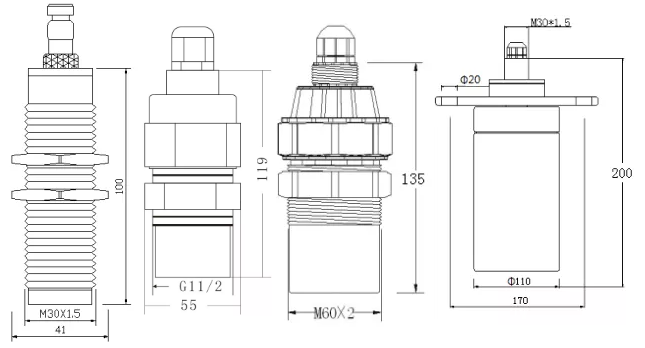

Sensor Size

Dimension size as bellow pictures

Φ41×100×Φ30 (for range:1 m);

Φ55mm×119mm×G1 1/2 (for range:3 m); Φ74mm×135mm×M60 (for range:3~15 m)' Φ109mm×200mm×M30 (for range: 16~35 m)
Installation Size G1 1/2(3m); M60x2 (5-15m); M30X1.5 (20-30m)
Sensor Cable 10m (optional)
Operating Surroundings normal temperature, normal pressure
Protection Degree

IP53 for instrument

IP65 for sensor (optional)

Features Ultrasonic open channel digital water fule flow meter

Low sensor power consumption, easy installation and orientation, application wildly ,standard 4-20mA output, use it separately as liquid level meter
Easy operation, widely used in thin plate right-angle weir, triangular weir, parshall flume and so on. When power off, it can save 10 years.
Base on user's demand, it can attach flash disk, micro printer and storage battery.

Applications Ultrasonic open channel digital water fule flow meter

Electricity, mines, factories, urban sewage waterways, control systems and other related fields, such as: Sedimentation pool, Coal washing process, Wastewater treatment, etc.

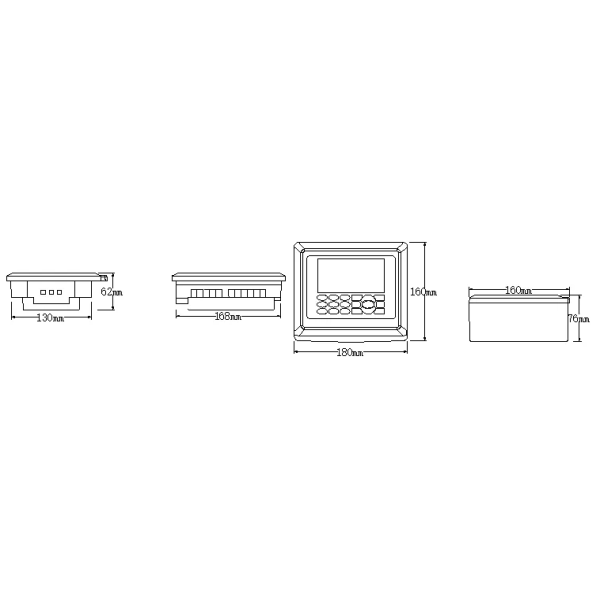

Dimension Ultrasonic open channel digital water fule flow meter

Related products

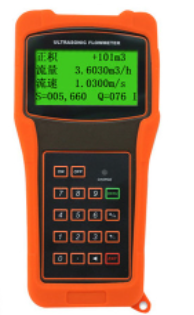

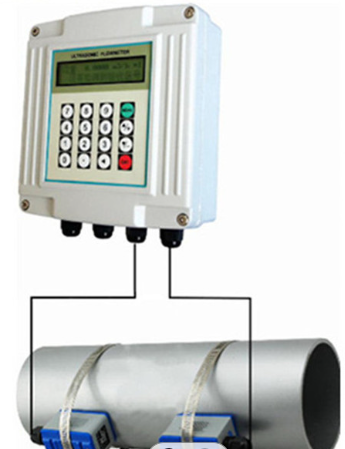

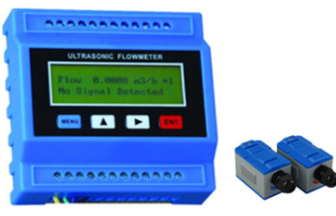

Ultrasonic level meter Radar level meter Ultrasonic Flow Meter Mass flow meter

Ultrasonic flow meter Ultrasonic flow meter Turbine flow meter

FAQ

Q:How long will you reply me?

A:We will contact you as soon as possible but within 12 hours

Q: Can I get some samples?

A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.

Q: How soon can you arrange your production?

A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.

Q: What's delivery time?

A: It usually takes about 3-5 working days for small order and 10-15 days for big order.

Q:How do you control your quality ?

A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).

Q: What certificates do you have ?

A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.

Q:Could I visit your factory?

A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.

Q: What's your warranty terms?

A: We offer 12 months warranty time.

Q:can you provide OEM & Customized service?

A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.

If you have any other further questions, please contact us. We will process your requests as soon as possible.
