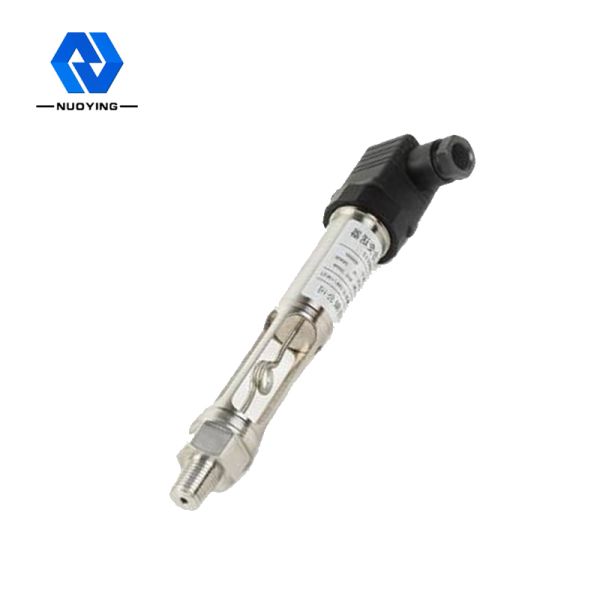

10-30V Air Compressor Pressure Sensor Transmitter Hydraulic Water Pressure Transmitter
10-30V Air Compressor Pressure Sensor Transmitter Hydraulic Water Pressure Transmitter
10-30V Air Compressor Pressure Sensor Transmitter Hydraulic Water Pressure Transmitter
10-30V Air Compressor Pressure Sensor Transmitter Hydraulic Water Pressure Transmitter
10-30V Air Compressor Pressure Sensor Transmitter Hydraulic Water Pressure Transmitter
10-30V Air Compressor Pressure Sensor Transmitter Hydraulic Water Pressure Transmitter
10-30V Air Compressor Pressure Sensor Transmitter Hydraulic Water Pressure Transmitter
10-30V Air Compressor Pressure Sensor Transmitter Hydraulic Water Pressure Transmitter
Specifications
Brand Name :
NUOYINGJIAYE
Model Number :
NT-93420-IV
Certification :
CE,SIL3
Place of Origin :
Xi'an,China
MOQ :
5pcs
Price :
$25.0~$55.0
Payment Terms :
T/T
Supply Ability :
1000pcs/pre month
Packaging Details :
30*30*30cm Carton
Media :
Air/Water/refrigerate liquid
Application :
Hydraulic and pneumatic
Accuracy :
0.5%FS
Output signalwire :
4-20mA,0-10V,2wire
Power supply :
10~30VDC
Operating temperature :
-10~80℃
Process connection :
G1/4
Description

4-20ma Air Compressor Pressure Sensor/Hydraulic Water Pressure Transmitter

10-30V Air Compressor Pressure Sensor Transmitter Hydraulic Water Pressure Transmitter10-30V Air Compressor Pressure Sensor Transmitter Hydraulic Water Pressure Transmitter

10-30V Air Compressor Pressure Sensor Transmitter Hydraulic Water Pressure Transmitter10-30V Air Compressor Pressure Sensor Transmitter Hydraulic Water Pressure Transmitter

4-20ma Air Compressor Pressure Sensor/Hydraulic Water Pressure Transmitter Description:

4-20ma Air Compressor Pressure Sensor/Hydraulic Water Pressure Transmitter is a ceramic pressure sensor that is temperature compensated and laser trimmed for accurate span and offset calibration. The typical advantage is the compact size, which make it convenient to be installed in small room.
Output: A4=4~20mA; V05=0.5~4.5V; V0=0~5V; V1=1~5V; V10=0~10V
Measurement range
Unit of measure: K=kPa; M=MPa; P=psi; B=bar
Accuracy: 0.5=0.5%F.S; 1=1.0%F.S
Electrical connector: P=Packard; D=Din43650C; M=M12; C=Cable
Pressure connection: G=G1/4; N=NPT1/4; R=R1/4; U=7/16-20UNF; M=M20×1.5; N2=NPT1/2; G2=G1/2; R2=R1/2
Cable length(m)

4-20ma Air Compressor Pressure Sensor/Hydraulic Water Pressure Transmitter Parameters:

General Value
Measurement Range -1~0......100bar,0~2......3bar,0~4......60bar(normal range),0~61......600bar
Overload Pressure 1.5 times of full scales
Burst Pressure 3 times of full scales
Accuracy ±0.5%F.S,±1.0%F.S
Long Term Stability Typical value: 0.5%F.S Maximum: 1%F.S
Working Temperature -40℃~100℃
Compensated Temperature -10℃~80℃
Storage Temperature -50℃~125℃
Medium Compatibility All corrosive medium compatible with 1Cr18Ni9Ti stainless steel and ceramic
Output Mode Two-wired Three-wired
Output 4~20mA 0.5~4.5V 0/1~5V 0~10V
Power Supply 10~30VDC 5VDC 10~30VDC/AC 12~30VDC/AC
Load Resistance (U-10)/0.02(Ω) >100K(Ω)
Insulation >100M(Ω)@50V
Electrical Connection Packard, DIN43650C, DIN72585, M12, Cable
Protection Grade IP67
Pressure Connection Male G1/4,NPT1/4,7/16-20UNF,M20×1.5,G1/
(Female and other connection is available on request)
Response Time 10ms
Pressure Form Gauge pressure
Electromagnetic Compatibility Electromagnetic transmit: EN50081-1/-2; Electromagnetic sensitivity: EN50082-2
