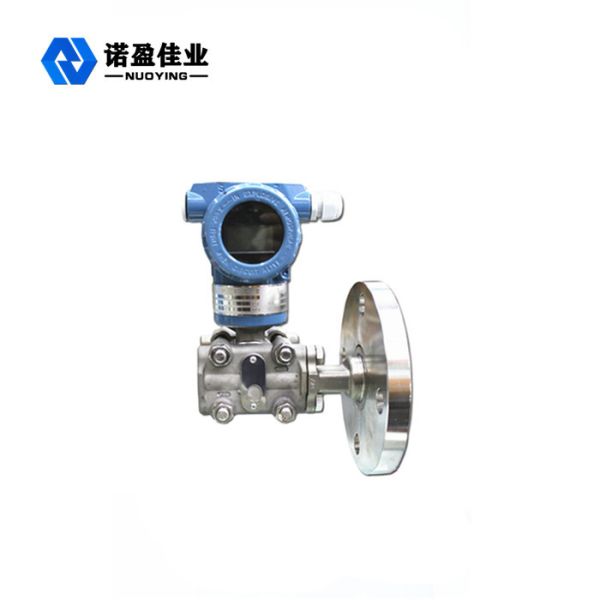

CE Smart Differential Pressure Transmitter 12.5-45VDC Two Wire
CE Smart Differential Pressure Transmitter 12.5-45VDC Two Wire
CE Smart Differential Pressure Transmitter 12.5-45VDC Two Wire
CE Smart Differential Pressure Transmitter 12.5-45VDC Two Wire
Specifications
Brand Name :
NUOYINGJIAYE
Model Number :
NP-3051DP
Certification :
Explosion-proof certificate,SIL3,CE
Place of Origin :
Xi'an,China
MOQ :
1pc
Price :
$265.0~$480.0
Payment Terms :
T/T
Supply Ability :
500pcs/pre month
Packaging Details :
40*30*30cm Carton
Pressure Range :
0-700Kpa
Accuracy :
0.2%FS
Material :
316sensor
Analog output :
two wire 4-20mADC
Power supply supply voltage :
12.5-45VDC
Capability change :
Less than 0.16cm3
Medium temperature :
-40~104℃
Description

Liquid Smart Differential Pressure Transmitter Sensor

Liquid Smart Differential Pressure Transmitter Sensor Description:

Liquid Differential Pressure Transmitter Sensor is the result of a combination of self-developed anti-jamming, high stability digital circuits and the introduction of foreign Single crystal resonant silicon sensor technology. Its performance much better than our domestic metal capacitive sensor technology transmitter, and main show in the field zero stability and long-term operation stability, and rapid response.

Liquid Smart Differential Pressure Transmitter Sensor Parameters:

Range code Range Measuring range
Min. Max.
4 0.374KPa 37.4KPa -37.4~37.4KPa
5 1.868KPa 186.8KPa -186.8~186.8KPa
6 6.9KPa 690KPa -690~690KPa
7 20.68KPa 2068KPa -2068~2068KPa

Output Analog output: two -wire 4-20mADC
Digital output: two -wire 4-20mADC and superimposing variable digital signal accord with HART
Power supply supply voltage 24VDC
Limit load Max load resistor Rmax in loop decided by the supply voltage, see the below drawing. HART PROTOCOL require the load resistor not less than 250Q,not more than 600Q
Communication distance Max. 1.5Km, multi-address communication can connect 15 smart transmitters Max.
Display 4 digital display,5 digit LCD display, pointer type.
Explosion-proof ExiallCT5;explosion suppression type
Zero offset Can positive transfer or negative transfer, but can not overstep the utmost value
Temperature ambient temperature -40-85°C(When choose LCD : -20- 70©
Medium temperature -40 〜104°C
Static pressure and single side overpressure 3.45KPa(absolute pressure)〜31.2MPa (gauge pressure)
Relative humidity 5 〜98%RH
Run-up time less than 5 sec.
Capability change Less than 0.16cm3
Damp adjust 0.20 〜25 second
Malfunction alarming If occur malfunction, automatism diagnose function will output 3.9 or 21.0mA
Configuration protection To avoid the datas are modified random, can utilize software or protect switch lock the record data

Liquid Smart Differential Pressure Transmitter Sensor Features:

Single crystal resonant silicon sensor technology
Super performance, use to measure pressure, differential pressure and temperature..
Accuracy: ±0.075%~±0.1%F.S/±0.2%F.S
Stability: ≤0.2%
Standard 4~20mA,RS-485 communication interface
Support upgrade of basic scene control technique
Little temperature effect
Little static effect
Overload can reach 2 times

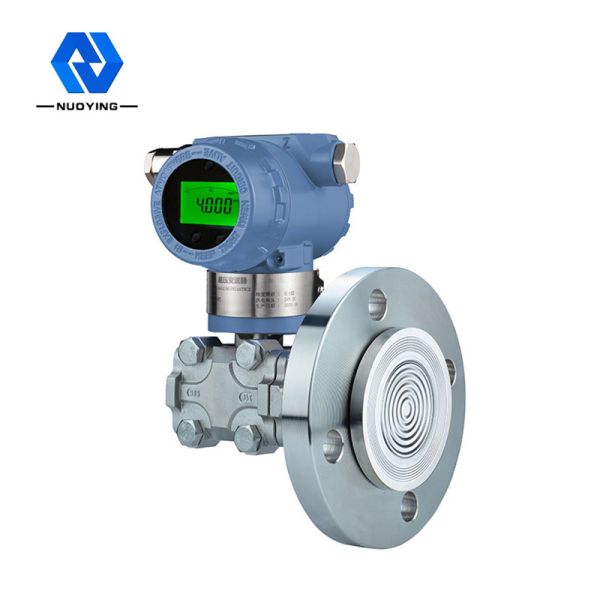

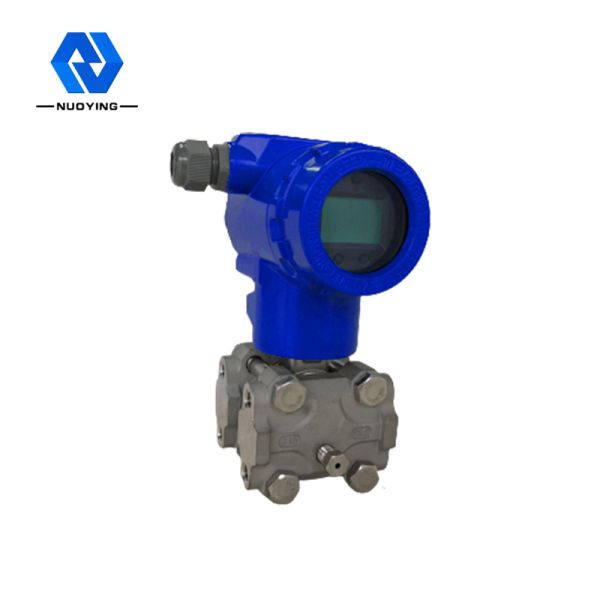

CE Smart Differential Pressure Transmitter 12.5-45VDC Two WireCE Smart Differential Pressure Transmitter 12.5-45VDC Two Wire

Liquid Smart Differential Pressure Transmitter Sensor Application:

Compatible with 316LSS,noncorrosive liquids.
Shipping and aviation industry.
Hydraulic pressure and pneumatic control system
Apply in Petroleum industry, chemical industry, electric power, metallurgy, hydrology etc process control.
