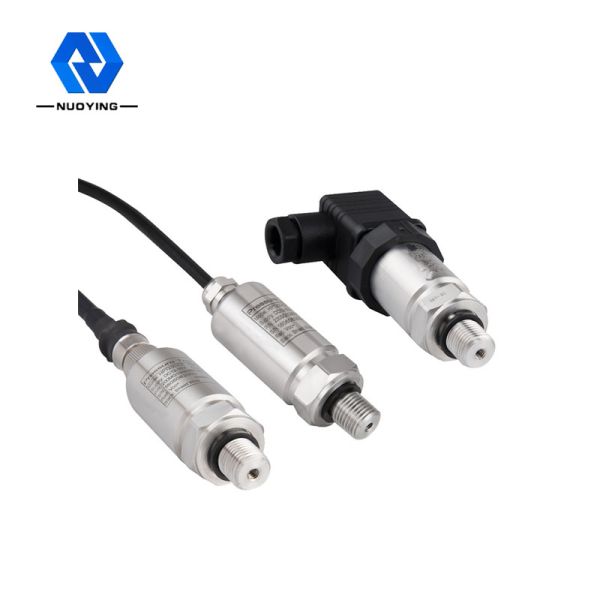

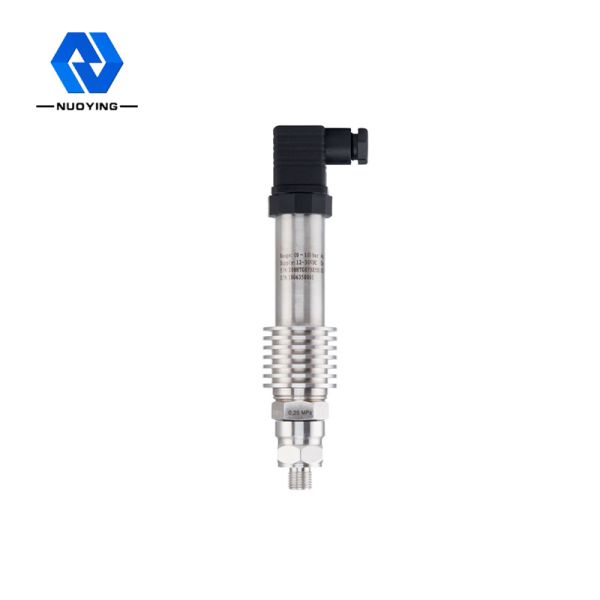

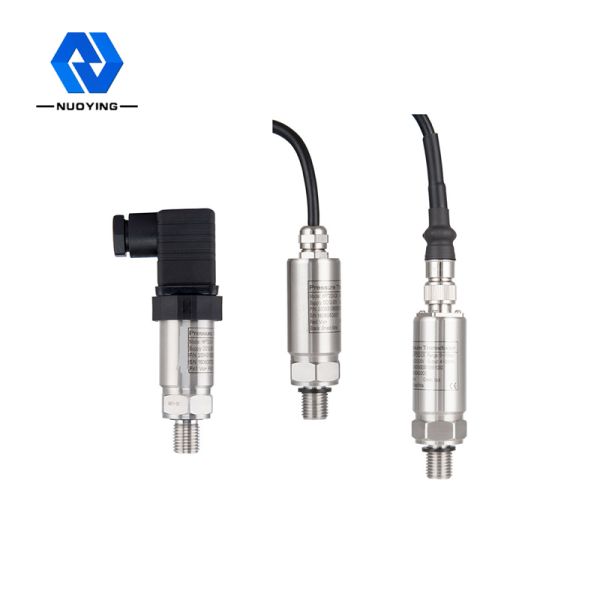

12VDC-30VDC Liquid Pressure Transmitter 316L Stainless Steel
12VDC-30VDC Liquid Pressure Transmitter 316L Stainless Steel
12VDC-30VDC Liquid Pressure Transmitter 316L Stainless Steel
12VDC-30VDC Liquid Pressure Transmitter 316L Stainless Steel
12VDC-30VDC Liquid Pressure Transmitter 316L Stainless Steel
12VDC-30VDC Liquid Pressure Transmitter 316L Stainless Steel
12VDC-30VDC Liquid Pressure Transmitter 316L Stainless Steel
12VDC-30VDC Liquid Pressure Transmitter 316L Stainless Steel
12VDC-30VDC Liquid Pressure Transmitter 316L Stainless Steel
12VDC-30VDC Liquid Pressure Transmitter 316L Stainless Steel
Specifications
Brand Name :
NUOYINGJIAYE
Model Number :
NP-93420-I
Certification :
Explosion-proof certificate,SIL3
Place of Origin :
Xi'an,China
MOQ :
1pc
Price :
$45.0~$180.0
Payment Terms :
T/T
Supply Ability :
1000pcs/pre month
Packaging Details :
20*15*15cm Carton
Output :
4-20mA/0-5V/RS485
Supply Power :
12~30Vdc/7-30V
Accuracy :
0.25%FS
Working Temp :
-20℃~+85℃
Overload Pressure :
200% F.S.
Burst Pressure :
300% F.S.
Medium compatible :
316L SST, PTFE,Titanium Alloy Optional
Warranty :
one year
Description

Low Cost Liquid Pressure Sensor Transmitter

12VDC-30VDC Liquid Pressure Transmitter 316L Stainless Steel

Low Cost Liquid Pressure Sensor Transmitter Description:

Low Cost Liquid Pressure Sensor Transmitter use high quality imported U.S.A MEAS TE piezoresistive pressure sensor, ensure that the factory accuracy better than 0.25%F.S. and the service life is 2-3 times as long as the similar products. It is widely used for pressure measure and control of petroleum, chemi-industry, metallurgy, power station and hydrology, etc.

Low Cost Liquid Pressure Sensor Transmitter Technical Parameters:

12VDC-30VDC Liquid Pressure Transmitter 316L Stainless Steel Pressure range: -1-0-0.1 bar... 1000 bar optional
Output: 4~20mA,0~5V/0~10V .Hart protocol
Power supply: 12VDC-30VDC
Pressure port: G1/4", 1/8"NPT, M20*1.5 or by customized
Accuracy : 0.25%F.S; 0.5%F.S optional
Working temperature: -40°C~+85°C
Certificate: CE.Exiall CT6 Ga ,ATEX,

12VDC-30VDC Liquid Pressure Transmitter 316L Stainless Steel

Feature Advantage Benefit
It offers process connection ,electronical connection range accuracy options All the standard industry output signals, the most common international process connections and a wide number of electrical connections It can be suited to the widest range of applications.
Lightning surge reverse protection Short-circuit conditions to protect prevent reverse connection; Instant voltage overload protection Running reliable and longlasting in harsh condition
The vent with a filter Breath atmospher and protect moisture enter transducer Without maintenance, even in the most humid environments.
USA TE Chip,Digital PCB board High accuracy 0.25%,Small temperature drift,automatically compensates for changes in barometric pressure Stability,keep sensor running longer by reducing downtime and maintenance costs
Lowe-Power output signals Low-power output signals for battery-operated or solar measuring systems available ,lowest power supply is 3.3V energy-saving and environmental protection
316L diaphragm Anti-corrision ,wear resistance , shock resistance Make it suitable for immersion for a long time in most industrial liquids
Suction water filter design 8 pore design Anti-blocking Prevent plugging rate increases more than 80% Simple maintenance ,easy to cleaning and installation

Low Cost Liquid Pressure Sensor Transmitter Features:

12VDC-30VDC Liquid Pressure Transmitter 316L Stainless Steel
