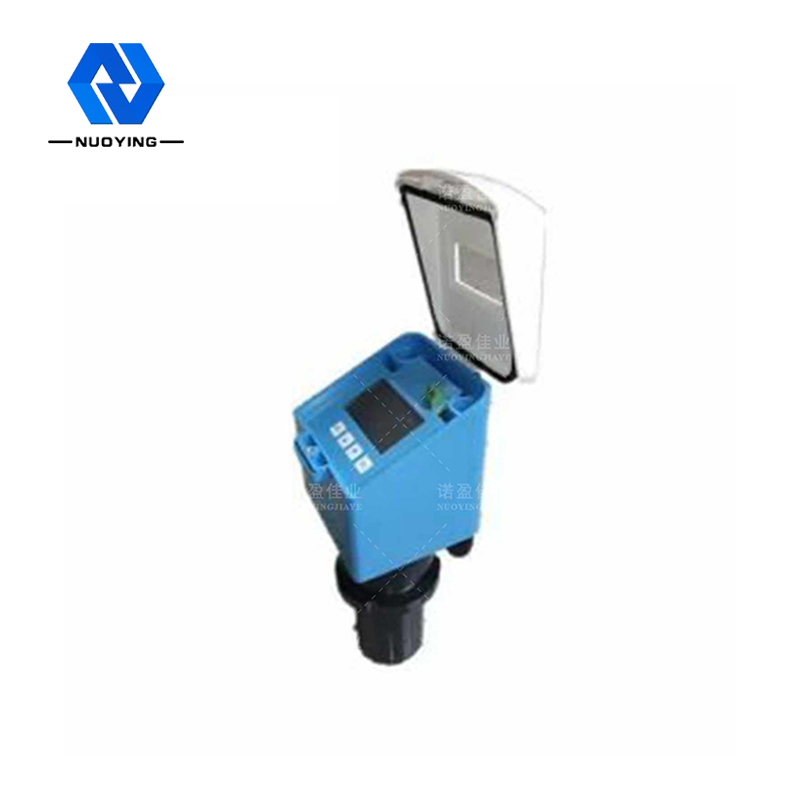

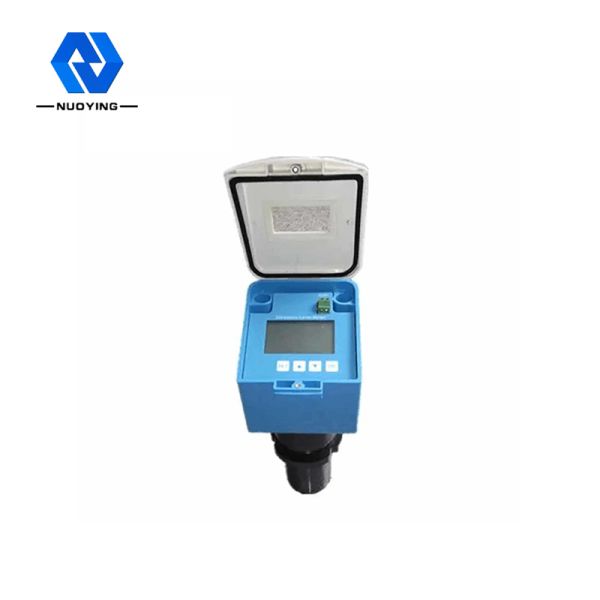

Ultrasonic Digital Level Transmitter 220VAC 24VDC 20m-30m
Ultrasonic Digital Level Transmitter 220VAC 24VDC 20m-30m
Ultrasonic Digital Level Transmitter 220VAC 24VDC 20m-30m
Ultrasonic Digital Level Transmitter 220VAC 24VDC 20m-30m
Specifications
Brand Name :
Nuoying JIAYE
Model Number :
NYCSUL-501
Certification :
Explosion proof certificate
Place of Origin :
China
MOQ :
1 set
Price :
1USD - 900USD
Payment Terms :
T/T
Supply Ability :
Unlimited supply
Delivery Time :
5-8 working days

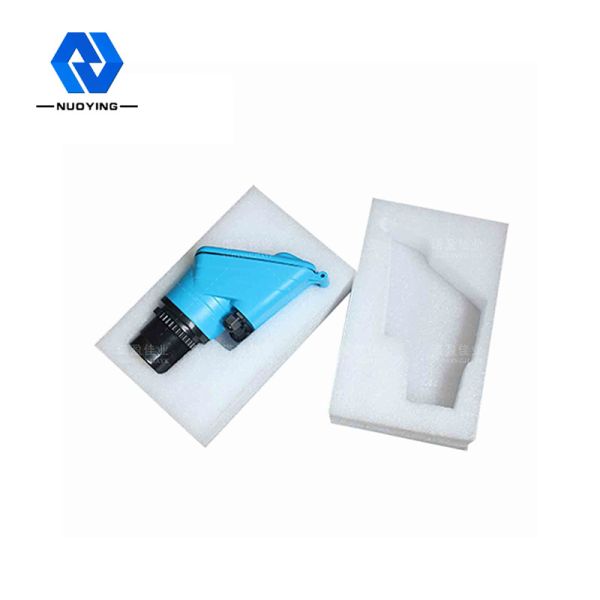

Packaging Details :
30cm×25cm×20cm
Typical application :
Liquid level measurement
ProbeMaterial :
PP/PVC/PTFE/304(optional）
accuracy :
＜0.25%
Measuringangle :
10°
Power supply :
24VDC、220VAC
Process pressure :
Normal pressure
Signal output :
4...20mA/HART/RS485...
Display :
LCD
Description

Digital Ultrasonic Liquid Fuel Level Meter Transmitter Level Sensor

Ultrasonic Level Transmitter

The Ultrasonic Level Measurement is mounted on top of the vessel. Under the control of the electronic unit, the probe emits ultrasonic wave pulse to measured medium. The sound wave is reflected by the surface of medium, a part of reflection echo is received by the probe and converted into electrical signal. From the emission of the ultrasonic wave to the new reception,the time is direct proportion to the distance from the probe to the measured medium. The electronic unit detects the time and calculates out the easured distance according to the known sound velocity. Use subtraction to obtain the value of medium position. It is widely used in open pipe, oil tank, pump station, water tower, dam,open channel, difference between levels etc.

Ultrasonic Level Transmitter Technical Parameters

Product Name

Ultrasonic Level Sensor

Measuring Range

20~30m(liquid); 10~15m(solid)

Blind Area

0.6~0.8m

Precision

0.2% of the full measuring range(in the air)

Display Resolution

1cm

Current Output

4~20mA

Output Resolution

0.03% of full measuring range

Output Load

0~600Ω

Relay Output

toplimit and lower limit control

Relay Specification

5A 250VAC/30VDC

Parameter Set

3 sensing buttons

Medium Temp

-45°C~ 95°C

Detecting Period

1 S

Installation

flange or support

Acousticwave Beam Angle

8°(3db)

Pressure Range

±0.3MP

Note: customized on demand

Ultrasonic Digital Level Transmitter 220VAC 24VDC 20m-30m

Ultrasonic Level Transmitter Design Features

  • Reasonable design, excellent performance, low unit price, simple structure and high installation convenience;
  • Ultrasonic uses a small-angle probe with high transmit power and high sensitivity； ◎ Arbitrary point upper and lower limit setting, alarm setting, can be used for continuous liquid measurement and liquid level control.
