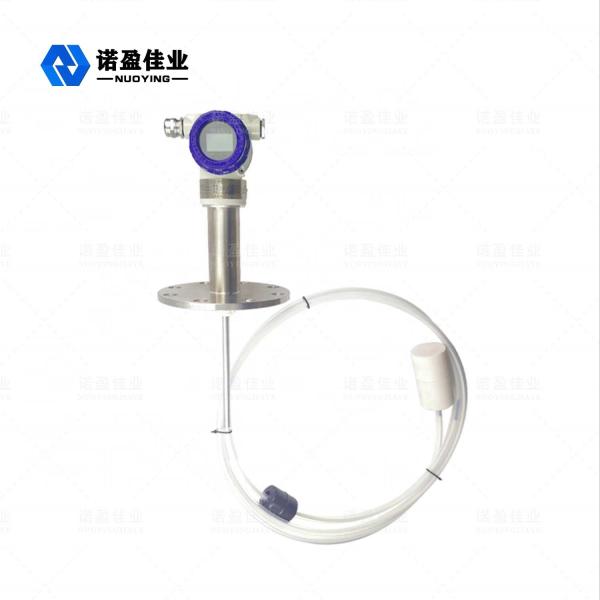

Magnetostrictive Liquid Level Meter

Magnetostrictive Liquid Level Meter Operating Principle

Magnetostrictive liquid level sensor (hereinafter referred to as sensor, including common type and flameproof type) is used for continuous measurement of liquid level and interface. In addition, magnetostrictive liquid level sensors are also widely used in various fields, including industrial measurement and control of liquid levels in various liquid tanks such as petroleum, storage of chemical raw materials, industrial processes, biochemistry, medicine, food and beverage, tank farm management and underground storage of gas stations, dam water level, reservoir water level monitoring and sewage treatment, etc.

Magnetostrictive level gauge consists of three parts: probe rod, circuit unit and float. To measure, the circuit unit generates pulses of current that travel down the magnetostrictive line and generate a circular magnetic field. A float is arranged outside the probe rod, and the float moves up and down along the probe rod with the change of liquid level. The float generates a magnetic field at the same time because it is fitted with a set of permanent magnets. When the current magnetic field meets the float magnetic field, it produces a "twisting" or "return" pulse. The time difference between the "return" pulse and the current pulse is converted into pulse signals to calculate the actual position of the float and measure the liquid level.

Magnetostrictive Liquid Level Meter Technical Parameter

※ Note: Products can be customized according to the specific requirements of users!

Magnetostrictive level gauge antenna using PTFE material, PTFE (PTFE or PTFE), commonly known as "plastics king", is made up of tetrafluoroethylene by the polymerization of polymer compounds, it has excellent chemical stability, high corrosion resistance, sealing, lubrication is not sticky, electric insulation and good anti-aging endurance, PTFE has the following features:

• High temperature resistance -- operating temperature up to 250℃.
• Low temperature resistance -- good mechanical toughness; Even when the temperature drops to -196℃, 5% elongation can be maintained.
• Corrosion resistance - inert to most chemicals and solvents, resistant to strong acids and bases, water and various organic solvents.
• Weather resistance - has the best aging life of plastics.
• High lubrication - the lowest friction coefficient of solid materials.
• Non-adhesion - is the minimum surface tension in a solid material and does not adhere to any substance.
• Non-toxic -- with physiological inertia, as artificial blood vessels and organs implanted in the body for a long time without adverse reactions.

Magnetostrictive Liquid Level Meter Typical Application And Installation

• Measure the level of horizontal storage tanks: top mounted
• For production control, side to side installation
• Used for middle liquid level control in production: side to side installation
• Application and installation of large vertical oil tank

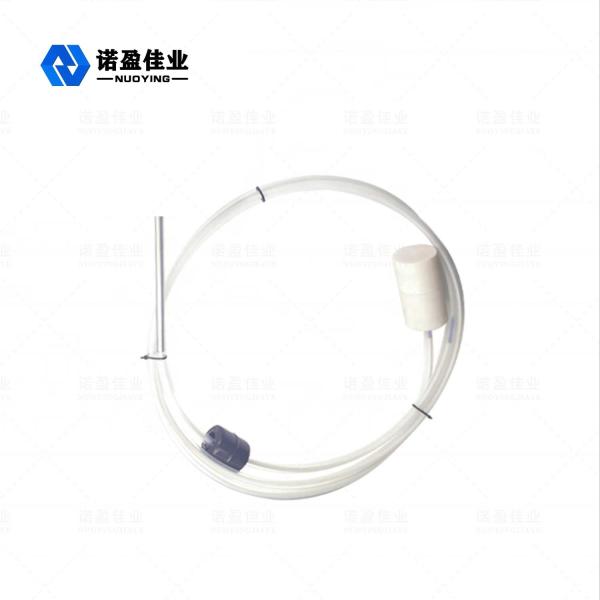

• Application on vertical oil tanks: soft cable top mounting
• Matching application with magnetic plate level meter
• Application and installation of asphalt storage tank
