IP68 Electromagnetic Water Meter DN40 DN300 High Measurement Accuracy
IP68 Electromagnetic Water Meter DN40 DN300 High Measurement Accuracy
IP68 Electromagnetic Water Meter DN40 DN300 High Measurement Accuracy
IP68 Electromagnetic Water Meter DN40 DN300 High Measurement Accuracy
Specifications
Brand Name :
NUOYINGJIAYE
Model Number :
NYLD-S
Certification :
Explosion-proof certificate
Place of Origin :
China
MOQ :
1
Price :
$200 to $1500
Payment Terms :
T/T
Supply Ability :
300 pcs/ pre month
Delivery Time :
7 work days
Packaging Details :
Export standard packing
Installation mode :
DN40-DN300 (pipe flange type)
Ambient temperature :
-25~55℃
Storage temperature :
-40~60℃
Flow direction :
Forward and reverse
Rated pressure :
1.0M Pa (special pressure can be customized)
Protection grade :
IP68
Description

NYLD-S Electromagnetic Water Meter

The NYLD-S electromagnetic water meter is a battery-powered electromagnetic induction water meter which can be installed anywhere without sacrificing accuracy and performance. It does not require the main power supply.It is specifically designed for individual water applications such as water withdrawal, pipe network distribution, metering charges and irrigation. It has intelligent information and high measurement performance, which is easy to install and saves user investment.

NYLD-S Electromagnetic Water Meter Technical Parameters

Applicable standard

OIML R49

GB/T778 I50 40644

JJG162

GB 4208(housingl protection grade) (IP) (code)

Rated pressure

Temperature grade

Installation mode

Electrode form

1.0M Pa (special pressure can be customized)

-20-80℃

DN40-DN300 (pipe flange type)

Standard fixed
Structure material

Electrode: 316L

Lining: natural rubber NR

Flange: carbon steel, stainless steel

Body: carbon steel, stainless steel

Power supply

3.6V

3.6V+24V dual power supply (9VDC-32VDC) 3.6V+220V dual power supply 85VAC- 265VAC) (separate type only)

3.6V + solar energy (separate type only)

Ambient temperature

Storage temperature

Output signal

(-25~55)℃

(-40~60)℃

Pulse (for calibration)
Alarm Reverse flow, low battery of lithium battery, instantaneous flow, pressure, upper and lower limits, empty pipe, excitation alarm

Protection grade

Flow direction

IP68

Forward and reverse
Communication RS-485 (ModBus protocol)

NYLD-S Electromagnetic Water Meter Design Features

◎ The meter is easy to install: the meter can be buried underground or installed in the well. The IP68 (NEMA6P) design is not affected by the installation position of the meter in the pipe, and no filter is required.
◎ Low pressure loss: the straight-through measuring pipe ensures minimum pressure loss, even at the highest flow rate, which reduces the pressure of the entire network system, and it helps prevent the pump from being over-pressure, causing the pipe to rupture and leak.
◎ Zero maintenance: use the design of no moving parts, and battery life can reach five years.
◎ Two-way measurement: use only one meter for two-way flow measurement.
◎ Intelligent type meter:use only one meter for leak measurement, data record function and error self-test.

NYLD-S Electromagnetic Water Meter Classification

IP68 Electromagnetic Water Meter DN40 DN300 High Measurement Accuracy

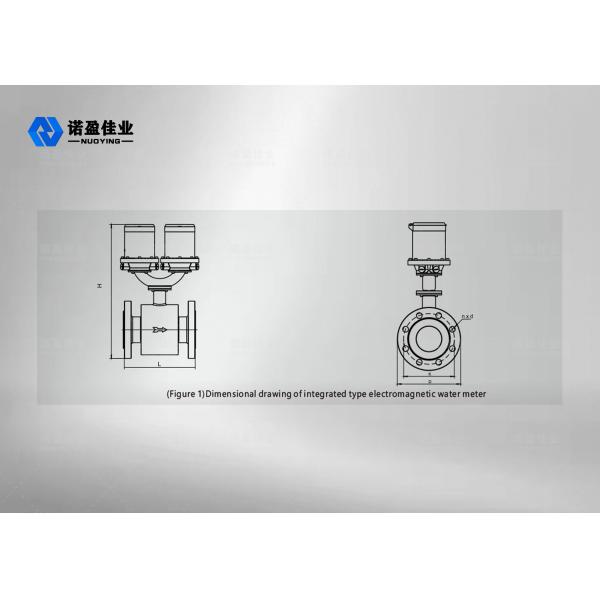

NYLD-S Electromagnetic Water Meter Dimensional Drawing

IP68 Electromagnetic Water Meter DN40 DN300 High Measurement Accuracy

DN(mm) H(mm) L(mm) D(mm) K(mm) n–d(mm)
40 417 200 150 110 4-Ф18
50 432 200 165 125 4-Ф18
65 452 200 185 145 4-Ф18
80 462 250 200 160 8-Ф18
100 492 250 220 180 8-Ф18

125

150

200

250

300

522

552

582

667

722

250

300

350

450

500

250

285

340

395

445

210

240

295

350

400

8-Ф18

8-Ф22

12-Ф22

12-Ф22

12-Ф22
