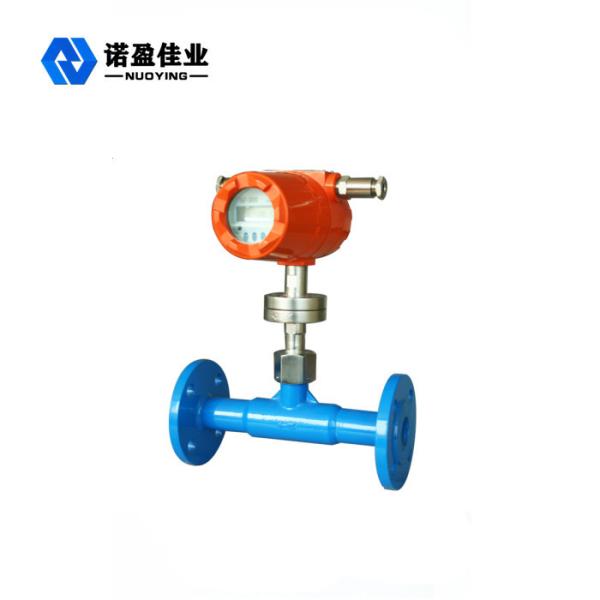

Modbus Biogas Flow Meter Insertion Type 220VAC Carbon Steel
Modbus Biogas Flow Meter Insertion Type 220VAC Carbon Steel
Modbus Biogas Flow Meter Insertion Type 220VAC Carbon Steel
Modbus Biogas Flow Meter Insertion Type 220VAC Carbon Steel
Modbus Biogas Flow Meter Insertion Type 220VAC Carbon Steel
Modbus Biogas Flow Meter Insertion Type 220VAC Carbon Steel
Modbus Biogas Flow Meter Insertion Type 220VAC Carbon Steel
Modbus Biogas Flow Meter Insertion Type 220VAC Carbon Steel
Modbus Biogas Flow Meter Insertion Type 220VAC Carbon Steel
Modbus Biogas Flow Meter Insertion Type 220VAC Carbon Steel
Specifications
Brand Name :
NUOYINGJIAYE
Model Number :
NYHGF-300
Certification :
Explosion-proof certificate
Place of Origin :
Xi'an,China
MOQ :
1pc
Price :
$555.0~$680.0
Payment Terms :
T/T
Supply Ability :
500pcs/pre month
Packaging Details :
60*30*30cm Carton
Type :
Variable Area Air & Gas Flowmeters, U type
Accuracy :
0.2%FS
Medium :
Liquid nitrogen
Ambient temperature :
-40~+60℃
Material :
Aluminum alloy
Communication :
RS485/Modbus
Output :
4-20mA
Power supply :
18~36V/85~265V
Description

Biogas Flow Meter Air Flow Meter Thermal Gas Mass Flow Meter

Biogas Flow Meter Air Flow Meter Thermal Gas Mass Flow Meter Description:

The meter contains two platinum resistance temperature sensors. The thermal principle operates by monitoring the cooling effect of a gas stream as it passes over a heated sensor. Gas flowing through the sensing section passes over two sensors one of which is used conventionally as a temperature sensor, whilst the other is used as a heater.

The temperature sensor monitors the actual process values whilst the heater is maintained at a constant differential temperature above this by varying the power consumed by the sensor. The greater the gas velocity, the greater the cooling effect and power required to maintain the differential temperature. The measured heater power is therefore a measure of the gas mass flow rate.

Biogas Flow Meter Air Flow Meter Thermal Gas Mass Flow Meter Parameters:

Description Specifications
Measuring Medium Various gases (Except the acetylene)
Pipe Size DN10~DN4000mm
Velocity 0.1~100Nm/s
Accuracy ±1 -2.5%
Working Temperature Sensor: -40°C ~+220°CTransmitter: -20°C ~+45°C
Insertion Sensor: medium pressures 1,6MPaFlanged Sensor: medium pressures 1.6MPaSpecial pressure please contact us
Power Supply Compact type: 24VDC or 220VAC, Power consumption <18WRemote type: 220VAC, Power consumption <19W
Response Time 1s
Output 4-20mA (, maximum load 500Q), Pulse, RS485 and HART
Alarm Output 1-2 line Relay, Normally Open state, 10A/220V/AC or 5A/30V/DC
Sensor Type Standard Insertion, Hot-tapped Insertion and Flanged
Construction Compact and Remote
Pipe Material Carbon steel, stainless steel, plastic, etc
Display 4 lines LCD Mass flow. Volume flow in standard condition. Flow totalizer. Date and Time, Working time, and Velocity, etc.
Protection Class IP65
Sensor Housing Material Stainless steel (316L)

Biogas Flow Meter Air Flow Meter Thermal Gas Mass Flow Meter Features:

Measuring the mass flow or volume flow of gas

Do not need to do temperature and pressure compensation in principle with accurate measurement and easy operation.

Wide range: 0.5Nm/s～100Nm/s for gas. The meter also can be used for gas leak detection

Good vibration resistance and long service life. No moving parts and pressure sensor in transducer, no vibration influence on the measurement accuracy.

Easy installation and maintenance. If the conditions on site are permissible, the meter can achieve a hot-tapped installation and maintenance. (Special order of custom-made)

Digital design, high accuracy and stability

Configuring with RS485 or HART interface to realize factory automation and integration

Modbus Biogas Flow Meter Insertion Type 220VAC Carbon SteelModbus Biogas Flow Meter Insertion Type 220VAC Carbon Steel

Modbus Biogas Flow Meter Insertion Type 220VAC Carbon SteelModbus Biogas Flow Meter Insertion Type 220VAC Carbon Steel
