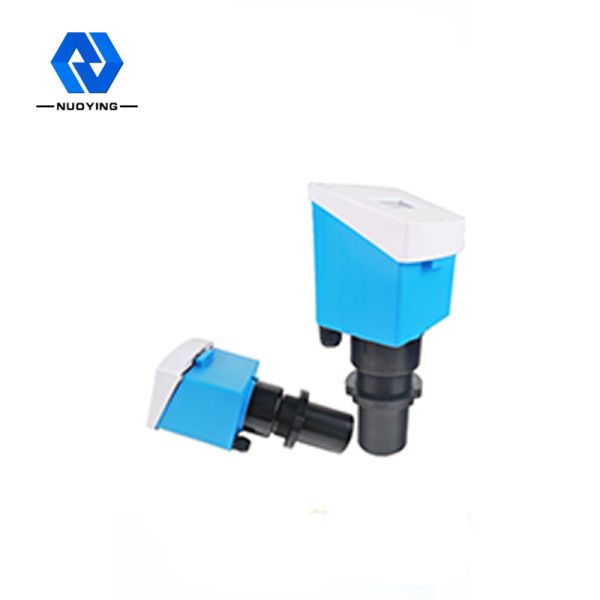

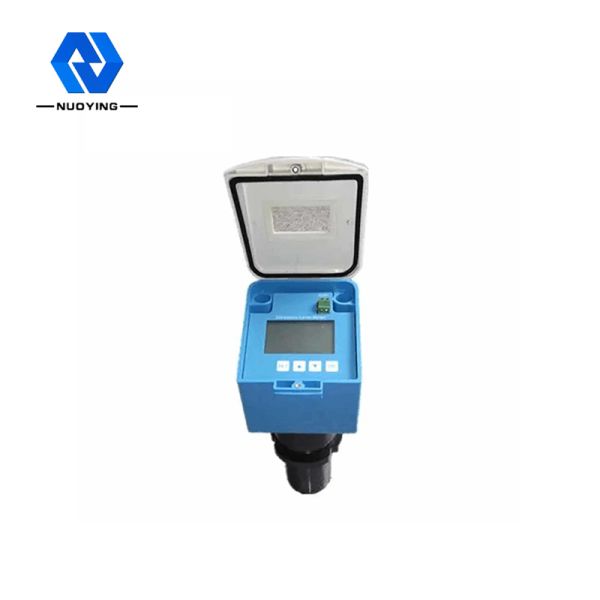

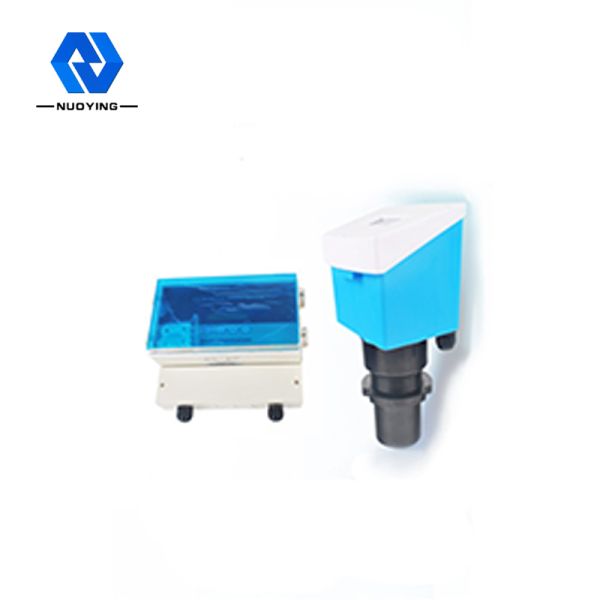

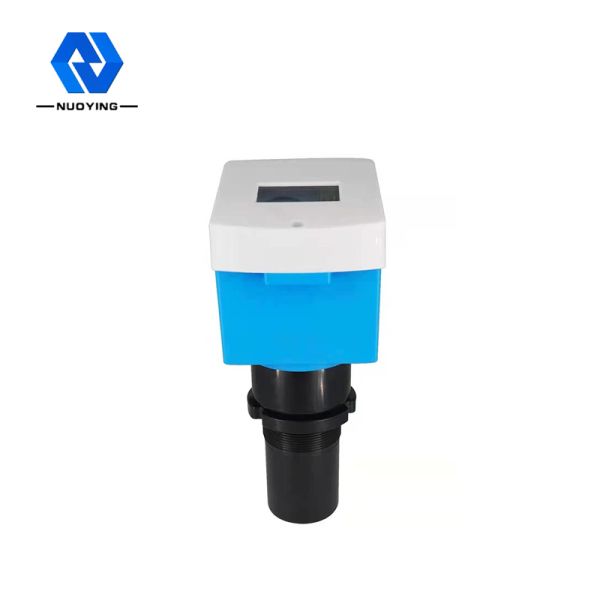

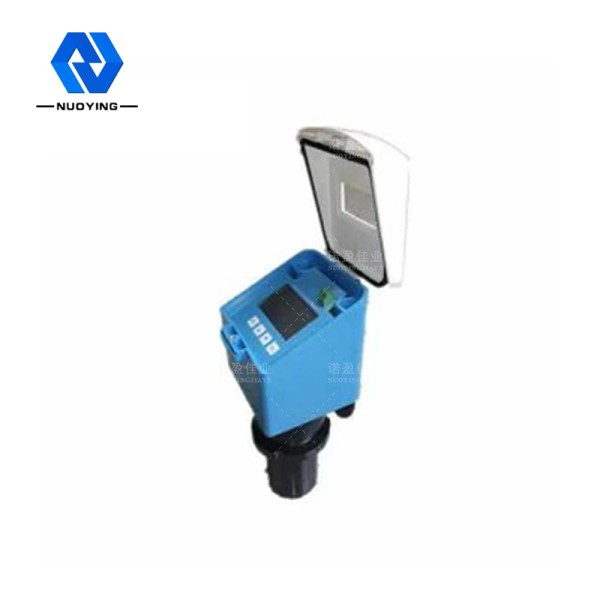

ABS Wireless Ultrasonic Level Transmitter 20m Blue HART Level Transmitter
ABS Wireless Ultrasonic Level Transmitter 20m Blue HART Level Transmitter
ABS Wireless Ultrasonic Level Transmitter 20m Blue HART Level Transmitter
ABS Wireless Ultrasonic Level Transmitter 20m Blue HART Level Transmitter
ABS Wireless Ultrasonic Level Transmitter 20m Blue HART Level Transmitter
ABS Wireless Ultrasonic Level Transmitter 20m Blue HART Level Transmitter
Specifications
Brand Name :
NuoyingJiaye
Model Number :
NYCSUL-501-U
Certification :
CE
Place of Origin :
Xi'an
MOQ :
1pc
Price :
$135.0~$175.0
Payment Terms :
T/T
Supply Ability :
2500pcs per month
Packaging Details :
30*20*20 carton box
Material :
ABS
Output signal :
4-20mA/HART
Supply power :
24VDC
Connection :
Thread
Color :
Blue
Accuracy :
0.5%
Range :
20m
Description

Ultrasonic Level Sensor For Water Level With Meter

Ultrasonic Level Sensor For Water Level With Meter Description:

Ultrasonic Level Transmitter is a non-contact highly reliable and cost-effective material level measuring instrument which is easily installedand maintained. Itcan meet most of the material level measurement requirements without touching the medium. It can be used to measure the height of a variety of liquid and solid materials.

Ultrasonic Level Sensor For Water Level With Meter Parameters:

Measure range 5m, 10m, 15m, 20m
Accuracy 0.5%-1%
Resolution 3mm or 0.1% (Take the max.)
Display language English
Analog output Four wires 4-20mA/510Ω load | Two wires 4-20mA/510Ω load
Relay out AC250V/8A or DV30/5A
Power supply 24V DC or 220V AC±15% 50Hz
Ambient temperature Display instrument -20℃-60℃, probe -20℃-80℃
Communication RS485(standard) or RS232
Ingress protection Display instrument IP65, probe IP68
Probe installation Depend on range and probe type

Ultrasonic Level Sensor For Water Level With Meter Features:

1. Adopting advanced microprocessor

2. Unique echo processing technology

3. Built-in temperature compensation

4. Narrow beam, simple debugging and calibration

5. Economical type with plastic housing

6. With a menu in both English and Chinese, and an echo curve display.
