4-20mA Hydraulic Magnetic Level Transmitter Oil Fuel Tank Level Indicator
4-20mA Hydraulic Magnetic Level Transmitter Oil Fuel Tank Level Indicator
4-20mA Hydraulic Magnetic Level Transmitter Oil Fuel Tank Level Indicator
4-20mA Hydraulic Magnetic Level Transmitter Oil Fuel Tank Level Indicator
4-20mA Hydraulic Magnetic Level Transmitter Oil Fuel Tank Level Indicator
4-20mA Hydraulic Magnetic Level Transmitter Oil Fuel Tank Level Indicator
Specifications
Brand Name :
NuoyingJiaye
Model Number :
NYUHZ-A-2
Certification :
SIL
Place of Origin :
Xi'an
MOQ :
1pc
Price :
$235.0~$365.0
Payment Terms :
T/T
Supply Ability :
1400pcs per month
Packaging Details :
Wonden Box
Material :
PP
Pressure :
1.0Mpa
Temp. :
-20--65°C
Range :
300~3000mm
Installation method :
Side-mounted, top-mounted, bottom-mounted
Measuring medium :
liquid
Process connection :
Flange
Description

4~20mA Hydraulic Oil Magnetic Fuel Tank Level Gauge Transmitter

4~20mA Hydraulic Oil Magnetic Fuel Tank Level Gauge Transmitter Description:

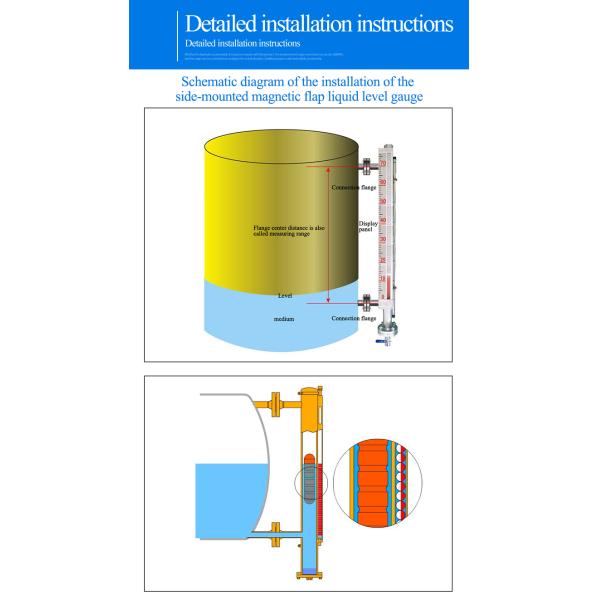

Mounted magnetic liquid level gauge, it can be used to measure the liquid level of kinds of vessels in the shapes of water tower, kettle, groove and ball as well as boiler furnace. It can be used under high-sealing, leak prevention, high pressure, high temperature and corrosion condition, which is safe and reliable. It makes up for the deficiency of fuzzy instruction and fragility of the glass plate level gauge. It is not affected by the revulsion of high/low temperature, which doesn’t need multi-group gauges. In the overall process of measurement, non-blind area, it instructs highlighting, reads directly and has a wide measurement range.

4~20mA Hydraulic Oil Magnetic Fuel Tank Level Gauge Transmitter Parameters:

Measurement range 300-15000mm
Accuracy ±10mm
Column diameter 9mm
Operating pressure ≤16.0Mpa (>16.0Mpa customized); anti-corrosion type ≤1.0Mpa
Medium density ≥0.45g/cm3
Medium density difference ≥0.15g/cm3
Medium viscosity ≤0.4Pa·S
Equipment vibration frequency≤25Hz, amplitude≤0.5mm
Follow speed ≤0.08m/s
Connection flange DN25, PN1.6

4~20mA Hydraulic Oil Magnetic Fuel Tank Level Gauge Transmitter Features:

1.Simple structure, good stability, reliability and durability.
2.Isolated medium, indicator, transmitter and switch
3.Wide range of operating pressure: vacuum to 42Mpa
4.Wide range of operating temperature: -190°C to 425 °C
5.Independent of medium’s physical and chemical states.
6.SPST or SPDT available
7.Optioning float level transducer or capacitive two-wire level transducer to transmit 4-20mA DC signal (or HART) and realize remote control and measurements.

4-20mA Hydraulic Magnetic Level Transmitter Oil Fuel Tank Level Indicator
