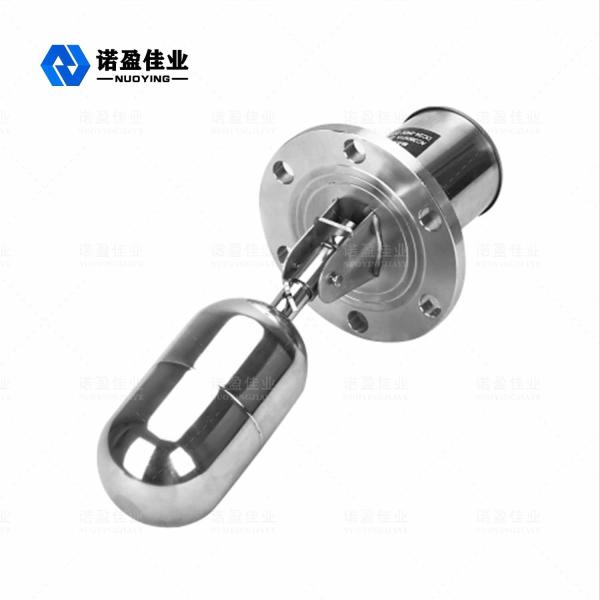

NYCFQ-UK Float Level Switch for Liquid Level Measurement with CE and SIL Factory Float Switch Level Control
NYCFQ-UK Float Level Switch for Liquid Level Measurement with CE and SIL Factory Float Switch Level Control
NYCFQ-UK Float Level Switch for Liquid Level Measurement with CE and SIL Factory Float Switch Level Control
NYCFQ-UK Float Level Switch for Liquid Level Measurement with CE and SIL Factory Float Switch Level Control
Specifications
Brand Name :
NUOYING
Model Number :
NYCFQ-UK
Certification :
CE, ATEX, SIL
Place of Origin :
Xi'an, Shaanxi, China
MOQ :
1 pc
Price :
$120~$700/pc
Payment Terms :
T/T
Supply Ability :
1000 pcs per month
Delivery Time :
7 working days
Packaging Details :
Carton, 40cm×30cm×30cm
Model :
NYCFQ-UK
Float material :
F4, PP, 304, PTFE
Rod length :
200-6000mm
Process temperature :
-20~+125℃
Process connection :
Flange, thread
Process pressure :
-0.1~+2.0MPa
Output :
4-20mA, SPDT
Typical application :
Liquid level measurement
Description


NYCFQ-UK Float Level Switch for Liquid Level Measurement with CE and SIL Factory Float Switch Level Control

​NYCFQ-UK Float Level Switch Working Principle

The float level switch is designed based on buoyancy and magnetic principle. When the liquid or phase interface changes, the float with the magnetic steel is lowered and moved up and down along the guide tube.The dry spring tube in the guide tube ACTS under the magnetic effect of the maglev, and outputs the resistance signal or switch signal corresponding to the liquid level.

​NYCFQ-UK Float Level Switch Design Features

​◎ Customized design, multi-point control, wide application range
◎ Simple structure, convenient installation and low maintenance cost
◎ Stable and reliable performance, strong anti-lightning and anti-interference ability

​NYCFQ-UK Float Level Switch Technical Parameters

Product Model NYCFQ-UK
Typical application Liquid level measurement
Float material F4, PP, 304, PTFE
Ambient temperature -20~+70℃
Medium temperature -20~+125℃
Signal output 4-20mA, SPDT
Process pressure -0.1~2.0MPa
Medium density 0.5~2.0g/cm³
Medium viscosity ≤0.05Pa.S
Process connection flange, thread
Protection level IP65, IP67, IP68 (optional)
Explosion-proof grade Exia II CT6 Ga, Exd II CT6 Gb (details in certificate)

Note: Products can be customized according to the specific requirements of users.


​NYCFQ-UK Float Level Switch Related Pictures

NYCFQ-UK Float Level Switch for Liquid Level Measurement with CE and SIL Factory Float Switch Level Control

NYCFQ-UK Float Level Switch for Liquid Level Measurement with CE and SIL Factory Float Switch Level Control
