NYCFQ-UK Magnetic Float Level Switch for Water Tanks with CE Certificate SS316L Float Level Transmitter Water Level Float Control Switch Factory Direct Sales
NYCFQ-UK Magnetic Float Level Switch for Water Tanks with CE Certificate SS316L Float Level Transmitter Water Level Float Control Switch Factory Direct Sales
NYCFQ-UK Magnetic Float Level Switch for Water Tanks with CE Certificate SS316L Float Level Transmitter Water Level Float Control Switch Factory Direct Sales
NYCFQ-UK Magnetic Float Level Switch for Water Tanks with CE Certificate SS316L Float Level Transmitter Water Level Float Control Switch Factory Direct Sales
Specifications
Brand Name :
NUOYING
Model Number :
NYCFQ-UK
Certification :
CE, ATEX, SIL
Place of Origin :
Xi'an, Shaanxi, China
MOQ :
1 pc
Price :
$118~$700/pc
Payment Terms :
T/T
Supply Ability :
1000 pcs per month
Delivery Time :
7 working days
Packaging Details :
Carton, 40cm×30cm×30cm
Model :
NYCFQ-UK
Float material :
F4, PP, 304, PTFE
Rod length :
200-6000mm
Process temperature :
-20~+125℃
Process connection :
Flange, thread
Process pressure :
-0.1~+2.0MPa
Output :
4-20mA, SPDT
Typical application :
Liquid level measurement
Description


NYCFQ-UK Magnetic Float Level Switch for Water Tanks with CE Certificate SS316L Float Level Transmitter Water Level Float Control Switch Factory Direct Sales

NYCFQ-UK Magnetic Float Level Switch for Water Tanks Design Features

​◎ Customized design, multi-point control, wide application range
◎ Simple structure, convenient installation and low maintenance cost
◎ Stable and reliable performance, strong anti-lightning and anti-interference ability

NYCFQ-UK Magnetic Float Level Switch for Water Tanks Technical Parameters

Product Model NYCFQ-UK
Typical application Liquid level measurement
Float material F4, PP, 304, PTFE
Ambient temperature -20~+70℃
Medium temperature -20~+125℃
Signal output 4-20mA, SPDT
Process pressure -0.1~2.0MPa
Medium density 0.5~2.0g/cm³
Medium viscosity ≤0.05Pa.S
Process connection flange, thread
Protection level IP65, IP67, IP68 (optional)
Explosion-proof grade Exia II CT6 Ga, Exd II CT6 Gb (details in certificate)

Note: Products can be customized according to the specific requirements of users.

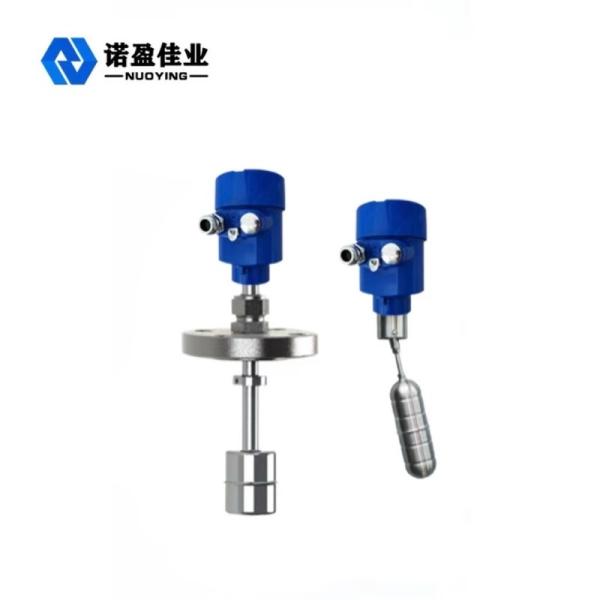

NYCFQ-UK Magnetic Float Level Switch for Water Tanks Related Pictures

NYCFQ-UK Magnetic Float Level Switch for Water Tanks with CE Certificate SS316L Float Level Transmitter Water Level Float Control Switch Factory Direct Sales

NYCFQ-UK Magnetic Float Level Switch for Water Tanks with CE Certificate SS316L Float Level Transmitter Water Level Float Control Switch Factory Direct Sales
