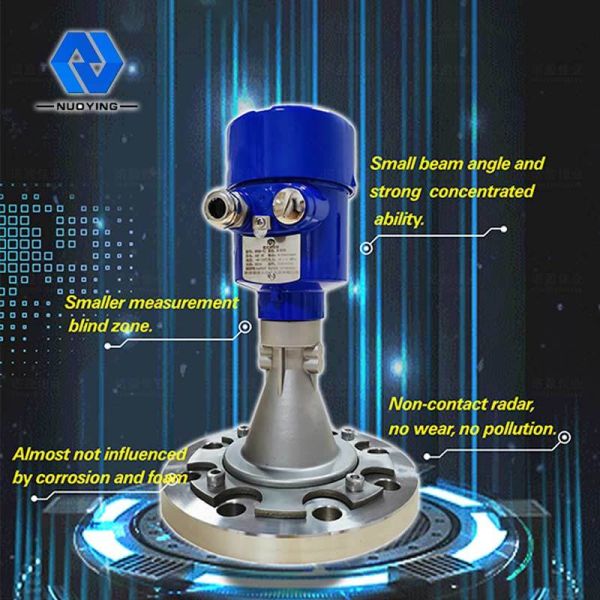

Lens Type 26GHz Customized Radar Level Gauge for Sanitary Scenarios Accurate 40m Liquid Level Meters with Low Price
Lens Type 26GHz Customized Radar Level Gauge for Sanitary Scenarios Accurate 40m Liquid Level Meters with Low Price
Lens Type 26GHz Customized Radar Level Gauge for Sanitary Scenarios Accurate 40m Liquid Level Meters with Low Price
Lens Type 26GHz Customized Radar Level Gauge for Sanitary Scenarios Accurate 40m Liquid Level Meters with Low Price
Lens Type 26GHz Customized Radar Level Gauge for Sanitary Scenarios Accurate 40m Liquid Level Meters with Low Price
Lens Type 26GHz Customized Radar Level Gauge for Sanitary Scenarios Accurate 40m Liquid Level Meters with Low Price
Specifications
Brand Name :
NUOYING
Model Number :
NYRD-TJ
Certification :
CE, ATEX, SIL
Place of Origin :
Xi'an, Shaanxi, China
MOQ :
1 pc
Price :
$218~$700/pc
Payment Terms :
T/T
Supply Ability :
1000 pcs per month
Delivery Time :
7 working days
Packaging Details :
Carton, 40cm×30cm×30cm
Accuracy :
±3mm
Output signal :
4...20mA/HART (two/four) /RS485/Modbus...
Process temperature :
-40~+120℃, -40~+260℃
Protection Class :
IP67
Process pressure :
-0.1~2.0MPa
Explosion-proof grade :
Exia II CT6, Exd Ⅱ CT6
Antenna material :
304L+PTFE, 316L+PTFE (optional)
Antenna type :
Lens antenna
Description

Lens Type 26GHz Customized Radar Level Gauge for Sanitary Scenarios Accurate 40m Liquid Level Meters with Low Price

NYRD-TJ 26GHz Radar Level Gauge Product Description

The NYRD-TJ Radar level transmitter is a 26GHz high-frequency radar level measuring instrument with a maximum measurement distance of 40 meters. The radar level antenna emits an extremely narrow microwave pulse. The pulse travels through space at the speed of light and meets the surface of the medium being measured. Part of its energy is reflected back and received by the same antenna.

The time interval between the emitted and received pulses is proportional to the distance from the antenna to the surface of the measured medium. Due to the extremely high propagation speed of electromagnetic waves, the time interval between the transmitted and received pulses is very small (nanosecond level) and difficult to determine. The 26G HF radar level transmitters uses a special correlation solution technology to accurately identify the time interval between the transmitted and received pulses, which further calculates the distance from the antenna to the surface of the measured medium.

Lens Type 26GHz Customized Radar Level Gauge for Sanitary Scenarios Accurate 40m Liquid Level Meters with Low Price

NYRD-TJ 26GHz Radar Level Gauge Design Features

1. Manufactured with extremely stable materials.
2. Adopt advanced non-contact measurement.
3. Measure the level of liquid and solid media.
4. It can measure all media with a dielectric constant> 1.8.
5. The maximum measurement range is 40m.

NYRD-TJ 26GHz Radar Level Gauge Technical Parameters

Product Model NYRD-TJ
Typical application Easy to crystallize, dew condensation, toxic, strong corrosion, strong dust, sanitary grade, etc
Frequency 26GHz
Accuracy ±3mm
Range 40m
Antenna material 304L+PTFE, 316L+PTFE (optional)
Antenna type Lens antenna
Echo sampling 100 times/s
Process temperature -40~+120℃, -40~+260℃
Process pressure -0.1~2.0MPa
Process connection Flange, bracket (optional)
Electrical Interface M20×1. 5, ½ " NPT
Signal output 4...20mA/HART (two/four) /RS485/Modbus...
Power supply 24VDC (two lines, four lines)
Explosion-proof grade Exia II CT6, Exd Ⅱ CT6
Protection class IP67

Note: Products can be customized according to the specific requirements of users.

NYRD-TJ 26GHz Radar Level Gauge Related Pictures

Lens Type 26GHz Customized Radar Level Gauge for Sanitary Scenarios Accurate 40m Liquid Level Meters with Low Price

Lens Type 26GHz Customized Radar Level Gauge for Sanitary Scenarios Accurate 40m Liquid Level Meters with Low Price

Lens Type 26GHz Customized Radar Level Gauge for Sanitary Scenarios Accurate 40m Liquid Level Meters with Low Price
