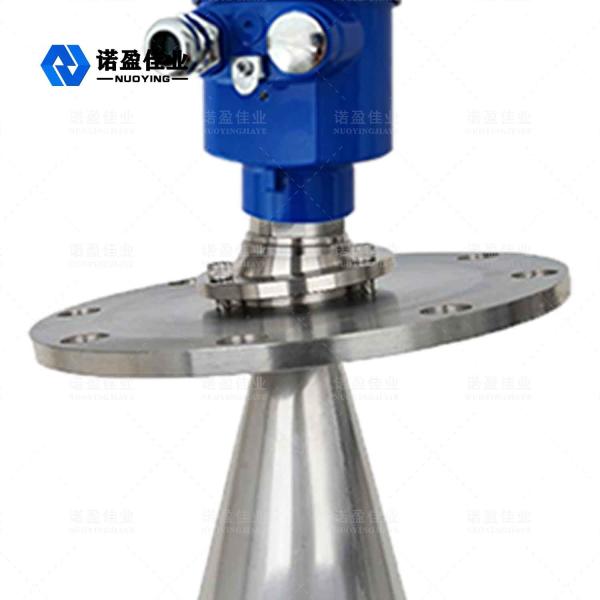

6.8GHz Anti-explosion 4-20mA Radar Level Sensor/Transmitter with 35m Range to Measure Solid Material and Grain Warehouse
6.8GHz Anti-explosion 4-20mA Radar Level Sensor/Transmitter with 35m Range to Measure Solid Material and Grain Warehouse
6.8GHz Anti-explosion 4-20mA Radar Level Sensor/Transmitter with 35m Range to Measure Solid Material and Grain Warehouse
6.8GHz Anti-explosion 4-20mA Radar Level Sensor/Transmitter with 35m Range to Measure Solid Material and Grain Warehouse
6.8GHz Anti-explosion 4-20mA Radar Level Sensor/Transmitter with 35m Range to Measure Solid Material and Grain Warehouse
6.8GHz Anti-explosion 4-20mA Radar Level Sensor/Transmitter with 35m Range to Measure Solid Material and Grain Warehouse
Specifications
Brand Name :
NUOYING
Model Number :
NYRD804
Certification :
CE, ATEX, SIL
Place of Origin :
Xi'an, Shaanxi, China
MOQ :
1 pc
Price :
$309~$569/pc
Payment Terms :
T/T
Supply Ability :
1000 pcs per month
Delivery Time :
7 working days
Packaging Details :
Carton, 40cm×30cm×30cm
Range :
35m
Power supply :
24VDC (two-wire)
Output signal :
4...20mA/HART/RS485/Modbus...
Process temperature :
-40~+130℃
Protection Class :
IP67
Process pressure :
-0.1~4.0MPa
Process connection :
Rotatable flange (optional)
Antenna type :
Horn Antenna
Description

6.8GHz Anti-explosion 4-20mA Radar Level Sensor/Transmitter with 35m Range to Measure Solid Material and Grain Warehouse

6.8GHz Radar Level Transmitter Working Principle

6.8GHz Anti-explosion 4-20mA Radar Level Sensor/Transmitter with 35m Range to Measure Solid Material and Grain Warehouse

Input:

The antenna receives the reflected micro pulse and transmits it to the electronic circuit. The microprocessor processes the signal and identifies the echo generated by the micro pulse on the material surface. The correct echo signal recognition is completed by pulse software, and the accuracy can reach millimeter level. The distance D from the material surface is proportional to the pulse time travel T: D=C×T/2(C is the speed of light)

Since the distance E of the empty tank is known, the material level L is: L=E-D.

Output:

It is set by inputting empty tank height E (= zero point), full tank height F (= full scale) and some application parameters. The application parameters will automatically adapt the instrument to the measurement environment, corresponding to 4-20mA output.

6.8GHz Radar Level Transmitter Application Fields

1. Foodstuffs: Juice factory, milk factory, brewery storage tank, etc.

2. Pharmaceuticals: Chinese pharmaceutical storage tanks, separators, fermentation tanks, etc.

3. Water treatment: Reservoirs, cesspools, water treatment tanks, sedimentation tanks, deep wells, drinking water networks, etc.

4. Paper: Storage tower, chemical material storage silo, etc.

5. Other: Quarry, environmental protection, shipbuilding and other industries.

6.8GHz Radar Level Transmitter Technical Parameters

Product Model NYRD804
Typical application

Solids, powders and granules
Antenna material 304
Antenna type Horn Antenna
Measuring range 35m
Measuring accuracy ±3mm
Power supply 24VDC (two-wire)
Medium temperature -40~+130℃
Process connection Rotatable flange (optional)
Process pressure -0.1~4.0MPa
Protection class IP67
Explosion-proof grade Exia II CT6 (optional)
Signal output 4...20mA/HART/RS485/Modbus...
Electrical interface M20*1.5, ½ ″NPT

Note: Products can be customized according to the specific requirements of users.

6.8GHz Radar Level Transmitter Related Pictures

6.8GHz Anti-explosion 4-20mA Radar Level Sensor/Transmitter with 35m Range to Measure Solid Material and Grain Warehouse

6.8GHz Anti-explosion 4-20mA Radar Level Sensor/Transmitter with 35m Range to Measure Solid Material and Grain Warehouse
