Specifications
Brand Name :
NUOYING
Model Number :
NYRD803S
Certification :
CE, ATEX, SIL
Place of Origin :
Xi'an, Shaanxi, China
MOQ :
1 pc
Price :
$329~$689/pc
Payment Terms :
T/T
Supply Ability :
1000 pcs per month
Delivery Time :
7 working days
Packaging Details :
Carton, 40cm×30cm×30cm
Range :
35m
Accuracy :
±3mm
Power supply :
24VDC (two-wire)
Output signal :
4...20mA/HART/RS485/Modbus...
Process temperature :
-40~+300℃
Protection Class :
IP67
Process pressure :
-0.1~4.0MPa
Explosion-proof grade :
Exia II CT6 (optional)
Process connection :
Flange (optional)
Antenna type :
Horn Antenna
Description

NYRD803S 6.8GHz Heat Resisting Digital Radar Level Transmitter of Horn Antenna 35m HART Radar Level Gauge for Liquids

NYRD803S 6.8GHz Radar Level Transmitter Product Description

The NYRD803S Radar level transmitter is a 6.8GHz high-frequency radar level measuring instrument with a maximum measurement distance of 35 meters. The transmitter transmits and receives very short microwave pulses with very low energy through the antenna system. Radar waves travel at the speed of light. Then the running time can be converted into a level signal through an electronic component. A special time extension method ensures stable and accurate measurements in a very short period of time.

NYRD803S 6.8GHz Radar Level Transmitter Application Fields

1. Power plants: Reservoirs, silo pumps, steam ladles, ash storage, oil tanks, etc.

2. Oilfield: Crude oil storage tanks, refined oil storage tanks, settling tanks, sewage tanks, drilling mud tanks, etc.

3. Chemical: Crude oil distillation tower, raw material silo, intermediate silo, reaction tank, ammonia tank, asphalt storage tank, etc.

4. Metallurgy: Raw material silos, auxiliary material silos, electrolytic cell buffer tanks, etc.

5. Water Resources: Canals, reservoirs, farmland irrigation, river water level monitoring, flash flood warning, urban flooding, etc.

NYRD803S 6.8GHz Radar Level Transmitter Technical Parameters

Product Model NYRD803S
Typical application

Liquids, especially suitable for high temperature conditions
Antenna material 304
Antenna type Horn Antenna
Measuring range 35m
Measuring accuracy ±3mm
Power supply 24VDC (two-wire)
Medium temperature -40~+300℃
Process connection Thread, flange (optional)
Process pressure -0.1~4.0MPa
Protection class IP67
Explosion-proof grade Exia II CT6 (optional)
Signal output 4...20mA/HART/RS485/Modbus...
Electrical interface M20*1.5, ½ ″NPT

Note: Products can be customized according to the specific requirements of users.

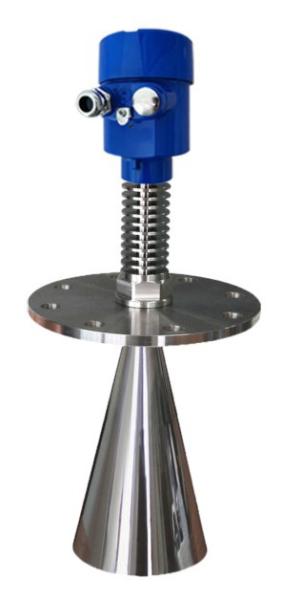

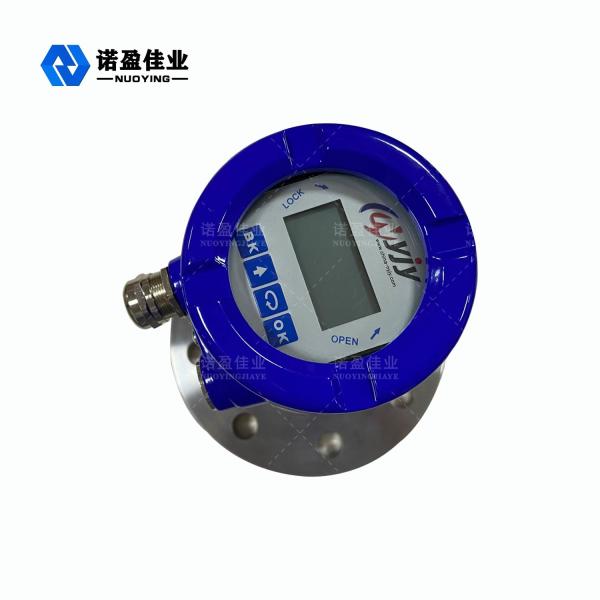

NYRD803S 6.8GHz Radar Level Transmitter Related Pictures

NYRD803S 6.8GHz Heat Resisting Digital Radar Level Transmitter of Horn Antenna 35m HART Radar Level Gauge for Liquids

NYRD803S 6.8GHz Heat Resisting Digital Radar Level Transmitter of Horn Antenna 35m HART Radar Level Gauge for Liquids
