Screw Thread IP67 Continuous Frequency 80 Ghz Radar Level Transmitter Modulation 120m
Screw Thread IP67 Continuous Frequency 80 Ghz Radar Level Transmitter Modulation 120m
Screw Thread IP67 Continuous Frequency 80 Ghz Radar Level Transmitter Modulation 120m
Screw Thread IP67 Continuous Frequency 80 Ghz Radar Level Transmitter Modulation 120m
Screw Thread IP67 Continuous Frequency 80 Ghz Radar Level Transmitter Modulation 120m
Screw Thread IP67 Continuous Frequency 80 Ghz Radar Level Transmitter Modulation 120m
Screw Thread IP67 Continuous Frequency 80 Ghz Radar Level Transmitter Modulation 120m
Screw Thread IP67 Continuous Frequency 80 Ghz Radar Level Transmitter Modulation 120m
Screw Thread IP67 Continuous Frequency 80 Ghz Radar Level Transmitter Modulation 120m
Screw Thread IP67 Continuous Frequency 80 Ghz Radar Level Transmitter Modulation 120m
Specifications
Brand Name :
NUOYING
Model Number :
NYRD900
Certification :
CE, ATEX, SIL
Place of Origin :
Xi'an, Shaanxi, China
MOQ :
1 pc
Price :
$160~$580/pc
Payment Terms :
T/T
Supply Ability :
1000 pcs per month
Delivery Time :
5-7 working days
Packaging Details :
Carton, 40cm×30cm×30cm
Range :
0.08-150m
Accuracy :
0.05%-0.1% F.S
Power supply :
24VDC, 220VAC
Output signal :
4...20mA/HART/RS485/Modbus...
Process temperature :
-40~+130℃,-40~+260℃
Process connection :
Thread, flange
Antenna material :
PTFE, 304＋PTFE
Explosion-proof grade :
Exia II CT6 Ga, Exd II CT6 Gb
Description

Screw Thread IP67 Continuous Frequency 80 Ghz Radar Level Transmitter Modulation 120m

80GHz Radar Level Transmitter Design Features

1.Good transient performance: Based on the self-developed CMOS millimeter-wave RF chip, to achieve a more compact RF structure, higher noise-signal ratio.

2.The 5GHz working bandwidth makes the product have a higher measurement resolution ratio and measurement accuracy

3.Coherence: a coherent current-driven dipole shock generation or a nonlinear differential frequency effect of a coherent laser pulse generation

4.Low energy: millimeter wave photon energy has only a few millielectron volt, there will be no X-ray ionization and destruction of the substance to be detected, so it is not easy to destroy the substance to be detected

5.Strong penetration: Strong penetration for non-polar substances. Many nonmetallic nonpolar materials absorb less rays in this band and, therefore, can be used to probe the internal structure of the material. For example, ceramics / cardboard / plastic products / foam are transparent to this band of electromagnetic radiation, and can also be used for airport / station safety monitoring, such as exploring machinery / explosives and drugs, or for circuit board welding detection.

80GHz Radar Level Transmitter Technical Parameters

Product Model NYRD900
Transmission frequency 76Hz-81Hz, FM scanning frequency width 5GHz
Antenna form Lens antenna, antiseptic lens antenna
Antenna material PTFE, 304＋PTFE
Measuring range 0.08-150m
Measuring accuracy 0.05%-0.1% F.S
Power supply 24VDC, 220VAC
Signal output 4...20mA/HART/RS485/Modbus...
Process temperature -40~+130℃,-40~+260℃ (≥260℃ can be customized)
Process pressure -0.1~2.0MPa
Process connection Thread, flange
Protection Class IP67, IP68 (optional)
Explosion-proof grade Exia II CT6 Ga, Exd II CT6 Gb

Note: Products can be customized according to the specific requirements of users.

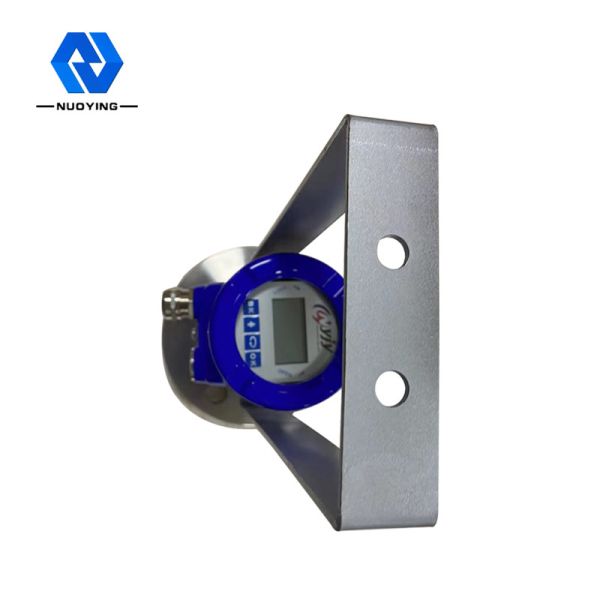

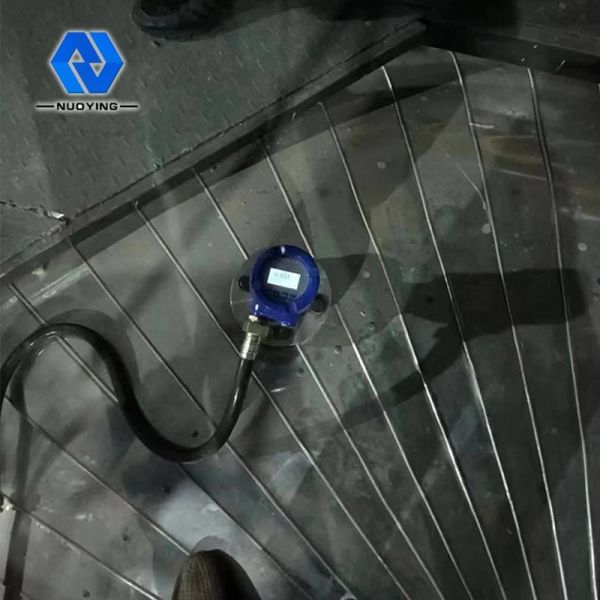

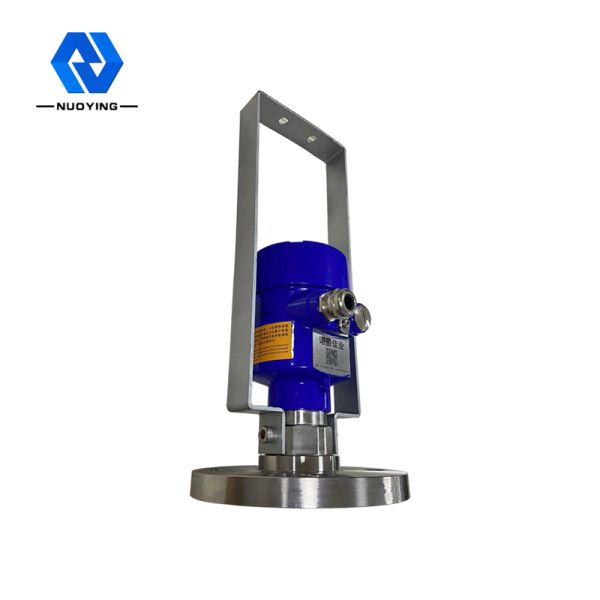

80GHz Radar Level Transmitter Pictures

Screw Thread IP67 Continuous Frequency 80 Ghz Radar Level Transmitter Modulation 120m

Screw Thread IP67 Continuous Frequency 80 Ghz Radar Level Transmitter Modulation 120m
