NYZK Water Tank Side Remote Control Indicator Display range Liquid level, boundary level, temperature.pressure,percentage(optional)
NYZK Water Tank Side Remote Control Indicator Display range Liquid level, boundary level, temperature.pressure,percentage(optional)
NYZK Water Tank Side Remote Control Indicator Display range Liquid level, boundary level, temperature.pressure,percentage(optional)
NYZK Water Tank Side Remote Control Indicator Display range Liquid level, boundary level, temperature.pressure,percentage(optional)
NYZK Water Tank Side Remote Control Indicator Display range Liquid level, boundary level, temperature.pressure,percentage(optional)
NYZK Water Tank Side Remote Control Indicator Display range Liquid level, boundary level, temperature.pressure,percentage(optional)
NYZK Water Tank Side Remote Control Indicator Display range Liquid level, boundary level, temperature.pressure,percentage(optional)
NYZK Water Tank Side Remote Control Indicator Display range Liquid level, boundary level, temperature.pressure,percentage(optional)
NYZK Water Tank Side Remote Control Indicator Display range Liquid level, boundary level, temperature.pressure,percentage(optional)
NYZK Water Tank Side Remote Control Indicator Display range Liquid level, boundary level, temperature.pressure,percentage(optional)
Specifications
Brand Name :
NUOYING
Model Number :
NYZK
Certification :
CE, SIL, ATEX
Place of Origin :
Xi'an,Shaanxi,China
MOQ :
1pcs
Price :
$49 to $69/pcs
Payment Terms :
T/T
Supply Ability :
1000pcs per month
Delivery Time :
5-7 working day
Packaging Details :
40*30*30cm
Grade :
Industrial
Warranty :
12 months
Customized support :
OEM, ODM
Applications :
Tank-side display and control
Process Temperature :
-40~+80℃
Power supply :
24VDC、220VAC
Procedure linkage :
thread, flange (optional)
Signal output :
DPDT relay output
Protection/explosion class :
IP66
Accuracy :
±15mm
Process pressure :
-0.1~2.0MPa
Description

Explosion Proof Water Tank Side Remote Control Indicator Power Plant 4-20 mA Radar Level Meter Field Display Controller

NYZK Product Details

Overview
Product Parameters
Typical application
Tank-side display and control
Case Material
Cast aluminum, stainless steel (optional)
Measuring accuracy
0.05%-0.1%F.S
Power supply
(12-36)VDC(±30%)
Medium temperature
-25~+125℃
Process connection
Flange, thread (optional)
Process pressure
-0.1~2.0MPa
Explosion-proof grade
Exia II CT6(optional)
Products Description

NYZK Tank Side Display Working Principle

NYGP type tank side display meter (hereinafter referred to as "display meter") is mainly used to output 4-20mA without digital display or with digital display but not easy to observe the auxiliary display of the field instrument.

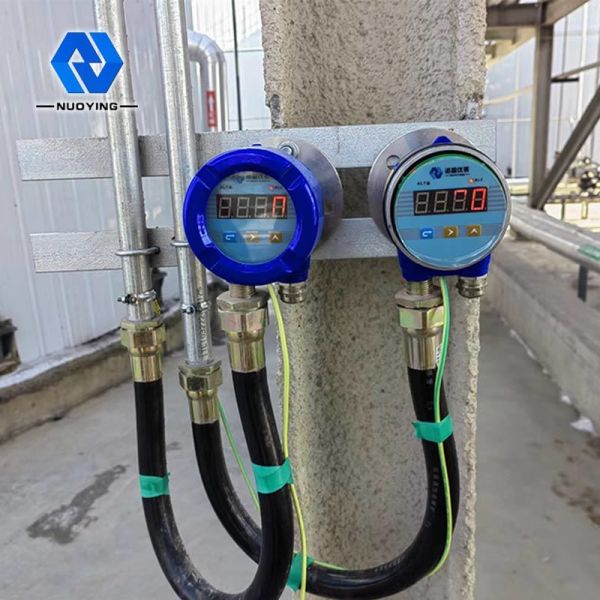

The display instrument should be installed in the easy-to-observe location next to the tank, so that it is convenient to observe the use of nearby.

NP-93420-IB Pressure Sensor Transmitter Design Feature

1. Directly serialized into 4-20mA circuit, no need for external power supply.
2. Dot matrix LCD display, capable of displaying different parameter names and units, flexible application.
3. Membrane keys, convenient for setting parameters in close proximity.
4. Suitable for use with instruments outputting 4 to 20mA.
5. With Exd II CT6/Exia II CT6 explosion-proof performance, it can be used in various flammable and explosive areas such as Zone 0 (must be powered by safety grid), Zone 1, Zone 2, etc.
