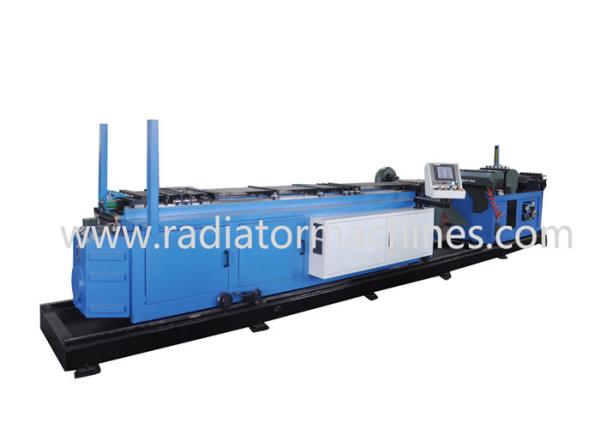

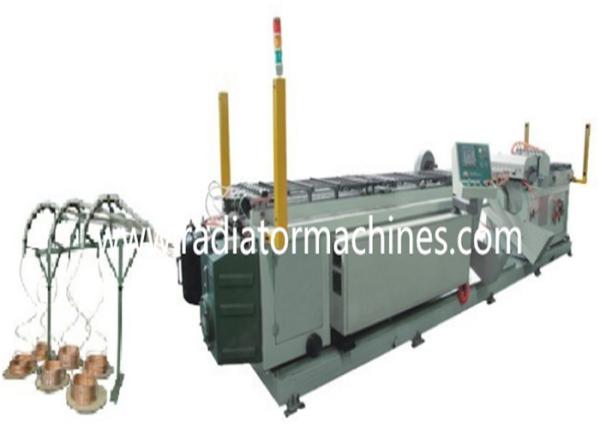

XUW-15 Fully- automatic HVAC Equipment , Long Hairpin Bending Machine
XUW-15 Fully- automatic HVAC Equipment , Long Hairpin Bending Machine
XUW-15 Fully- automatic HVAC Equipment , Long Hairpin Bending Machine
XUW-15 Fully- automatic HVAC Equipment , Long Hairpin Bending Machine
XUW-15 Fully- automatic HVAC Equipment , Long Hairpin Bending Machine
XUW-15 Fully- automatic HVAC Equipment , Long Hairpin Bending Machine
Specifications
Brand Name :
WONDERY
Model Number :
XUW-15
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
Negotiable
Supply Ability :
100 Sets per year
Delivery Time :
60 Days
Packaging Details :
The normal package is plywood box with dessicant bag and wrapping film. Fumigation is not needed.
Name :
fully automatic long U-tube bender
Copper tube :
Arm thickness:Φ15mm; Outer diameter:Φ15mm
Center distance :
Φ15*60mm/Φ15*42.2mm
The length of the workpiece :
300-3500 mm
Supply voltage :
3P 5-wire AC380V / 50Hz voltage fluctuation range:±10%
Working pressure :
≤6.3MPa
Equipment structure :
Φ15*60-2pieces/Φ15*42.2-2pcs
Air source :
0.4~0.6MPa, 500L/min
Description

XUW-15 Fully- automatic HVAC Equipment , Long Hairpin Bending Machine

Structural features of the equipment:

1. Structure: servo fixed length cutting and unloading, fixed vane pump is used in hydraulic system, and servo motor drives the bending mechanism.

2. The whole machine is composed of material rack, cutting machine and bending machine. The bending machine can move back and forth in length direction by servo driving ball screw to realize the production of different length workpieces.Automatic circulation process: straightening → feeding → pressing → cutting → bending up → core pulling → loosening → unloading → reset.


General Parameters

Project Parameters
Copper tube Material Grade Alloy grade: TP2 (soft) (in accordance with GB / T 17791)
OD Maximum outer diameter Φ 1100mm
Arm thickness, mm Φ15
Outer diameter, mm Φ15 Φ15
Workpiece size Center distance, mm 60 42.2

Maximum length, mm

(minimum 300)		 3500 3500
Number of pieces processed at the same time 4
Automatic processing cycle, S/time Less than 10 (calculated according to the length of workpiece 1m)
Electrical system supply voltage

3P 5-wire AC380V / 50Hz

voltage fluctuation range:±10%
Oil pump motor power 1.5 kW
Cutting motor power 1.5 kW inverter drive
Positioning discharge motor 2.0kw servo motor
Moving motor of bending machine 1.0 kW servo motor
Bending servo 3.5kw servo motor
Hydraulic pressure Hydraulic pump Fixed vane pump
Hydraulic oil Isovg32 / tank capacity 160 L
Working pressure ≤6.3MPa
Oil temperature cooling mode Air cooling
Air source 0.4~0.6MPa, 500L/min
Volatile oil Japan Idemitsu Af-2C oil/20L / (or other brand good quality volatile oil)
