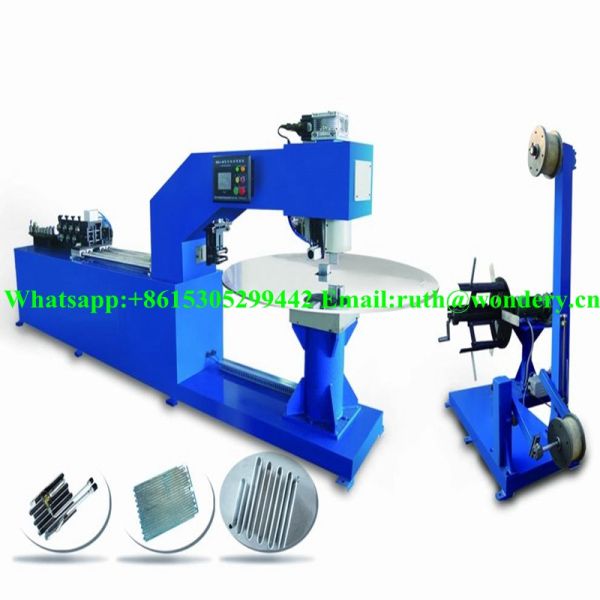

Aluminum Evaporator Serpentine Tube Bending Machine

1. Main Application

The serpentine tube bending is used to straighten aluminum flat tube coils, bend the flat tubes into a serpentine shape,

and cut the bended tubes. The working process goes on automatically starting from feeding,

straightening, bending to cutting.

2. Main Characteristics

The electrical control system is comprised of PLC and a touch screen. Feeding of the flat tube is

through the ball screw and a driving servo motor. The program can be set up through the touch

screen, and the programs can be stored directly. The serpentine tube bending machine

can bend serpentine tubes of various specifications.

The machine has a high repetition accuracy, and a high stability. Different bending

angles are available by changing the data of the bending program on the touch screen.

3. Technical Parameters of Serpentine tube bending machine

Coil size: inner diameter: dia 500mm; outer diameter: max dia1100mm;

Width: 400mm; thickness: 4,5,6mm
Center-to-center distance: decided by the customer
Flat tube width: 19-44mm
Core length: 250-850mm
Max bends: 50 bends
Air source pressure: 0.6Mpa
Power supply: AC220V, 50Hz

Total power: 3.5kw
production capacity: 220 evaporators per 8 hours

Equipment weight: 1.5T
Overall dimension: 12000mm×1400mm×1800mm

Wuxi Wondery Trading Co., Ltd is a comprehensive equipment supplier cooperating with various domestic factories. We can supply the heat exchanger production line for auto radiators, condensers, oil-coolers, heaters, or other products, and HVAC condensers and evaporators.

Auto Condenser Production Line

Including: collecting pipe single-punch mold; collecting pipe automatic forming machine;

aluminum one-end or two-end chamfering machine; semi-automatic core builder; condenser

side plate forming machine; collecting pipe slitting machine; flat tube straightening and cutting

machine; aluminum brazing furnace.

Auto Radiator Production Line

Including: machines for brazing type radiator: fin making machine, radiator core assembly machine,

plastic tank crimping machine, leak detector, header and side plate mold, and brazing furnace;

machines for mechanical type radiators: fin mold, tube-to-fin expansion machine,

tube-to-header expansion machine, plastic tank crimping machine, etc;

Evaporator Production Line

Including: fin mold (single-punch type or progressive type);

serpentine tube bending machine; evaporator assembly table, etc;

HVAC Evaporator and Condenser Production Line

Including: heat exchanger bending machine; Long/short U-tube bending machine;

copper tube straightening and cutting machine;

fin press line; progressive fin mold; vertical/horizontal expansion machine; others.

Other Heat Exchanger Making Machines

Machines and/or molds for similar heat exchanger products and their accessories
