Specifications
Brand Name :
WONDERY
Model Number :
CPJ-180
Certification :
CE
Place of Origin :
JIANGSU
MOQ :
1 SET
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
300 Sets Per Year
Delivery Time :
90 Days
Packaging Details :
plywood case suitable for sea transportation
Product Name :
fin forming machine
Fin Type :
Wavy Fin
Working Speed :
180 M/min
Fin Height :
8mm
Foil Thickness :
0.08mm
Warranty :
1 year
Description

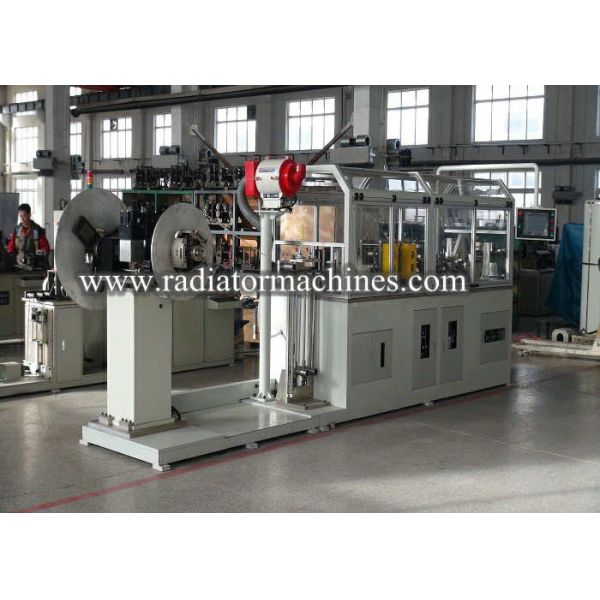

180 M/Min Aluminum Fin Machine High Speed Wavy Fin 8mm Height

Advantages of Fin Machine

PLC control, HMI operation, simple and convenient

Quick changeable tool changing

Patent fractional spray lubricating system, saving 60% lubricant, both sides even coating 100%

Super high forming speed: we have machines in 180m/min.

Double-head aluminum foil pay-off, quicking changing foil coil

Specifcation of Aluminum Fin

Fin Height 8mm+/-0.05mm
Fin width Max 100mm
Fin pitch 3-4mm
Fin louver angle 28 degree (-3-0)

Specifications of Radiator Fin Machine

Product Name Fin Machine 180m/min
Fully-automatic High Speed Fin Making Machine
Specification: CPJ-180
Max feeding speed: 180m/min; coil inner diameter: 300mm; double coil tray;
Fin cutting frequency: max 70 times/min;
DS800 micro-spray precision lubrication system (patent product);
Control system: Delta, Taiwan
Worker: 1 person;

General Introduction

The high speed radiator fin forming machine is equipped with the following devices

Decoiler 1 set
megnetic powder 1 set
magnetic powder brake force automatic adjustment device 1 set
feeding motor 1 set
feeding device 1 set
feeding speed feedback adjustment mechanism 1 set
electrical control cabinet 1 set
fin entering tension adjustment mechanism 1 set
fin forming roller 1 set
fin conveyance device 1 set
fin collection device 1 set
counting and cutting device 1 set
operation box 1 set
machine body 1 set
main drive 1 set
main drive tensioning 1 set
pneumatic circuit board 1 set

Fin Forming Roller

The fin forming unit is used to produce fins with or without windows.

The fin forming blade is made of special cobalt-containing high speed steel. The blade is produced by Japanese slow wire cutting machine, and American precision blade grinding machine. The blade precision is 2μm.

The fin forming unit is processed by American CNC center with a high precision.

Technical Parameters of Fin forming machine

Production efficiency

Feeding speed: MAX 180m/min; cutting speed: MAX 70 times/min ；

Coil inner diameter: 200mm; double coil single channel;
Operator 1 person
Fin forming accuracy Fin height±0.02 ; fin pitch±0.05
Fin forming unit replacement time Around 20mins
Electrical components Delta, Taiwan; Schneider; LG, Omron or IFM, Germany
Pneumatic components AIRTAC, Taiwan
Hydraulic components Jeougang, Taiwan
Movement components PMI, Taiwan
Control system PLC and servo control;
Total power 380V/50Hz 3-phase 4-wire; 20KVA
Air source 0.5Mpa clean and dry air; consumption: 1.0 M³/min
Fin forming unit lubrication system DS800 micro-spray precision lubrication system
Fin forming unit lubricant Fin volatile oil
Equipment lubricant 22-32 mechanical oil
Overall dimension 5700X1500x2200 ; 6T

180 M/Min Aluminum Fin Machine High Speed Wavy Fin 8mm Height

The radiator core builder machine is also called as radiator core assembly machine, aluminum radiator core assembly machine, core assembly table, core assembly machine, radiator core assembly machine.
