machine name :
Radiator Core Builder Machine
working principle 1 :
comb teeth structure; PLC controlled; hydraulic
driving force :
hydraulic, pneumatic or servo
Color :
Customer's Requirement
Weight :
2500kg
Power :
3kw
Description

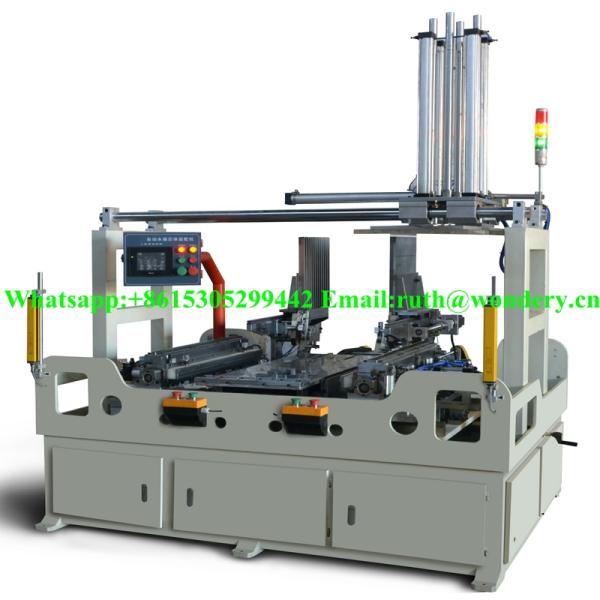

Servo Type Intercooler Core Assembly Machine With High Assembling Accuracy

1. Main Application

The machine is used for assembling auto radiator cores. The machine has the advantages

of stable and reliable working prformance, easy operation, low noise, accurate positioning

of flat tube center, and even distribution of fins. The assembled condenser core has a

high assembling accuracy and a good apperance, which ensures a better brazing effect

in the brazing furnace.

a. header-to-header distance: 300-1000 mm

b. fin width:16, 18, 20, 24, 26, 32mm

c. fin height: 8mm

d. flat tube quantity: max 80 pcs (spacing at 10mm)

e. flat tube width: decided by the customer

f. flat tube thickness:2-3mm

g. tube-tube distance: decided by the customer

h. header width: decided by the customer

The machine is able to produce condensers with flat tube distance at 10mm. The tube distance is

changeable by replacing the chain flex and header fixation block.

2. Equipment Power

a. power supply: 2 phases, 220V, 50HZ;

b. compressed air pressure: greater than 0.4Mpa;

c. pneumatic system working pressure: 4Mpa;

3. Technical Parameters

Radiator core assembled per time: 1 piece

Center-to-center distance: decided by the customer
Flat tube length: 350-800mm;

Flat tube quantity: 75 pieces or more (decided by the customer)

Flat tube width: 20-32mm

Flat tube layer: 1-2 layers (decided by the customer)

Assembling accuracy: diagonal line size differrence kept within ±1.5mm

Total power: 5.5kw

Assembling time per core: about 60 seconds

Equipment weight: 2.5T
Equipment overall dimension (for reference): 1800 mm×2200 mm×2200 mm
