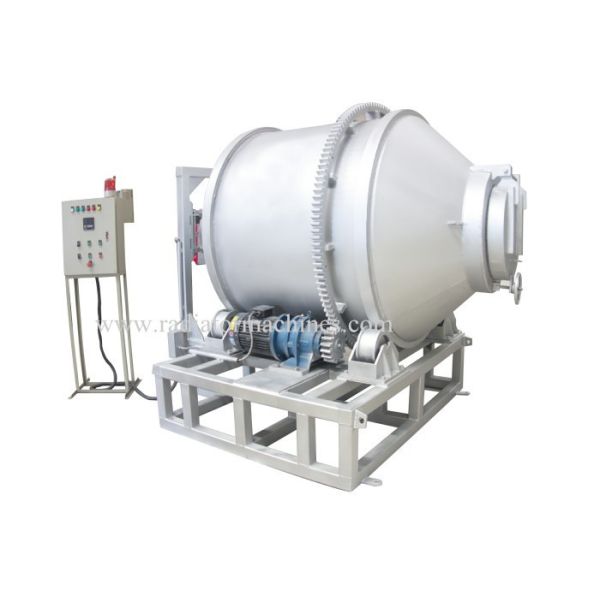

Rotary Type Zinc Metal Melting Furnaces 2000 Kgs Capacity Diesel Oil
Rotary Type Zinc Metal Melting Furnaces 2000 Kgs Capacity Diesel Oil
Rotary Type Zinc Metal Melting Furnaces 2000 Kgs Capacity Diesel Oil
Rotary Type Zinc Metal Melting Furnaces 2000 Kgs Capacity Diesel Oil
Specifications
Place of Origin :
Jiangsu, China (Mainland)
Brand Name :
WONDERY
Certification :
CE Certificate
Supply Ability :
10 Sets per Month
Packaging Details :
Plywood Suitable for Sea Transportation
MOQ :
1 Set
Price :
Negotiable
Model Number :
ZL-Z2000
Delivery Time :
45 Days
Payment Terms :
L/C, T/T
Name :
metal melting furnaces
capacity :
2000 Kgs
Dimension(L*W*H) :
3310*2258*1564mm
Weight :
2.9T
fuel :
diesel oil, engine oil, etc
max furnace temperature :
1000 degree celsius
Description

Rotary Type Zinc Metal Melting Furnaces 2000 Kgs Capacity Diesel Oil

Introduction
Rotary Type Oil Power Zinc metal melting Furnace is used to melt the Zinc Power. The furnace body is of an oval shape.
The two sides of the hearth are built with once-forming refractory material with a high strength. The furnace lining is comprised
of refractory layer, heat preservation layer, and heat insulation layer. The hearth is built with high strength once-forming casting material.
The hearth is equipped with one fire blocking ring which could prolong the flame stay period, increase melting speed and reduce energy consumption.
The metal melting furnace has the features of high performance, air tightness, high strength, and long service life. The heat preservation
layer and insulation layer are both of ceramic fiber material. The furnace has a fast temperature rising speed, a good heat preservation,
and a low energy consumption.
The burning system is comprised of the fan, the solenoid valve, the igniter, and the flame monitor. Connect the burner with power, and
the burner will work.

SPECIFICATIONS FOR Rotary Type Oil Power Zinc Metal Melting Furnace
Burning systemBurner typeOil burner1set
Max consumptionkg/hour20
Max consumptionm³/hour60


Temperature control system

Temperature zonezone1
Max furnace temperature°C1000
Temperature rising speed°C/hourapprox 300
Temperature uniformity°C±10°C


Furnace body

Capacitykgs600
Overall sizemm3310*2258*1564
Rotary speedm/min10~12




Supply Scope of Metal Melting Furnace

Furnace body, 1 set
Automatic temperature controller, 1 set
Driving mechanism, 1 set
Diesel oil burning system, 1 set
User manual, 1 copy



Pre-Sales Service

Inquiry and consulting support.
Sample testing support.
View our Factory.



After-Sales Service

Training how to instal the furnace, training how to use the machine.
Engineers available to service machinery overseas.
Packing & Delivery



Rotary metal melting furnace in our factory:

Rotary Type Zinc Metal Melting Furnaces 2000 Kgs Capacity Diesel Oil
