Pit Type Electric Metal / Aluminum Melting Furnaces Max 1000Kgs Morgan Crucible
Pit Type Electric Metal / Aluminum Melting Furnaces Max 1000Kgs Morgan Crucible
Pit Type Electric Metal / Aluminum Melting Furnaces Max 1000Kgs Morgan Crucible
Pit Type Electric Metal / Aluminum Melting Furnaces Max 1000Kgs Morgan Crucible
Specifications
Place of Origin :
Jiangsu, China (Mainland)
Brand Name :
WONDERY
Certification :
CE CERTIFICATE
Supply Ability :
10 Sets per Month
Packaging Details :
plywood case suitable for sea transportation
MOQ :
1 Set
Price :
Negotiable
Model Number :
WR-RBY
Delivery Time :
30 Days
Payment Terms :
L/C, T/T
Name :
metal melting furnaces
Type :
Resistance Furnace
capacity :
100-1000kg
Melting Material :
aluminum
Working temperature :
850 degree celcius
melting cycle :
about 3 hours one cycle
Description

Pit Type Electric Metal / Aluminum Melting Furnaces Max 1000Kgs

Features

1) The metal melting furnace lining is composed of the superlight refractory bricks and the ceramic fiber

material, which has a good heat preservation effect. The wall temperature rise is ≤ 40℃.

2) The furnace adopts the high temperature alloy strips or resistance wires as heating element with a

long service life.

3) The furnace adopts the Taiwan brand temperature controller with PID control. The temperature control

accuracy reaches ±5℃.

4) The metal melting furnace is equipped with one thermal couple protected by the silicon nitride outer pipe,

and this thermal couple could directly measure the aluminum liquid.

5) The furnace adopts European brand graphite crucible, which has a good thermal conductivity, a long life,

and no iron hyperplasia.

6) The furnace is equipped with liquid leak alarm, over-temperature alarm and other functions to ensure the

safety of equipment and operation.

Technical Parameters

Model

Melting Pool Capacity (kg)

Melting Capacity

(kg/h)

Rated Power

(kW)

Overall Dimension (mm)

OD* Height

WR-RBY-100

100

40

36

Φ 1200*900

WR-RBY-150

150

50

36

Φ 1220*920

WR-RBY-250

250

80

45

Φ 1280*950

WR-RBY-300

300

100

60

Φ 1280*1050

WR-RBY-500

500

150

80

Φ 1480*1150

WR-RBY-600

600

160

90

Φ 1480*1200

WR-RBY-800

800

200

120

Φ 1580*1420

WR-RBY-1000

1000

300

150

Φ 1580*1570

Company Product:


Our company supplies the various metal melting furnaces for zinc, lead, and copper. We have the following

products: Crucible melting furnace, gas fired metal melting furnaces, oil fired metal melting furnaces,

aluminum holding furnace, continuous aluminum melting furnace, rotary furnace, ladle preheater, ladles, etc.

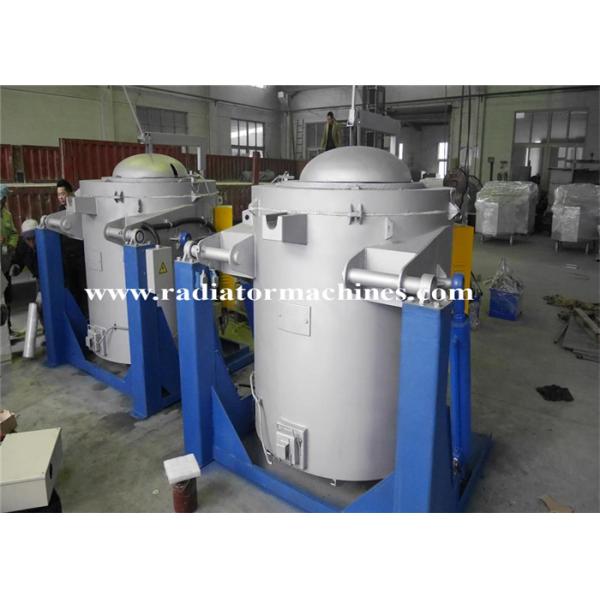

Electric crucible aluminum metal melting furnaces in our workshop: Pit Type Electric Metal / Aluminum Melting Furnaces Max 1000Kgs Morgan Crucible
