Stamping Aluminum Radiator Fin Machine 120 SPM Flat Fin Max 500mm Wide
Stamping Aluminum Radiator Fin Machine 120 SPM Flat Fin Max 500mm Wide
Stamping Aluminum Radiator Fin Machine 120 SPM Flat Fin Max 500mm Wide
Stamping Aluminum Radiator Fin Machine 120 SPM Flat Fin Max 500mm Wide
Specifications
Place of Origin :
Jiangsu, China (Mainland)
Brand Name :
WONDERY
Supply Ability :
100 Sets per Year
Packaging Details :
wooden case suitable for sea transportation
MOQ :
1 Set
Price :
/ Sets
Model Number :
CYJ-120
Certification :
CE
Delivery Time :
60 Days
machine name :
radiator fin machine
fin type :
flat top or wavy
speed :
120 SPM
Fin width :
max 500mm
warranty :
1 year
Description

Stamping Aluminum Radiator Fin Machine 120 SPM Flat Fin Max 500mm Wide

Main Application

The aluminum radiator fin machine is used to produce the following fins:

straight and flat fins,serrated fins, perforated fins, wavy fins, louvered fins and others.

Main Features

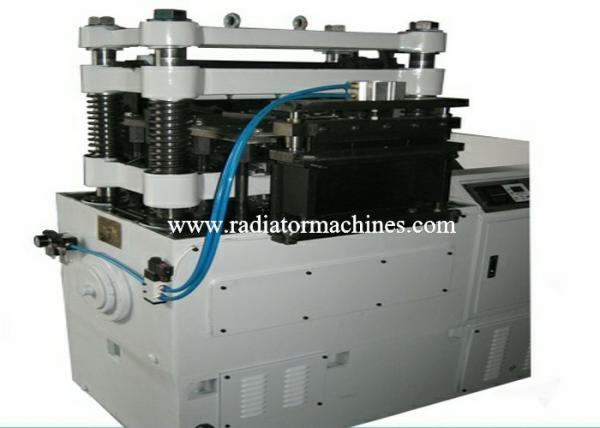

The stamping aluminum radiator fin machine is specially used to produce stamping fins.

The column bushing is made of high-strength imported wear resistant material. It has a service life of more than

1 million times.

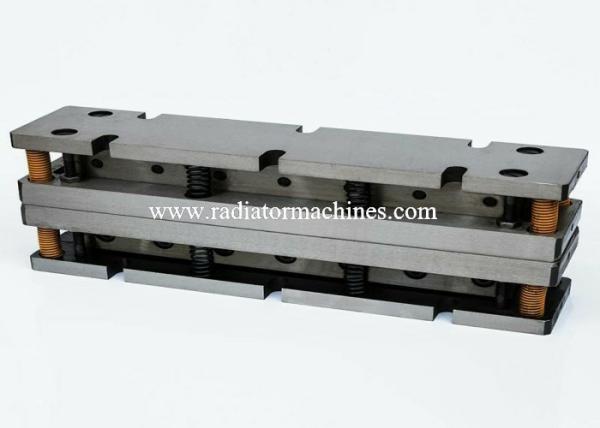

Side of the die is of rolling ball structure which has less wear and tear and a longer service life.

The tension control device can keep the feeding speed matching with the cutting speed.

The touch screen allows the operator to set the parameters directly.

The decoiler is an auxiliary to the fin punching machine. It is equipped with proximity switch and control delay

switch so as to control the decoiling speed.

The fin machine is already installed with one set of die for producing fin of one specific specification.

Technical Parameters

Aluminum strip thickness: customized

Fin width: max 500mm

Power supply: 380V, 3-phase, 60HZ or customized

The equipment is set with safety signs.

Control loop current: 24V DC

Equipment power: 4KW

Disruptions caused by equipment: < 5.0 %

Scrap caused by the equipment:< 0.5 %

Acceptance standard: CPK: ≤1.67

The fin accuracy can meet chinese national standard H+0.040.

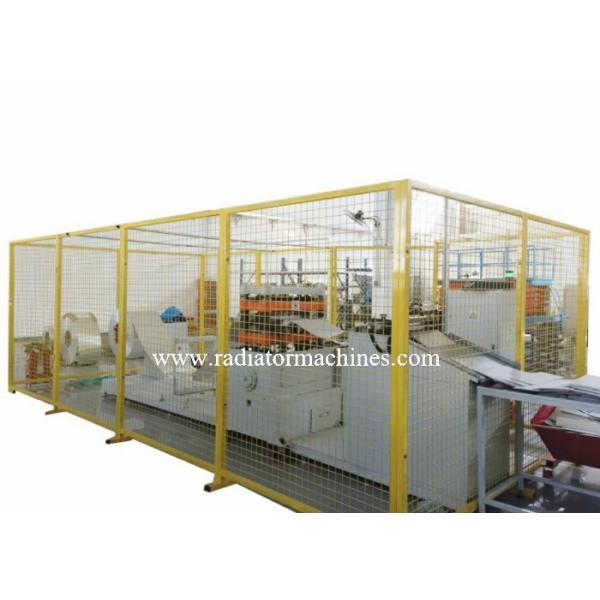

The radiator fin machine is PLC controlled. PLC functions include: fin counting, speed adjustment, cutting movement control, fault removal, and alarm. Operation language of PLC is English and Chinese. The machine is set with a protection door. When the door is opened, the machine stops working immediately.

Supply Scope

NO.

Item

Q’ty

1

Stamping Type Radiator Fin machine body

1 set

2

Decoiler

1 set

3

Lubrication device

1 set

4

Servo cutter

1 set

5

Collection table

1 set

6

Tool box

1 set

7

Accessories

Several

Stamping Aluminum Radiator Fin Machine 120 SPM Flat Fin Max 500mm Wide
