Copper Radiator Fin Machine , Radiator Manufacturing Equipment Energy Saving
Copper Radiator Fin Machine , Radiator Manufacturing Equipment Energy Saving
Copper Radiator Fin Machine , Radiator Manufacturing Equipment Energy Saving
Copper Radiator Fin Machine , Radiator Manufacturing Equipment Energy Saving
Specifications
Place of Origin :
Jiangsu, China (Mainland)
Brand Name :
WONDERY
MOQ :
1 Sets
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
100 Set/Sets per Year
Delivery Time :
90 days after receipt of down payment
Packaging Details :
plywood case suitable for sea transportation
Model Number :
CPJ-CU
Certification :
CE
machine name :
Radiator making machine
pneumatic system working pressure :
0.6Mpa
Fin Roller Life :
about 1000, 000,000 fin crests
Working Speed :
0-60M/Minute
Overall size :
3800*900*1800mm
Single gross weight :
1800 kg
Description

Copper Radiator Fin Machine , Radiator Manufacturing Equipment Energy Saving

Product Application

The hot selling copper radiator fin machine is used to produce heat exchange wavy fins with or without windows.
The fin radiator making machine is equipped with the following devices: decoiler, tensioning device, feeding, interval

oil lubrication, fin forming, correction and cuttig function, strip run-out detection, blockage detection device,

cutting fault indicator, fin forming unit overloading protection device, and fault indication light.

The copper fin radiator making machine adopts PLC, inverter, AC servo control, and touch screen control.

The parameters are easily set through the touch screen.

SPECIFICATIONS FOR Hot Selling Copper Radiator Fin Machine
Fin Forming Unit
Copper Foil Thickness
mm
0.045
Fin forming blade material
cobalt-containing high speed steel forged parts
Copper foil material
TP2
Fin forming blade life
more than 1000 million fin convolutions
Fin Coil Information
Inner Diameter of Coil
mm
200
Outer Diameter of Coil
mm
max 1200
Machine Weight
Net Weight
kg
1800
Overall Dimension
L*W*H
mm
3800*900*1800

Advantages of Our Copper Fin Raditor Making Machine

1 The radiator fin forming machine is equipped with PLC control, HMI operation, which is simple and convenient.

2 The copper fin radiator making machine is changeable, and different fin models can be produced on the same machine.

3 Super fast forming speed: we have overcome the difficulty and successfully making the diamond fin in a fin rolling machine

with a speed of 60 m per minute. The fin thickness is max 0.15mm.

4 The copper radiator fin making machine can be equipped with our patent lubrication system.

The micro spray lubrication system can save about 60% lubricatio

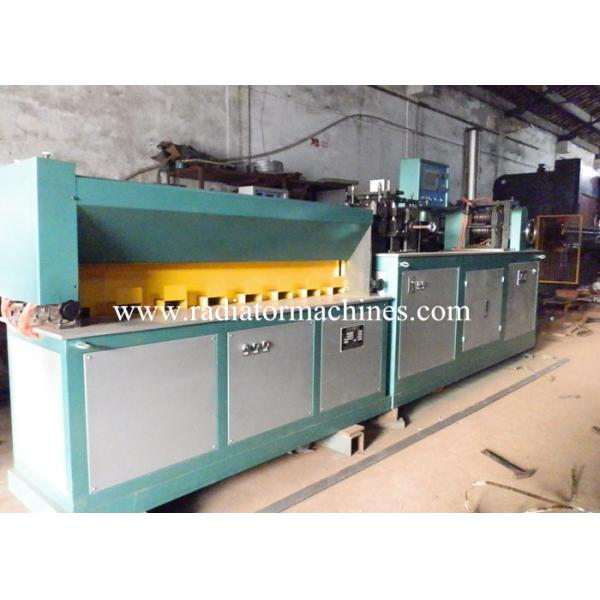

Flat fin copper radiator making machine picture:

Copper Radiator Fin Machine , Radiator Manufacturing Equipment Energy Saving
