70KW Quenching Electric Heat Treat Furnace Max Temperature 1150 Degree Celsius
70KW Quenching Electric Heat Treat Furnace Max Temperature 1150 Degree Celsius
Specifications
Brand Name :
WONDERY
Model Number :
RJ2-75-12
Certification :
CE
Place of Origin :
JIANGSU, CHINA
MOQ :
1 SET
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
200SETS PER YEAR
Delivery Time :
30-40 DAYS
Packaging Details :
NUDE PACKAGE FIXED SUITABLE
Name :
Electric Heat Treat Furnace
Effective Size :
diameter 700 * height 900mm
Max temperature :
1150℃
Rated power :
70KW
Description

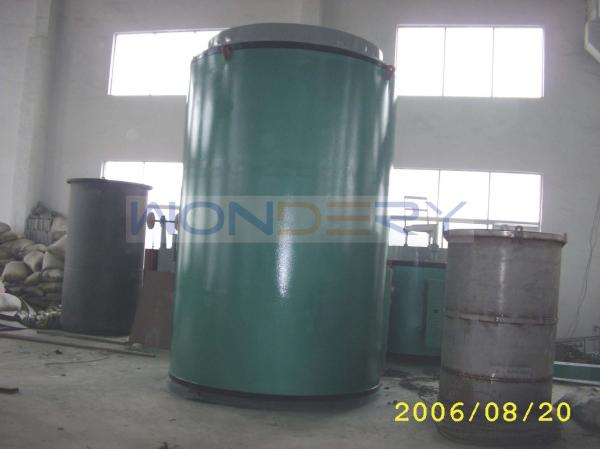

70KW Pit Type Electric Heat Treat Quenching Furnace For Engine Valve Max Temperature 1150Degree Celsius

Application of Electric Heat Treat Furnace heat treat furnace
The pit type furnace is mainly used for heat treatment of various metal materials, moulds and shaft parts for high temperature annealing, quenching and heating.


Technical Parameters of Electric Heat Treatment Furnace heat treat furnace

No. Item Technical Parameters
1 Rated heating power 70KW
2 Power supply 380V, 3P, 50Hz
3 Max temperature 1150℃
4 Control zone 1zone, TCW-32A
5 Furnace shell A3 steel plate, 4mm
6 Furnace cover lifting method Hydraulic up and down, and move to the side manually
7 Hearth size Φ700×900mm
8 Temperature uniformity ±5℃
9 Temperature control accuracy ±2℃
10 Empty furnace temperature raise speed ≤2 hours
11 furnace surface temperature raise ≤45℃
12 Temperature control method PID regulator; Guolong temperature controller with overtemperature alarm;
13 Thermal couple K type
14 Heating element

0Gr27AL7MO2
15 Furnace lining Aluminum silicate fiber, thickness 450mm
16 Solid-state relay Model:250 (Stone, Japan)
17 Main component Contactor, relay (Brand: CHINT)




Installation and maintenance
Installation
Install the furnace according to the drawing. Check the heating element whether there is any phase break, circuit break and short circuit. Test whether the insulation resistance of the heating element is within the specified range.
Maintenance
Check whether all wiring is loose phenomenon Regularly; Check the stroke switch regularly to prevent the furnace from being damaged due to the improper action.
Furnace working conditions:

  • The average monthly humidity in the area is no more than 90%；
  • No explosive hazard, no corrosive gas or electric dust;
  • No obvious vibration or turbulence; heavy surface slope is not higher than 5℃;
  • The control cabinet surface should keep clean;
  • Check whether the instrument is working correctly regularly;


Main electrical components manufacturer

1 Temperature control module 1 zone TCW-32A, Shanghai Guolong
2 Ampere voltage meter 1 set 3U3I, Nandian
3 Thermocouple 1 piece K type, Jinhu
4 Low voltage component All CHINT
5 Solid-state relay 1 group Stone, Japan
6 configuration software 1 set MCGS



Company Introduction
Our company is a professional supplier of heat treat/ treatment furnaces such as box type heat treatment furnace,
bogie type heat treatment furnace, pit type heat treat furnace, carburizing heat treatment furnace, nitriding heat treat furnace, salt bath heat treatment furnace, steel wire annealing heat treat furnace, etc.
