Product Description:

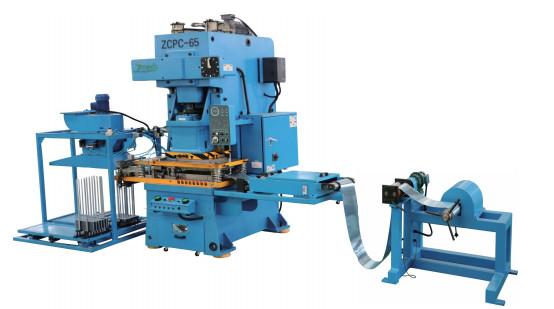

High Speed C type fin press line:

Main preformance features :

The series of automatic fin press line is the latest design for fin punching production line from Tatwan's technology.

●The main composition; aluminum foil unoiling mechanism (photoelectic induction automatic discharge), aluminum foil protective device, oil device, new design & low noise high speed precision press, high speed precision fin de, single and double jump mechanism (photoelectic induction automatic discharge), aluminum foil protective device, oil device, new design & low noise high speed precision press, high speed precision fin de, single and double jump mechanism (ptiona), foil pulling mechanism, latest designed guide rod type fin stacking device, scrap cllecding device, man-machine interface, professional electical control system eltc.

C Frame:
fins press line for the punching of air conditioner fins is specially intended for meeting the requirements for the production of air conditioner fins.
The line mainly consists of uncoiler, oil tank, fin press, suction unit, stacker and relevant electrical control system;
Imported PLC, counter and contact point free cam controller are adopted to meet the requirements of counting the fins cut collected
as well as the function of progress change;
Production lines of special specifications can be made subject to the user's requirements.

The specifcation of fin dies:

1.∅5*19.5*11.2* (6-24) R.

2.∅7*21.0*12.7 or 20.5*12.7 (12-24) R

3.∅7.94*22.0*19.05 (12-18) R

4.∅9.52*25.4*22.0 or 25.0"21.65" (6-12) R.

5.∅12.7*31.75*27.5 (6-12) R

6.∅15.88*38.0*32.91 or 38.1*22.2 (8-12) R

7.∅19.4*50.8*38.1 (4-8) R

8.∅20*34.0*29.5* (6-12) R.25" (46) R.

Main technical of the parameters:

Main components and Structure Features:

5.1 The equipment is mainly composed of high speed precision Straight Side press, discharging device, aluminum foil lubricating device, Die quick change device, initial feeding direction guide device, material suction device, aggregate device, Servo material pulling device, waste discharge device and the corresponding electrical system, hydraulic system, gas system composition.

5.2 Punching machine: machine is of four-column front and back double-point structure, high precision, strong load deviation resist capability. The mainframe is composed of upper beam, double uprights and lower base, which is tensioned by adding high pressure oil. The mainframe can provide overload protection while working, and it also has the function of lifting . The slider adopts eight-sided guide, the needle has no clearance guide, the guide length is long, the precision is high, and the ability of resisting load deviation is strong. The front of the machine is equipped with a crankshaft angle meter (mechanical indicator type)

5.3 Discharging device:Adopts single-head inside-rise type, hand-wheel rising-tight type.

The discharging device can automatically release the material into the mould of punching machine, the photoelectric sensor can control the stop and discharge, and it has no material detection and aluminum foil tension detection.

5.4 Aluminum foil lubricating device: adopts oil tank bath lubrication. Roller guide at the inlet and two rollers and felt compacts at the outlet to scrape off the excess lubricating oil and reduce the pulse of the aluminum foil. Inlet and outlet of Lubricating oil box has regulating device to accommodate aluminum foil with different widths through the lubricating oil box into the mould

5.5 Die quick change device: It is composed of die changing bracket and changing plate. The fin die is placed on the changing plate through the guide rail on the die changing bracket and the working table board moving in and out of the machine.
