RA 68301 Custom Diesel Pistons , Perkins AT4.236 Auto Piston Rings
RA 68301 Custom Diesel Pistons , Perkins AT4.236 Auto Piston Rings
Specifications
MOQ :
100pcs
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
1000pcs per month
Delivery Time :
15days after receiced your payment
Packaging Details :
Neutral packing
Product name :
PISTON/PIN/CLIP
SIZE :
STANDARD
Warranty :
12months
Brand Name :
RA
OEM :
68301
Specification :
PERKINS AT4.236
Description

Product Description

Diesel Engine Piston PERKINS AT4.236 PISTON/PIN/CLIP NON-ALFIN 98.476mm 68301

Reference Number

68301

31354356

Piston details:


Piston Dia: 98.476mm


Piston Length: 121.4mm


COMP DIST: 70.2mm

Pin Dia: 34.925mm


Pin Length: 84mm

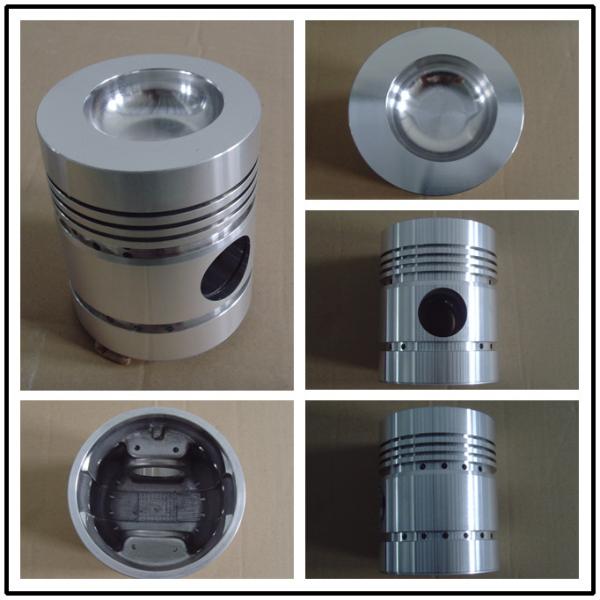

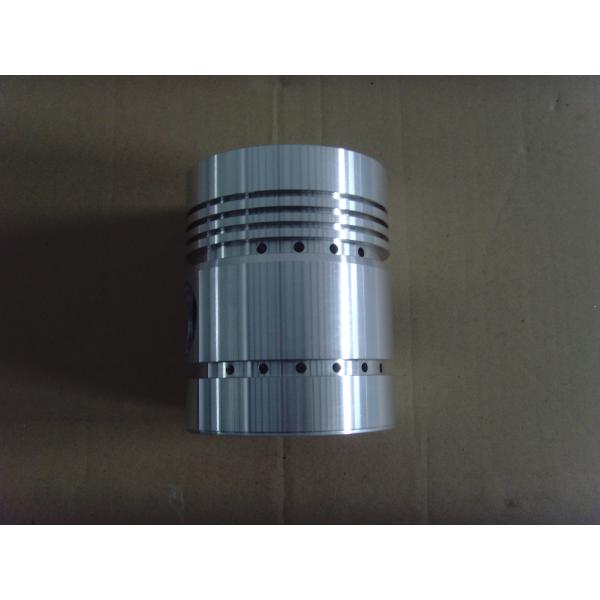

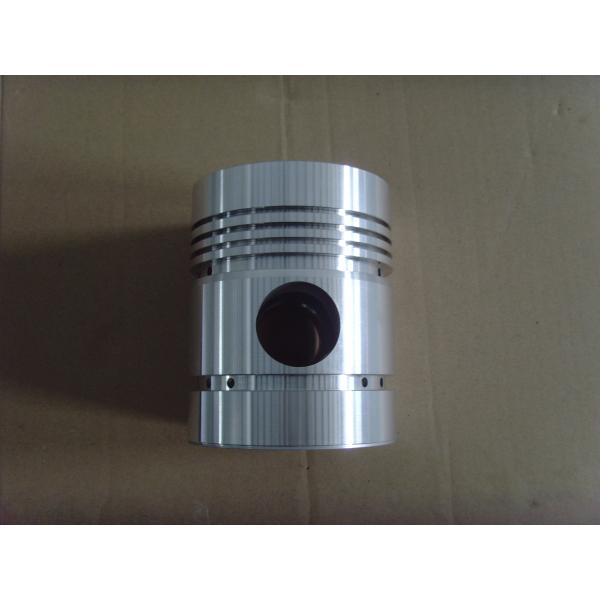

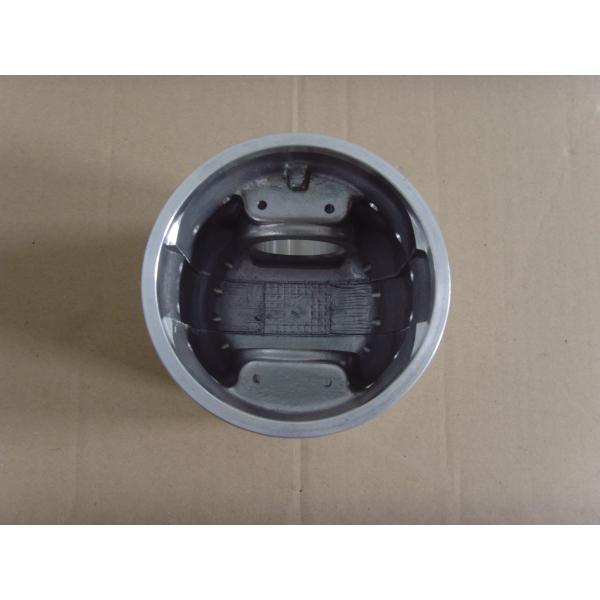

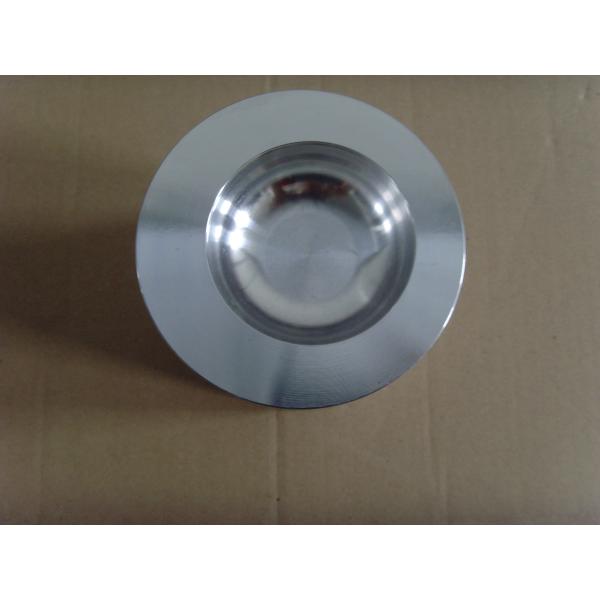

Detailed Images

RA 68301 Custom Diesel Pistons , Perkins AT4.236 Auto Piston Rings

RA 68301 Custom Diesel Pistons , Perkins AT4.236 Auto Piston Rings

RA 68301 Custom Diesel Pistons , Perkins AT4.236 Auto Piston Rings

RA 68301 Custom Diesel Pistons , Perkins AT4.236 Auto Piston Rings

We can also supply the below pistons for FORD

DESCRIPTION PISTON DIA PISTON LENGTH PISTON COMP DIST Ring Comp01 Ring Comp02 Ring Comp03 Ring Oil01 Ring Oil02 PIN DIA PIN LENGTH
351W/B 5.7 1997-93 D7DZ6108A-B D30Z6108G-H D9AZ6108G-HP302 101.6 85.3 44.5 2 2 　 4.76 　 23.165 76.7
D6NN6108L 106.6 129 70.55 2.5 2.5 2.5 4.8 　 38.1 89
82854129 EDG 106.6 129 70.05 2.5 2.5 2.5 4.8 　 38.1 89
D4NN6108L 106.61 129 70.55 2.5 2.5 2.5 4.8 　 38.1 89
793F6110AAA 350032 D906-A1211 107 120.3 71.25 2.5 2.5 2.5 4.8 　 36.513 90
D6NN6108N 020 107 129 70.25 2.4 2.4 　 4.8 　 38.1 89
D4NN6108N 020 107 129 70.25 2.4 2.4 　 4.8 　 38.1 89
EF2506E TRACTOR D4NN6108AA 87295262 81846014 111.56 129.5 70.75 2.4 2.4 2.4 　 4.8 38.1 89
87295261 EONN6108AA 83928178 111.58 127 68.05 2.5 2.5 2.5 　 4.8 38.1 89
D5NN6108S 87295242 111.58 127 68.05 3 2.5 2.5 4.8 　 38.1 89
37554703 111.58 127 68.05 2.5 2.5 2.5 4.8 　 38.1 89
FORD 6.6 F1HZ6108A 111.76 111.2 72.9 3DK 2.5 　 4.8 　 41.2 　
87802364 111.76 111.2 72.9 3DK 2.38 　 4.8 　 41.275 94
B87801255 82841892 111.76 111.2 73.55 2.4 2.4 　 4.8 　 38.1 89
B87801044 82841446 111.76 111.2 72.9 3DK 2.38 　 4.8 　 41.275 94
87800247 111.76 127 68.82 2.4 2.4 2.4 4.8 4.8 41.275 89
83960625 E7NN6108AA 87295264 111.76 126.9 68.15 2.5 2.5 2.48 　 4.82 38.1 89
D7NN6108A 82955398 B 4531CG 111.76 127 67.825 3DK 2.5 2.5 4.8 　 41.275 89
FONN6108FB F001-L775 111.76 126.5 73.05 2.5 2.5 　 4.8 　 38.1 89
87801334 82850252 111.76 126.5 72.92 3 2.5 　 4.8 　 41.275 94
FONN6108FB 111.76 126.5 73.05 2.5 2.5 　 4.8 　 38.1 89
D4NN6108AC 111.76 129.5 70.65 2.5 2.5 2.5 4.8 　 38.1 89
FONN6108AB 111.76 134.3 80.85 2.5 2.5 　 4.8 　 38.1 89
D9NN6108FA 111.76 127 67.825 3DK 2.5 2.5 4.8 　 41.275 89
99900065(87800266) 87800246 111.76 127 68.05 2.4 2.4 2.4 4.8 　 38.1 89
87554721 111.76 129.5 70.325 3 2.5 2.5 4.8 　 41.275 89
EF2506E D4NN6108AA 111.76 129.5 70.75 2.4 2.4 2.4 4.8 　 38.1 89
82955418 B LZF 111.76 129.5 70.55 2.5 2.5 2.5 4.8 　 38.1 89
87800246 B 402CG 111.76 127 68.05 2.4 2.4 2.4 4.8 　 38.1 89
82955398 B 4531CG 111.76 127 67.825 3DK 2.5 2.5 4.8 　 41.275 89
82955409 B 034EG 111.76 129.5 70.325 3DK 2.5 2.5 4.8 　 41.275 89
EF2506E 793F-6110-AAA 111.76 129.5 70.75 2.4 2.4 2.4 4.8 　 38.1 89
