High Precision 350245 Diesel Engine Piston Metal Material 12 Months Warranty
High Precision 350245 Diesel Engine Piston Metal Material 12 Months Warranty
High Precision 350245 Diesel Engine Piston Metal Material 12 Months Warranty
High Precision 350245 Diesel Engine Piston Metal Material 12 Months Warranty
High Precision 350245 Diesel Engine Piston Metal Material 12 Months Warranty
High Precision 350245 Diesel Engine Piston Metal Material 12 Months Warranty
High Precision 350245 Diesel Engine Piston Metal Material 12 Months Warranty
High Precision 350245 Diesel Engine Piston Metal Material 12 Months Warranty
High Precision 350245 Diesel Engine Piston Metal Material 12 Months Warranty
High Precision 350245 Diesel Engine Piston Metal Material 12 Months Warranty
Specifications
MOQ :
100pcs
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
1000pcs per month
Delivery Time :
15days after receiced your payment
Packaging Details :
Neutral packing
Product name :
PISTON/PIN/CLIP
SIZE :
STANDARD
Warranty :
12months
Brand Name :
RA
OEM :
350245
Specification :
PERKINS D4.203 / D3.152 (MF240)
Description

Product Description

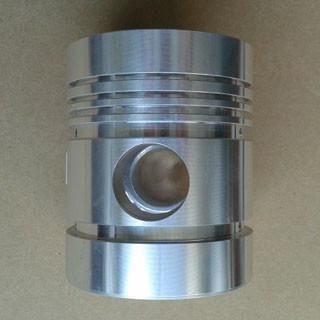

Diesel Engine Piston PERKINS D4.203 / D3.152 (MF240) PISTON/PIN/CLIP (NON-ALFIN) 91.48mm 350245

Reference Number

350245

MF240

Piston details:


Piston Dia: 91.48mm


Piston Length: 109.6mm


COMP DIST: 61.8mm

Pin Dia: 31.75mm


Pin Length: 75mm

Detailed Images

High Precision 350245 Diesel Engine Piston Metal Material 12 Months Warranty

High Precision 350245 Diesel Engine Piston Metal Material 12 Months Warranty

High Precision 350245 Diesel Engine Piston Metal Material 12 Months Warranty

We can also supply the below pistons for Perkins

DESCRIPTION PISTON DIA PISTON LENGTH PISTON COMP DIST Ring Comp01 Ring Comp02 Ring Comp03 Ring Oil01 Ring Oil02 PIN DIA PIN LENGTH
115017621 WR 77 65.6 36.2 2 1.6 　 　 3 21 55
89216 741335M91 4.107 79.375 80.7 45.6 2 1.8 1.8 4.8 4.8 23.8 69
　 80.8 97.4 60.2 2.1 2.1 2.1 4 4 25.4 68
5220 7SN 84 87.8 47.7 2 1.5 　 2 　 28 72
X115017491 84 87.5 47.7 2 1.5 　 3 　 28 72
5130 8UD X115017541 84 87.7 47.7 2 1.5 　 　 3 28 72
5151 C9N X115017581 84 87.7 47.7 2.0K 1.5 　 　 3 28 72
5180 68D X115017551 84 87.8 47.7 2.0K 1.5 　 　 3 28 72
1884101M91 P115017491 84 98.2 55.15 2.5 2.5 2.5 4.8 4.8 28.575 71
5JN 84 87.6 47.7 2.1 1.558 　 3.175 　 28 72
11010130 85 87.5 50.8 2 2 2 4.8 4 22.225 74
　 86.92 87.48 50.96 2.06 2.06 　 4.82 4.82 22.225 74
S349 88.9 99 51 2.5 2.5 2.5 4.8 4.8 28 77
40405 MF135 68332 91.48 109.6 0 2.4 2.4 3.2 6.4 6.4 31.75 75
MF240 91.48 109.5 61.9 2.4 2.4 3.2 6.4 6.4 31.75 75
MF240 4RINGS 91.48 109 61.6 2.5 2.5 2.5 4.8 　 31.75 75
PR65716AL 91.48 107.6 56.825 2.4 2.4 3.2 6.4 6.4 31.75 75
89214 31354984 91.48 109 61.6 2.5 2.5 2.5 4.8 　 31.75 75
MF165 81512 3152/4203 K-1178 91.48 107.9 57.32 2.38 2.38 3.18 6.38 6.38 31.75 75
408108 91.491 107.6 56.825 2.4 2.4 3.2 6.4 6.4 31.75 75
MF240 D4 350245 68332AL 91.491 109.4 61.7 2.4 2.4 3.2 6.4 6.4 31.75 75
D1－1722 98.42 120.5 70 3 2.5 　 4.8 　 34.925 　
68301 98.476 121 70.2 2.381 2.381 2.381 6.35 6.35 34.925 84
31354353 98.476 120.8 69.93 2.4 2.4 2.4 6.4 6.4 34.925 84.5
01-1717 98.476 120.8 70.2 2.4 2.4 　 4.74 　 34.925 84
4.236 MF265 82878 735187M91 98.476 121 69.9 2.381 2.381 2.381 6.35 6.35 34.925 84
MF265 31354356 683000 98.476 121.4 70.66 2.4 2.4 2.4 6.4 6.4 34.925 84
RP65726 020B-4236/6354 K-1338-F-MLE 98.476 121.5 71 2.4 2.4 　 4.8 　 34.925 84
236459874 9320-97526 98.476 121 70.19 2.5 2.5 　 4.8 　 34.925 84
U5LP0022 3637360M91 A4.236 K-1684-F 31355106 98.48 108.3 70.05 3 2.5 　 4.9 　 38.1 83
　 98.48 121 70.2 2.38 2.38 2.38 6.4 6.4 34.925 84
MF265 98.48MM 68301 98.48 121 70.25 2.4 2.4 2.4 6.4 6.4 34.925 84
MF375 68301 98.48 121 70.2 2.38 2.38 2.38 6.4 6.4 34.925 84
68301 98.48 121 70.2 2.5 2.5 2.5 　 6.4 34.925 84
MF375 68301 98.48 121 70.16 2.38 2.38 2.38 6.4 6.4 34.925 84
68301 98.48 121 70.25 2.4 2.4 2.4 6.4 6.4 34.925 84
MF375 98.48 121 70.16 2.38 2.38 2.38 6.4 6.4 34.925 84
86740 98.48 121 69.9 2.38 2.38 2.38 6.4 6.4 34.925 84
MF375 98.48 121 70.2 2.38 2.38 2.38 6.4 6.4 34.925 84
82878 98.48 120.7 69.9 2.38 2.38 2.38 6.35 6.35 34.925 84
86721 5R 98.48 127.28 76.53 2.5 2.5 2.5 6.4 6.4 34.925 84
U5LP0035 82878 98.48 121 69.9 2.4 2.4 2.4 6.38 6.38 34.925 84
U5LP0011 98.48 108.5 70.55 3 2.5 　 4.8 　 38.1 82.5
D1－1718 98.48 108 70 3 2.5 　 4.9 　 38.1 82.5
AIP 11010122 98.48 127.3 76.5 2.385 2.385 2.385 6.335 　 34.925 　
89206 98.48 116 76.5 2.5 2.5 　 6.3 　 34.925 84
3638796M1 100 108 70 3.4 2.6 　 4 　 38.1 82.5
P553920 100 108.2 69.85 3.5 2.5 　 4 　 39.7 78
1000-T K-9160-MLE 100 108 70.05 ADK3.5 2.5 　 4.0 　 38.1 82.5
U5LL0047 3135J259 100 108 74 3.5 2.8 　 4 　 38 83
U5LP0057 100 108.23 70.3 3.5DK 2.5 　 4 　 39.7 78
3135J217 100 108 70.16 2.5 2.8 　 　 4 34.925 84
U5LF0021 3135J183 100 108 70.05 3.5D 2.7 　 4 　 39.7 78
U5LF0023 3135J185 100 108 70.05 3.5DK 2.7 　 　 4 39.7 78
U5LP0057 3135J241 T27 94543600 100 108.23 70.3 3.5DK 2.5 　 3.5 　 39.7 78
U5LL0016 100 103 70.5 3.34 2.64 3.94 　 　 38.1 82.8
4115P001 100 108.23 70.3 3.5 2.5 　 3.5 　 39.7 78
99.89 100 108.24 70.25 3.2 2.46 3.98 　 　 39.7 78
D5LLOO14 100 103 70.05 3.34 2.46 3.94 　 　 38.1 82
U5LL0021 100 102 70.46 2.54 2.54 　 4 　 34.925 84
　 100 108 70.2 2.5 2.5 　 4 　 34.925 84
D1-1725 100 108 70 2.5 2.5 　 4 　 34.925 84
7175792 RP65764 100 108 69.9 3 2.5 　 　 4 38.1 82
89207－5 100.9 121.2 70.5 2.5 2.5 2.5 6.3 6.3 35 82
89207 92144 W23L 101.05 121.2 70 2.5 2.5 2.5 　 6.4 34.925 84
8671753 100.97 121 70 2.5 2.5 2.5 6.4 　 34.925 84
100.88 101 121 70 2.5 2.5 2.5 6.4 　 34.925 84
4248 With4rings k-1477 U5LL0031 101.05 121 70.16 2.5 2.5 　 5.0 　 34.925 84
89207AL 101.05 120.7 69.86 2.4 2.4 2.4 6.4 　 34.925 84
100.92 CL0.13 101.05 120.7 69.86 2.4 2.4 2.4 6.4 　 34.925 84
P4000 K-2257-MLE 101L29 MF440 101.06 108.5 70.46 ADK3.0 2.5 　 4.0 　 34.925 77
　 101.05 121 70.16 2.4 2.4 2.4 6.4 6.4 34.925 84
　 100.9 121.1 70.1 2.44 2.44 2.44 6.39 6.39 34.925 84.7
071N23 80-3604-90 101.05 121 70.5 2.38 2.38 2.38 6.4 6.4 34.925 84
