2.4 5.8GHz Drone Detection Radar System Ethernet Interface With 1KM Detection Range
2.4 5.8GHz Drone Detection Radar System Ethernet Interface With 1KM Detection Range
2.4 5.8GHz Drone Detection Radar System Ethernet Interface With 1KM Detection Range
2.4 5.8GHz Drone Detection Radar System Ethernet Interface With 1KM Detection Range
2.4 5.8GHz Drone Detection Radar System Ethernet Interface With 1KM Detection Range
2.4 5.8GHz Drone Detection Radar System Ethernet Interface With 1KM Detection Range
Specifications
Brand Name :
SHYT
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
20pcs/60 days
Delivery Time :
60 days
Frequencies :
2.4 & 5.8GHz
Hemispherical coverage :
360°
Weight :
5kg
Interface :
Ethernet
Description

Drone detection device surveillance as a 360° scanner can working with drone jammer for 1KM range

Features developed with the user

Greybox is designed with simplicity in mind its size, weight and power provide a competitive edge. The system is upgraded through IRIS. New features, GUI updates and processing updates are performed on a regular basis and are driven by customer feedback.

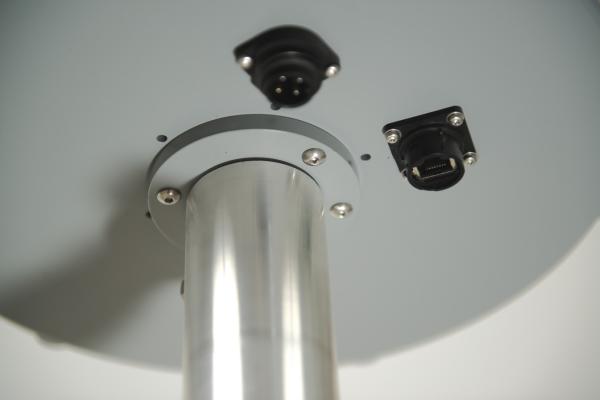

Greybox is easy to interface with existing security infrastructure, either through our plug-and-play user interface or on a protocol level – and requires only 2 cables.

Technical specifications

  • Frequencies: 2.4 & 5.8GHz
  • Hemispherical coverage: 360°
  • Software defined radio
  • Power supply: 12-15V DC or 115/230V AC
  • Detection time: <5sec known target
  • Dimensions: H: 26cm, D: 31.5cm
  • Weight: 5kg
  • Proven in all weather conditions
  • Color: White/grey/upon request
  • Operational temperature: -30° to +60°C
  • Interface: Ethernet
  • TRL: 9
  • Detection range: 1 km line of sight

Capability

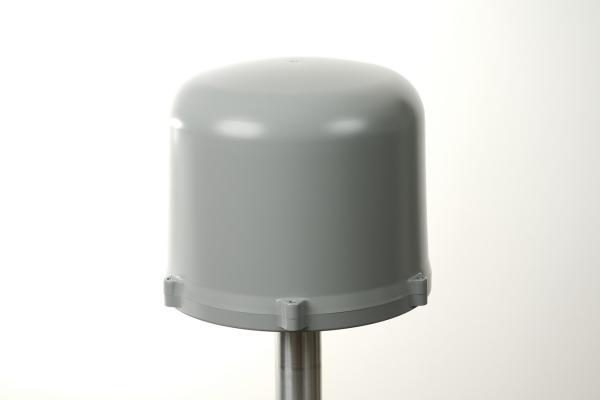

The Greybox drone detection system is light weight and portable. Being made from durable and lightweight materials, makes installations on vehicles, buildings or tripods straight forward.

It is simple to configure and setup. Greybox operational focus, has ensured you will be operational within minutes. The 360° coverage and intelligent signal analysis, helps to indicate the threat direction, type and model of drone. All of the information is displayed on our user-friendly interface IRIS (situational awareness application).

IRIS is our consolidating graphical user interface, which displays the neccesary information to the user.

2.4 5.8GHz Drone Detection Radar System Ethernet Interface With 1KM Detection Range2.4 5.8GHz Drone Detection Radar System Ethernet Interface With 1KM Detection Range2.4 5.8GHz Drone Detection Radar System Ethernet Interface With 1KM Detection Range
