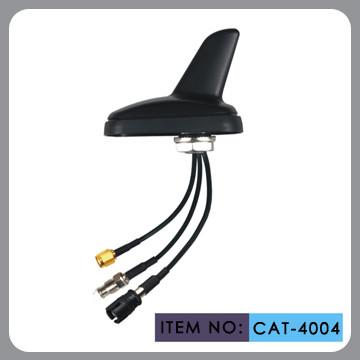

Auto AM FM Gps External Antenna , Shark Fin Car Aerial RHCP Polarization
Auto AM FM Gps External Antenna , Shark Fin Car Aerial RHCP Polarization
Auto AM FM Gps External Antenna , Shark Fin Car Aerial RHCP Polarization
Auto AM FM Gps External Antenna , Shark Fin Car Aerial RHCP Polarization
Specifications
Brand Name :
CAZAN
Model Number :
CAT-4004
Certification :
CE
Place of Origin :
CHINA
MOQ :
499pcs
Price :
negotiation
Payment Terms :
T/T, L/C
Supply Ability :
20000pcs/ each month
Delivery Time :
10--15 WORK DAYS
Packaging Details :
polybag etc
function :
GSM GPS
Polarization :
RHCP
cable length :
12"
Installation :
magnetic
connector type :
SMA male etc
name :
AM FM Car Antenna
Description

1575.42mhz car GPS antenna with 0.3M sticker and SMA male connector

Item no.: CAT-4004

Product Description

(i)Dielectric Antenna

Center Frequency(MHz):1575.42±3
VSWR:1.5:1
Bandwidth(MHz):±5
Impedance(Ω):50
Peak Gain ＞3dBi Based on 7cm×7cm ground plane
Gain Coverage ＞-4dBi at -90°＜0 ＜+90°(over 75% Volume)
Polarization:RHCP

(ii)GSM Antenna

Center Frequency(MHz):850/900/1800/1900
VSWR:2.0:1
Impedance(Ω):50
Typical Gain:2dBi+/-1dBi@850MHz ; 2dBi+/-1dBi@900MHz
1dBi+/-1dBi@1800MHz;1dBi+/-1dBi@1900MHz

(iii)LNA/Filter

LNA Gain(Without Cable) :28 dBi Typical
Noise Figure(dB):1.5
Filter Out Band Attenuation (f0=1575.42 MHz)
7dB Min f0+/-20MHz ;
20dB Min f0+/-50MHz;
30dB Min f0+/-100MHz
VSWR ＜2.0
DC Voltage (V):2.7/3.0/3.3/5.0/3.0 to 5.0 etc.
DC Current (mA):11 Max

(iv)Mechanical

Weight(gram)＜240
Size(mm): 84×53.8×62
Cable GPS(m): RG174 2,5 etc.
GSM(m): RG174 2,5 etc.
Connector GPS: SMA/SMB/SMC/BNC/FME/TNC/MCX/MMCX etc.
GSM: SMA/SMB/SMC/BNC/FME/TNC/MCX/MMCX etc.
Mounting: Screw(Hole/Roof)
Housing: Black

(v)Environmental

Working Temp:-40℃~+85℃
Storage Temp:-45℃~+100℃
Vibration:Sine sweep1g(0-p)10~50~10Hz each axis
Humidity: Humidity95%~100%RH
Weatherproof:100%Waterproof

Our advantages:


1. Quality control:most of products have CE ROHS, certificate. ISO9001:2008.
2. Low MOQ:5pcs/10pcs/20pcs/50pcs,depends on different items.
3. Fast Delivery Time :3~20 days, On-Time Delivery.
4. Good After-Sales Service: we could offer technical support or return service in short time.
5. 1 Year Warranty.
6. OEM/ODM service.


We can give you a promise:


•100% product quality protection
•100% on-time shipment protection
•100% payment protection for your covered amount
