Waterproof Car GPS Antenna Universal SMA Male Connector Cable Length Custom
Waterproof Car GPS Antenna Universal SMA Male Connector Cable Length Custom
Waterproof Car GPS Antenna Universal SMA Male Connector Cable Length Custom
Waterproof Car GPS Antenna Universal SMA Male Connector Cable Length Custom
Waterproof Car GPS Antenna Universal SMA Male Connector Cable Length Custom
Waterproof Car GPS Antenna Universal SMA Male Connector Cable Length Custom
Waterproof Car GPS Antenna Universal SMA Male Connector Cable Length Custom
Waterproof Car GPS Antenna Universal SMA Male Connector Cable Length Custom
Specifications
Brand Name :
CAZAN
Model Number :
CAT-4006
Certification :
CE ROHS
Place of Origin :
CHINA
MOQ :
499pcs
Price :
negotiation
Payment Terms :
T/T, L/C
Supply Ability :
20000pcs/ each month
Delivery Time :
5--15 WORK DAYS
Packaging Details :
polybag
connector type :
SMA male
Color :
black
function :
gps
cable length :
118" or 197"
Installation :
magnetic or double-side tap
frequence :
1575.42Mhz
Description

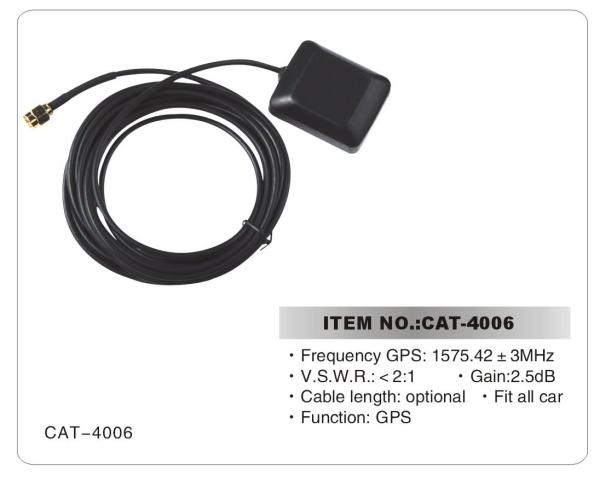

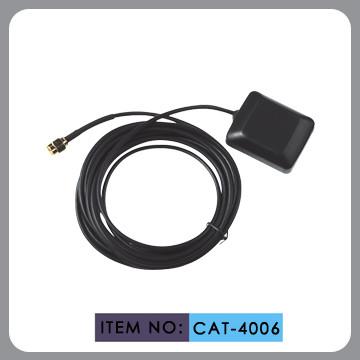

black plastic car gps antenna universal SMA male connector magnetic mount

ITEM NO: CAT-4006

(i) Dieletric Antenna

Center Frequency 1575.42MHz±3 MHz

V.S.W.R 1.5:1

Band Width ±5 MHz

Impendence 50 ohm

Peak Gain ＞3dBic Based on 7×7cm ground plane

Gain Coverage ＞-4dBic at –90°＜0＜+90°(over 75% Volume)

Polarization RHCP

(ii) LNA/Filter

LNA Gain (Without cable) 28dB Typical

Noise Figure 1.5dB

Filter Out Band Attenuation (f0=1575.42 MHZ)

7dB Ｍin f0+/-20MHZ ;

20dB Ｍin f0+/-50MHZ;

30dB Ｍin f0+/-100MHZ

V.S.W.R ＜2.0

DC Voltage 3.0V to 5.0V

DC Current 12mA Max

(iii)Mechanical

Weight ＜110gram

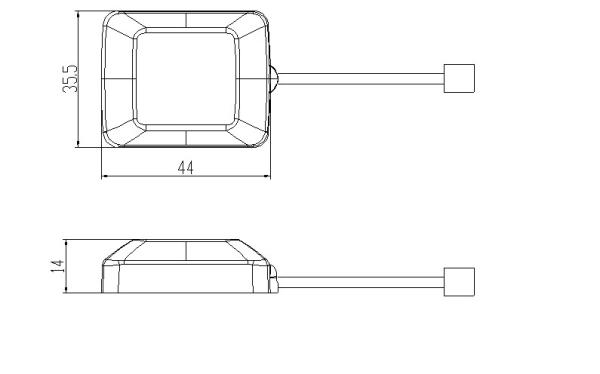

Size 44×35.5×14mm

Cable RG174 5meters, 7 meters

Connector SMA

Mounting Magnetic base

Housing Black

(iv)Environmental

Working Temp -40℃~+85℃

Storage Temp. -45℃~+100℃

Vibration Sine sweep 1g(0-p)10~50~10Hz each axis

Humidity Humidity95%~100%RH

Weatherproof 100%Waterproof

Waterproof Car GPS Antenna Universal SMA Male Connector Cable Length Custom

1. Working Voltage: DC3.0V~5.0V
2. Working Current: 10mA~30mA
3. Center Frequency: L1(1575.42MHz±1.023MHz)
4. Output Impedance: 50 OHM
5. Outer Band Attenuation: 20dB @ 1575.42MHz±50MHz
6. Amplifier Gain: 29dB±3dB
7. Noise Figure: ≤1.5dB
8. V.S.W.R: ≤1.5:1 (MAX 2.0) @ 1575.42MHz
