Rugged TM card Ibutton Key Fob for common area entry doors
Rugged TM card Ibutton Key Fob for common area entry doors
Rugged TM card Ibutton Key Fob for common area entry doors
Rugged TM card Ibutton Key Fob for common area entry doors
Rugged TM card Ibutton Key Fob for common area entry doors
Rugged TM card Ibutton Key Fob for common area entry doors
Rugged TM card Ibutton Key Fob for common area entry doors
Rugged TM card Ibutton Key Fob for common area entry doors
Specifications
Brand Name :
A.N.G
Model Number :
AC-TM104
Certification :
CE,ISO, SGS，ROHS
Place of Origin :
Shenzhen, CHINA
MOQ :
500pcs
Price :
Depending on the chip, material, printing
Payment Terms :
T/T, Paypal,Western Union, MoneyGram
Supply Ability :
1000,000pcs per month
Delivery Time :
7-15 Days
Packaging Details :
200pcs/box,2000pcs/carton,10000pcs 63KG
Item Type :
TM card / IB card
Material :
Stainless steel 、ABS
Diamension :
Dia5.89mm * 16.25mm
Intend for :
RW1990、 DS1990A-F5, DS1990R, DS1990A-F3
Unit Weight :
About 4g
Color :
Red，Green，blue，yellow，black，etc
Failure Rate :
1 /100,000 times ( used properly)
Description

Rugged TM card Ibutton Key Fob for common area entry doors

Description

The provided iButton key is manufactured by A.N.G with DS1990A chip . Each button is factory lasered with a guaranteed unique 64-Bit Serial NO. for traceability. It’s sealed with stainless-steel shell with strong anti-water/shake/rust/water/corrosion capability.

A.N.G's iButton devices are small, durably packaged modules with globally unique digital addresses. Enhanced by A.N.G's 1-Wire communications protocol, they provide the ability to deliver or record data where other products cannot, such as in very harsh environments. An iButton device is ideal for any application where information needs to follow a person or object, such as temperature and humidity data logging, access control, asset tracking, and electronic cash (eCash) transactions.

IButton devices offer a simple, secure way of identifying assets. Each iButton device has a unique 64-bit address that can be used as an electronic serial number that is never duplicated. Additionally, onboard memory of up to 32kB gives assets their own personalized database. This database enables storage of unique information about each asset, including maintenance records and inventory management information that are permanently affixed to each asset.

Wear-tested to last 10 years, iButton devices bring unparalleled durability to asset- and data-management applications—even in harsh industrial and outdoor environments.

Feature:

TM Key

 Size Handle L40mm*W15mm
Ibutton Size Dia17mm*6mm
Wristband Size Band dia 65mm,stretchable
Material Stainless steel + ABS/PPC
Color Full color,customized welcome
Date Save Over 10 years
Sample Available upon request
Capacity 64 bit serial number
OEM Can be customized based on the actual samples or your 3D drawing

Application

 Access control/Guard Tour System/Security Patrol/Sauna door locks/electronic door locks
RFID IC Support:
Chip name RW1990, DS1990A-F5, DS1990R, DS1990A-F3

Features

 Upgrade of DS1990 allows multiple Serial
Number IButtons to reside on a common bus
Low-cost electronic key for access control
Operating Range: 2.8V to 6.0V, -40℃to +85℃
Can be read in less than 5ms
What Are the Advantages of iButton Devices over Other Technologies?
When developing an iButton solution for an application, you can consider many complementary technologies. Bar codes, RFID tags, magnetic stripe, prox, and smart cards are some of the possibilities. Unlike bar codes and magnetic stripe cards, most of the iButton devices can be read AND be written to. In addition, the communication rate and product breadth of iButton devices go well beyond the simple memory products typically available with RFID. As for durability, the thin plastic of smart cards is no match for the strength of the stainless-steel-clad iButton device.

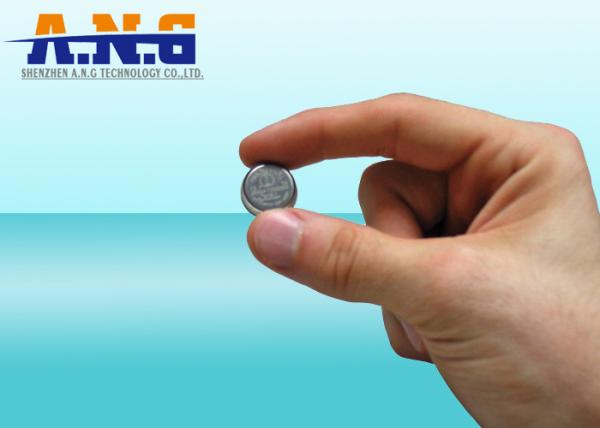

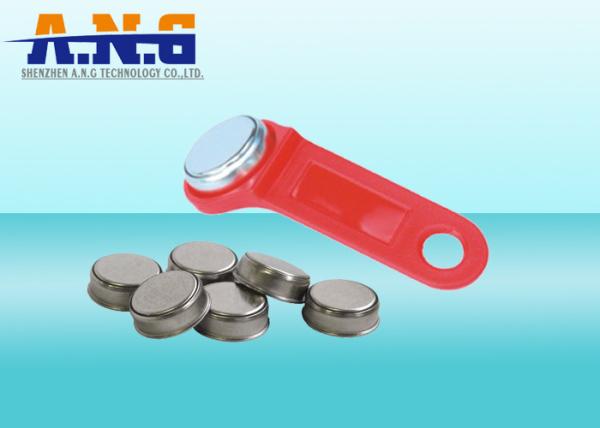

Products picture

Rugged TM card Ibutton Key Fob for common area entry doors

Packing:

1. 100pcs/box, then 1000/2000/3000/5000 pcs in carton.

2. According to client's requirements

Rugged TM card Ibutton Key Fob for common area entry doors

If you are interested in this ibutton key, please welcome to send us an inquiry!
