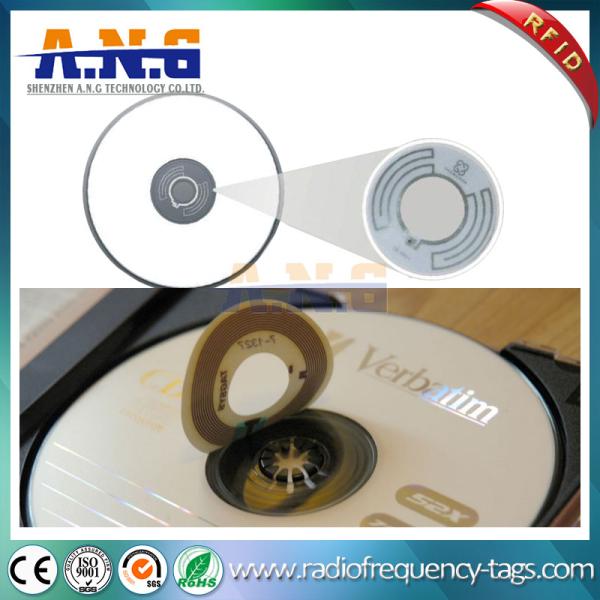

Paper Roll Uhf Rfid Tag Disc Label Sticker For Asset Management , Alien H3 Chip

RFID disc Tag specially designed tag antenna and package, making it easy for disk management, statistics, identification, security and many other applications. Excellent anti-jamming performance, interference in the work of the label of intensive RF environment data read and write performance is still stable and reliable.

Applications:

• Pallet cards
• Apparel hang tags
• Application on plastics

• Asset management
• File folder labels
• Shipping labels

Performance:

Protocol Standard ISO/IEC 18000-6C
Operation Frequency 860-960MHz
Read range about 3m(Depending on reader)

IC chip

Chip Characteristics Alien Higgs-3
Unique TID 64 bits
EPC 128 bits(Extensible to 496 bits)
User Memory 128 bits

Physical Feature

Antenna Meterial Aluminum
Process Etching
Substrate Material PET
Inlay size 96x22mm

Package:

Inlay Format: inroll
Delivery Format:20000±100pcs/roll,1 rolls /carton

Packing Format:

1,Each roll of inlay has two strips of 21mm-width glassine paper as mounts to
protect chip and antenna, so as to avoid extrusion and water vapor.
2,Waterproof, anti-collision, antistatic
3,In antistatic bags

Applications:

1. Self-management library

1) Borrow and return books by reader themselves

2) Rapid inventory

3) Security Access Control System

2. Intelligent document management

1) High performance

Could read tag information efficiently, accurately, reliably and completely with a severe environment (For example: in a small file cabinet)

2) Fast processing speed

Do not have to scan the tags directly while obtaining data. Fast read/write speed.

c

Notes:

1, handling and use of waterproof, Ban Ban violent impact, extrusion or bending of the chip part.

2, use as far as possible to wear anti-static bracelet or anti-static gloves, avoid direct hand touch chip or antenna generates static interference.

3, suggested label disposable posted good use, try to avoid the paste distortion after further tear paste.

4, keep, use anti-static bag sealed and kept in dry places without static radiation.

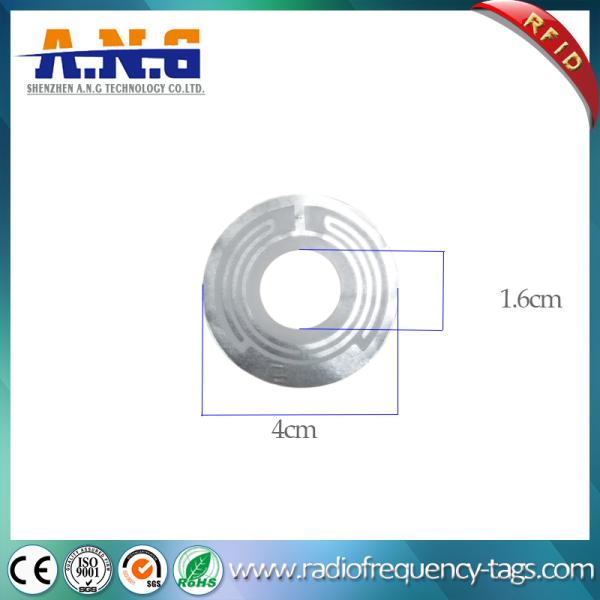

Size:

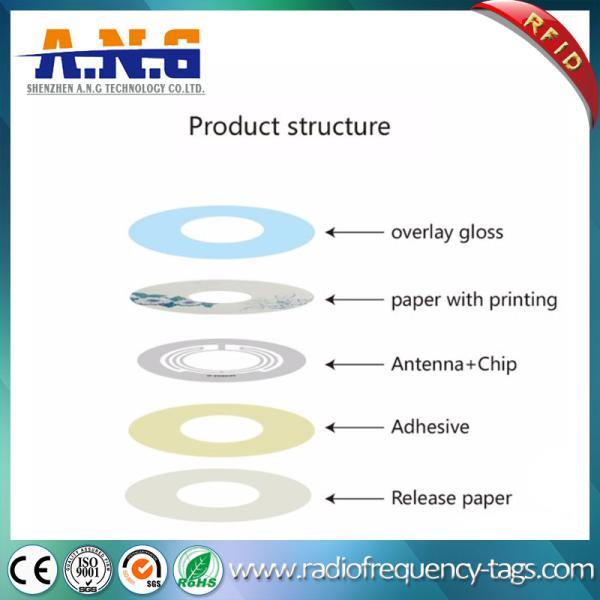

Structure:

If you are interested in this tag, please welcome to send us an inquiry!
