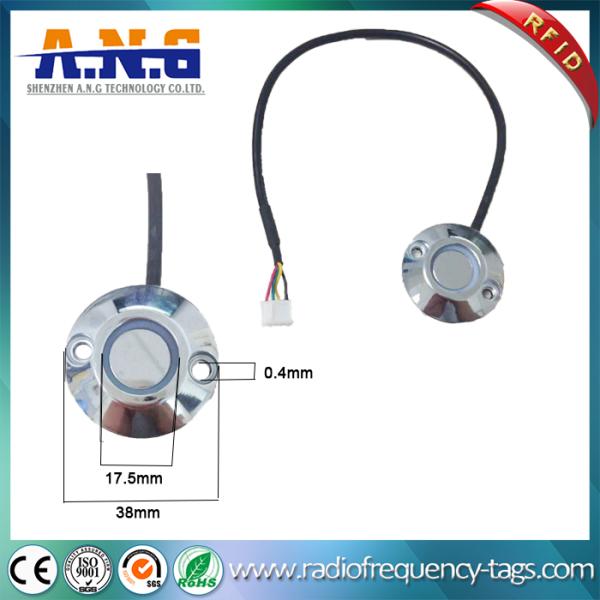

Stainless Steel Magnetic iButton Probe Reader With 3M Back Stickers For TM Card

The new Magnetic Probe is a unique device that was designed to hold a magnetic fob in place by means of magnetic force. The housing is built from a non-magnetic metal, which has a round, flat face in the front and - in the middle of this face - an insulated, spring-loaded pin (which acts as the contact). Built into the Magnetic Probe are small magnets which create the required magnetic field. This attracts magnetic metals, and thus pulls and holds them onto the front face. At the back of the probe is a solder lug (for the ground signal).

The magnetic fob consists of a nickel-plated steel ring pushed over an iButton, which is inserted into a plastic fob. When this fob is held close to the front face of the Magnetic Probe, it is pulled onto the probes face by the magnetic force exerted on the steel ring, and held firmly in place. The ML9092-MG can be mounted onto any panel using an M8 nut. A second nut is used to hold he solder lug in place.

While held in place by the magnetic force, the center contact (spring-loaded pin) transfers the signal (data) read from the iButton to a wire that is soldered to an insulated pin at the back of the probe. The steel ring - which touches the front face of the probe - transfers the ground (earth) signal to a wire soldered to a solder lug at the back of the probe (the probes housing thus acts as ground).

The Magnetic Probe can be used in any application requiring an iButton to be read or written to for any extended (that is, non-instantaneous) period of time. Some examples of these applications include:

• The food services and/or restaurant industry
• Cash registers
• Computer and data processing
• Time and attendance
• Access control

		Model: TM1990A-F5 RW1990					Model: DS1990A-F5 DS1991L-F5 DS1971-F5
		Ibutton keys TM1990A-F5 or RW1990					Ibutton keys DS1990A-F5 or DS1991L-F5 or DS1971-F5
		Ibutton with plastic holder TM1990A-F5 or RW1990					Ibutton wristband TM1990A-F5 or RW1990
		Ibutton reader Model: AR-001					Ibutton reader Model: AR-002
		Ibutton reader with LED Model: AR-003					Ibutton reader With LED or without LED Model: AR-004

If you are interested in this tag, please welcome to send us an inquiry!
