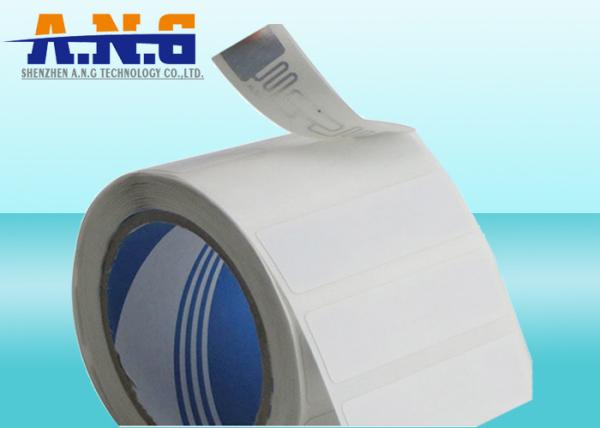

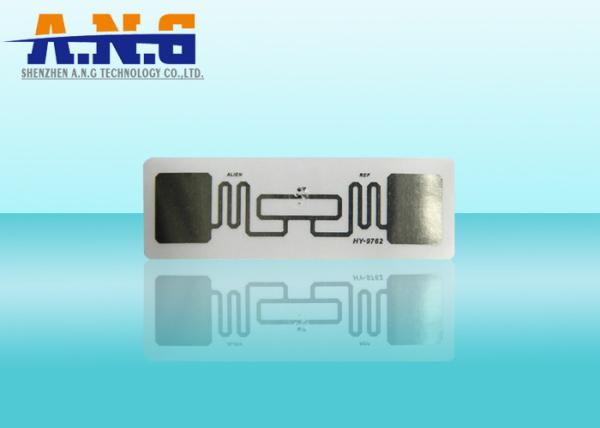

Printable 10m Read Distance UHF Rfid Tag H3 Lable For Ticket And Transportation

​ Higgs-3 operates at extremely low power levels, yet still provides sufficient

backscatter signal to read tags at an extended range. It can also be programmed at low RF powerand, in conjunction with a custom command - LoadImage- can be programmed at high speed. Higgs-3 is implementedin a low cost CMOS process and uses proven and cost effective EEPROM technology.

Higgs-3 offers a flexible memory architecture that provides for the optimum allocation of EPC and User memory for different use cases such as legacy part numbering systems and service history. User memory can also be read and or write locked on 64-bit boundaries, supporting a variety of public/private usage models.

The IC also features a factory programmed 64-bit serial number that cannot be altered. In conjunction with the EPC code, this provides a unique “fingerprint” for the tagged item.

Description:

1. Chip:Higgs-3

2. Frequency: 860-960MHZ

3. Protocol Standard: ISO18000-6C

4. Read/Write Endurance: 100,000 times

5. Operating Temperature :-20°C to + 55°C

Chip features:

› Meets EPCglobal Gen2 (V 1.2.0) as well as
ISO/IEC 18000-6C:2004 / Amd 1:2006 (Type
C)
› Worldwide operation in the RFID UHF bands
(860-960 MHz)
› 800-Bits of Nonvolatile Memory
• 96-EPC Bits, extensible to 480 Bits
• 512 User Bits
• 64 Bit Unique TID
• 32 Bit Access and 32 bit Kill Passwords
› Pre-Programmed with a unique, unalterable
64-bit serial number
› User Memory can be Block Perma-Locked
as well as read password protected in 64 Bit
Blocks
› Supports all Mandatory and Optional Commands
including Item Level Commands
› Custom Commands for high speed programming;
30 tags per second for the 96-bit EPC
number
› Low power operation for both read and
program
› Exceptional operating range, up to 10m with
appropriate antenna

Applications:

1. Library books management
2. Stock management
3. Ticket and transportation

SIZE:

If you are interested in this tag, please welcome to send us an inquiry!
