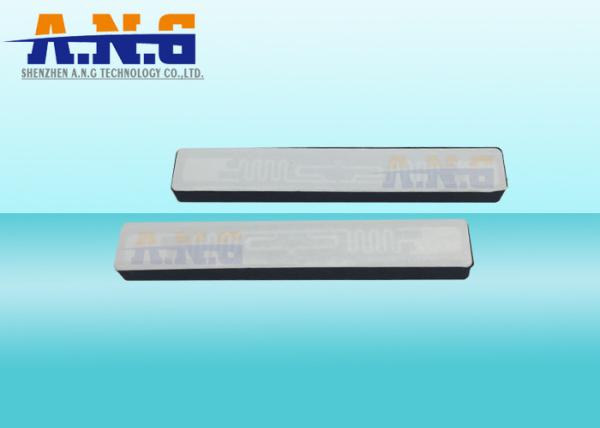

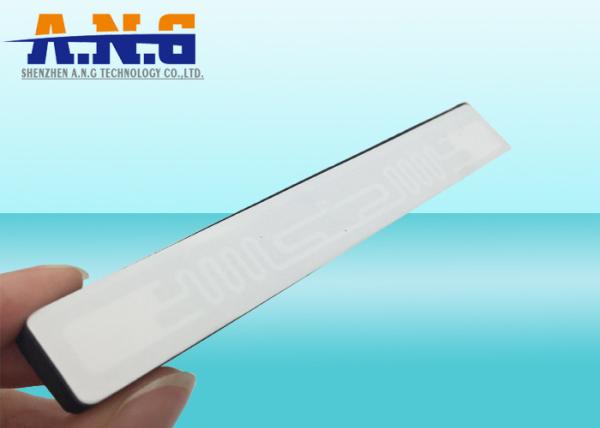

Thickness 8mm Sponge Anti Metal Passive Uhf Rfid Tag With Higgs -3 9640 Chip

When the distance between the label and the metal is at 0.8cm, will be subject to metal interference is weak, so this label use of this feature, not only anti-metal interference and very cheap.

Powered by Alien®’s break-through Higgs™3 UHF RFID IC and innovative Squiggle antenna design, the ALN-9640 delivers industry leading EPC Gen 2 performance and reliability at competitive prices.

ALN-9640 inlays are World Tag compliant, enabling consistent operation across the diverse frequencies of the Americas, Europe, Middle East, Asia, and Africa.

With its Higgs-3 core, the Squiggle delivers unprecedented performance and a rich feature set including a 32-bit TID, a 64-bit Unique TID for authentication and serialization applications, an extensible EPC memory bank, 512-bits of user memory for distributed data applications, and password protected read and write support capabilities to prevent unauthorized viewing and modifi cation of the tag’s data.

Typical applications for the Squiggle include, but are not limited to, corrugate cases, pallet placards, apparel hang tags, baggage tags, shipping labels, asset management and file folder labels.

Description:

1. Chip:Alien Higgs-3 9640

2. Frequency: 860-960MHZ

3. Protocol Standard: ISO18000-6C

4. Read/Write Endurance: 100,000 times

5. Operating Temperature :-20°C to + 55°C

Features:

› EPC Gen 2 (v1.2.0) compliant
› ISO/IEC 18000-6C compliant
› Worldwide RFID UHF operation (840-960MHz)
› Higgs™-3 IC with 800-bits of Nonvolatile Memory
– 32-bit TID
– 64-bit Unique TID
– 96-bit EPC Memory, extensible to 480-bits
– 512-bit User Memory
– 32-bit Access password
– 32-bit Kill password
› Pre-programmed with a unique, unalterable 64-bit
serial number (ideal for authentication)
› User Memory can be Block Perma-Locked
› User Memory can be Read Password protected
in 64-bit blocks, prohibiting unintended Reads
without an access password
› Supports all Mandatory and Optional Gen 2
commands including item level commands
› Custom commands for high speed programming
› Available in high-yield, high-capacity dry/wet inlay
rolls for high volume converting processes

Applications:

• Corrugate cases
• Pallet cards
• Apparel hang tags
• Baggage tags

• Asset management
• File folder labels
• Shipping labels

Size:

If you are interested in this tag, please welcome to send us an inquiry!
