IP65 NFC RFID reader high speed Quad core industrial Android handheld terminal
IP65 NFC RFID reader high speed Quad core industrial Android handheld terminal
IP65 NFC RFID reader high speed Quad core industrial Android handheld terminal
IP65 NFC RFID reader high speed Quad core industrial Android handheld terminal
IP65 NFC RFID reader high speed Quad core industrial Android handheld terminal
IP65 NFC RFID reader high speed Quad core industrial Android handheld terminal
IP65 NFC RFID reader high speed Quad core industrial Android handheld terminal
IP65 NFC RFID reader high speed Quad core industrial Android handheld terminal
Specifications
Brand Name :
A.N.G
Model Number :
AR-CM388T
Certification :
CE,ISO,ROHS
Place of Origin :
Shenzhen, CHINA
MOQ :
1pcs
Payment Terms :
T/T,Paypal,Western Union, MoneyGram
Supply Ability :
100,000pcs per month
Delivery Time :
2-15 Days
Packaging Details :
1pcs/box,100pcs/carton,100pcs 4KG
Price :
Depends on quantities
O/S :
Android OS v4.1.2
CPU :
Qualcomm MSM8625Q, Quad-Core 1.2GHZ
Memory :
1G RAM +4G Flash ROM Expansion(microSD) : 32G (Maximum)
Port :
USB2.0, support OTG
Entry Method :
12 alpha/numeric keys, 2 telephone keys Virtual keyboard entry Input method: Handwriting, keypad
NFC :
HF:13.56M (ISO14443A/B, 15693 Protocol), reading distance 4cm.
Power :
3.7V Li-Polymer 1900mAh, 4000mAh (optional) Standby time:72 hours Charging time: 5-6 hours
Description

IP65 NFC RFID reader high speed Quad core industrial Android handheld terminal

CM388T is upgrade model from CM380A, it is a high speed Quad-core industrial Android handheld terminal. It integrated 1D laser barcode reader and NFC for easy data capture. It supports Wi-Fi, Bluetooth, GPS, GSM / 3G, which make communication conveniently. With protection rate of IP65, it can withstand use in all kinds of rough environment.


Data Sheet:

O/S Android OS v4.1.2
CPU Qualcomm MSM8625Q, Quad-Core 1.2GHZ
Memory 1G RAM +4G Flash ROM
Expansion(microSD) : 32G (Maximum)
Display 3.8'' Capacitive Multi-touch screen; Resolution: 800*480 dpi
Entry Method 12 alpha/numeric keys, 2 telephone keys
Virtual keyboard entry
Input method: Handwriting, keypad
Port USB2.0, support OTG
Power 3.7V Li-Polymer 1900mAh, 4000mAh (optional)
Standby time:72 hours
Charging time: 5-6 hours
Communication

WLAN: Wi-Fi IEEE802.11b/g/n
GSM/GPRS/EDGE 850/900/1800/1900MHz
WCDMA 2100MHz, EVDO 800MHz
Bluetooth 4.0
NFC HF:13.56M (ISO14443A/B, 15693 Protocol), reading distance 4cm.
Camera 5.0 Mega Pixel camera, auto focus, with LED light
Barcode Scanner

1D: Built-in 1D laser scanner
Support: Code128,EAN-13,EAN-8,Code39,UPC-A,UPC-E, Codabar, Interleaved 2 of 5,China post 25,ISBN/ISSN,Code93, UCC/EAN-128,GS1 Databar,HIBC,etc
2D: readable QR code via camera
GPS Built-in SIRF GPS, support A-GPS
Physical Size(L x W x H):135 x 69 x 16 mm
Weight:150g (Include battery )
Case: Black
Support

Gravity Sensor
Electronic Compass
Light Sensor
Distance Sensor
Durability Temperature in operation: -10 to 60ºC
Temperature in storage: -20 to 65 ºC
Humidity in operation: 5% - 90% (non-condensing)
Humidity in storage: 5% - 95% (non-condensing)
Drop Test 1.2 meter onto concrete
Protect Rate IP65




Comparison with old version CM380A:

Item CM380A CM388
O/S Android OS v4.0 Android OS v4.1.2
CPU Qualcomm MSM7227A, Single core 1GHZ Qualcomm MSM8625Q, Quad-Core 1.2GHZ
Memory 512MB RAM +4G Flash ROM 1G RAM +4G Flash ROM
Port USB2.0 USB2.0, support OTG
Communication WLAN: Wi-Fi IEEE802.11b/g
GSM/GPRS
3G: WCDMA 2100MHz
Bluetooth 2.0		 WLAN: Wi-Fi IEEE802.11b/g/n
GSM/GPRS/EDGE 850/900/1800/1900MHz
WCDMA 2100MHz, EVDO 800MHz
Bluetooth 4.0
RFID HF:13.56M (ISO14443A Protocol) NFC:13.56M (ISO14443A/B, 15693 Protocol)



Main Features:

  1. High Performance CPU & large RAM

Qualcomm MSM8625Q, Quad-Core 1.2GHZ CPU
LPDDR2 RAM 1GB
Make the device run faster and more stable.
IP65 NFC RFID reader high speed Quad core industrial Android handheld terminal

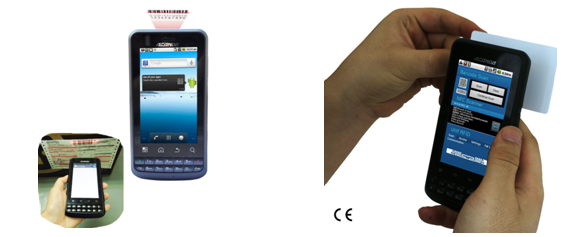

2,1D laser barcode reader & NFC reader

Multi-functions for easy data capture.

IP65 NFC RFID reader high speed Quad core industrial Android handheld terminal


3,GSM/WCDMA/EVDO, WiFi, Blutooth, GPS

IP65 NFC RFID reader high speed Quad core industrial Android handheld terminal

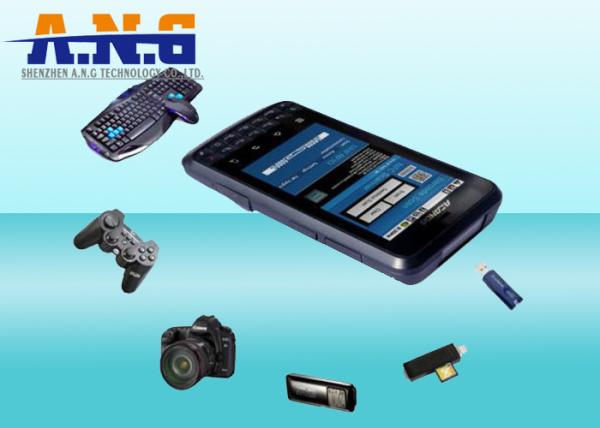

4,USB OTG port

It can connect with all kinds of external devices via OTG cable.

Read data from USB disk, camera etc.

If you are interested in this reader, please welcome to send us an inquiry!
