2.12*12mm 134.2KHZ Animal Microchip ID RFID Glass Tag For Pet Track
2.12*12mm 134.2KHZ Animal Microchip ID RFID Glass Tag For Pet Track
2.12*12mm 134.2KHZ Animal Microchip ID RFID Glass Tag For Pet Track
2.12*12mm 134.2KHZ Animal Microchip ID RFID Glass Tag For Pet Track
2.12*12mm 134.2KHZ Animal Microchip ID RFID Glass Tag For Pet Track
2.12*12mm 134.2KHZ Animal Microchip ID RFID Glass Tag For Pet Track
2.12*12mm 134.2KHZ Animal Microchip ID RFID Glass Tag For Pet Track
2.12*12mm 134.2KHZ Animal Microchip ID RFID Glass Tag For Pet Track
Specifications
Brand Name :
ANG
Model Number :
Glass tube tag
Place of Origin :
Made in china
MOQ :
500
Price :
Depends on chip, size or material
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000000
Delivery Time :
7-15 working days
Packaging Details :
2000pcs/bottle
Certification :
ISO
Color :
Black
Size :
2.12*12mm
Chip :
EM4305
Package :

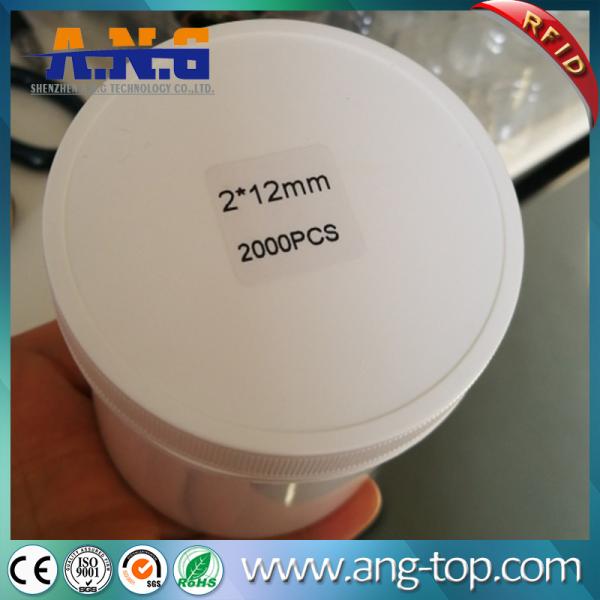

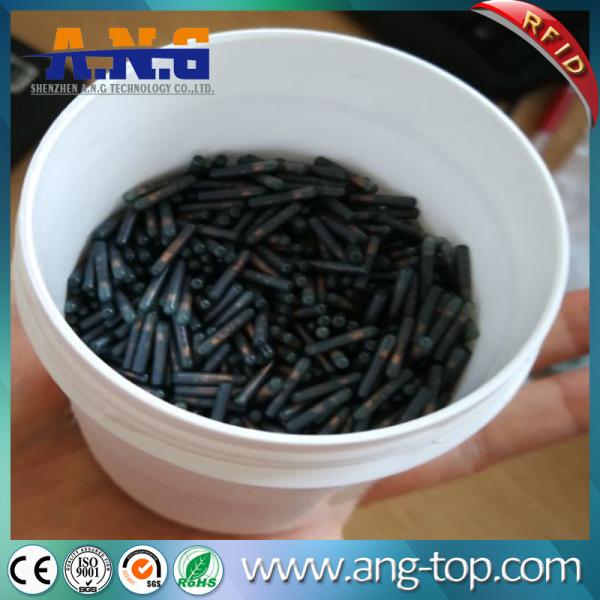

2000pcs/bottle
Frequency :
134.2Khz
Procotol :
ISO11784/785, FDX-B
Description

2.12*12mm 134.2KHZ Animal Microchip ID RFID Glass Tag For Pet Track

As more and more animals are sold in the market, vendors will be difficult to manage their animals. Especially for farmers, batch of cattle, goat or swine, etc. need their tracking. Therefore, a glass tube tag is produced as tiny as possible to implant into animal skin. It is simple and convenient to use.

Glass tube tag is made of biocompatible glass. A low frequency chip is enscapsulated inside the glass. Usually, the chip is EM4305 and frequency of the tag is usually 134.2KHz. However, the tag cannot be used by itself. It needs to used with syringe. There are several sizes of the tag, the smallest size can reach 1.25*7mm.

Model RFID Glass Tube Tag
Chip Type 134.2KHz
Protocol ISO 11785 & ISO 11784 / FDX-B
Write Times > 1,000,000 times
Dimension 2.12*12 mm

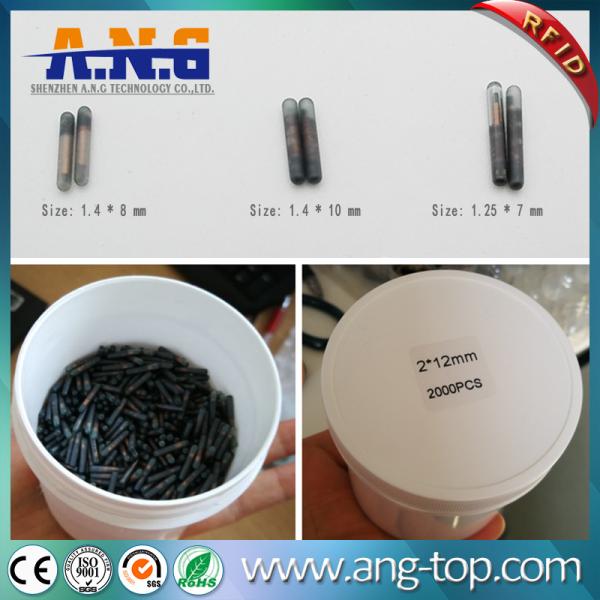

Other Size Available

1.25 * 7mm

1.4 * 8mm

2 * 8mm

3 * 15mm, etc

Plz contact us for quotation
Material Biological material coating coverage, Bio-glass, Anti-bacterial, Anti-allergy
Anti-static Anti-electrostatic breakdown, Anti-pressure above 5000V
Operating Temperature -20°C ~ 50 °C
Storage Temperature -40°C ~ 70 °C
Working Time > 20 years
Read Range 40 - 500 mm

How does this tag apply?

Firstly, the tag is put inside the syringe. The tag needs to be implanted under the skin of animals when close to animals. After implanted into animals, the tag cannot be seen on surface. When animals pass by, farmer can put handheld reader near animals and the tag can be read. This realizes animals management, monitoring and feed control.
