Hf Rfid Tags ULTRALIGHT EV1 4K Adhesive Paper Label Rectangular 56*18mm
Hf Rfid Tags ULTRALIGHT EV1 4K Adhesive Paper Label Rectangular 56*18mm
Hf Rfid Tags ULTRALIGHT EV1 4K Adhesive Paper Label Rectangular 56*18mm
Hf Rfid Tags ULTRALIGHT EV1 4K Adhesive Paper Label Rectangular 56*18mm
Hf Rfid Tags ULTRALIGHT EV1 4K Adhesive Paper Label Rectangular 56*18mm
Hf Rfid Tags ULTRALIGHT EV1 4K Adhesive Paper Label Rectangular 56*18mm
Hf Rfid Tags ULTRALIGHT EV1 4K Adhesive Paper Label Rectangular 56*18mm
Hf Rfid Tags ULTRALIGHT EV1 4K Adhesive Paper Label Rectangular 56*18mm
Specifications
Brand Name :
A.N.G
Model Number :
AT-SH152
Certification :
CE,ISO,ROHS
Place of Origin :
Shenzhen, CHINA
MOQ :
500pcs
Price :
Depending on the chip, material, printing
Payment Terms :
T/T,Paypal,Western Union, MoneyGram
Supply Ability :
5,000,000pcs per month
Delivery Time :
7-15 days
Packaging Details :
1000pcs / tie
Keywords: :
HF tags, RFID sticker, SMART Adhesive
Size: :
Rectangular 56*18mm
Material: :
Paper
Chip: :
ULTRALIGHT EV1
Frequency: :
13.56MHz
Colour: :
White
Description

Hf Rfid Tags ULTRALIGHT EV1 4K Adhesive Paper Label Rectangular 56*18mm

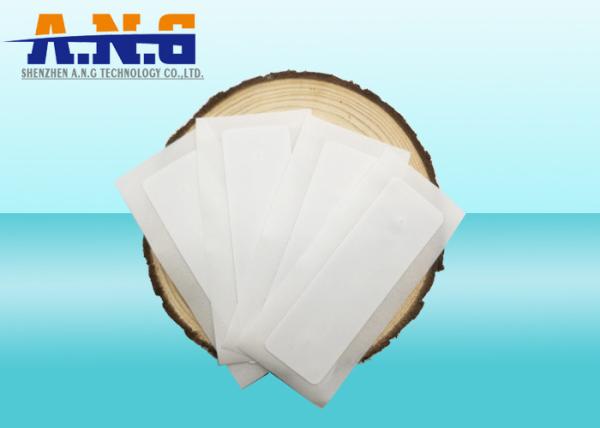

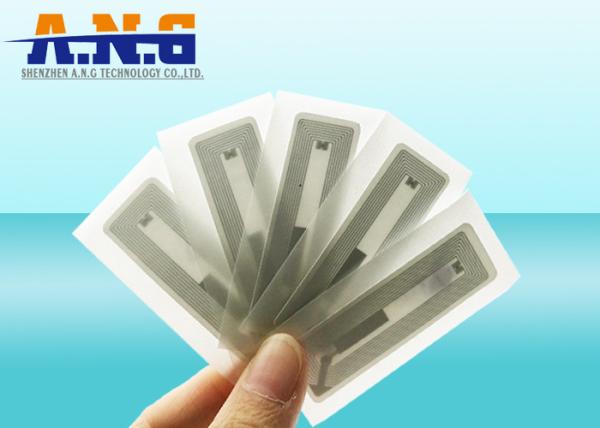

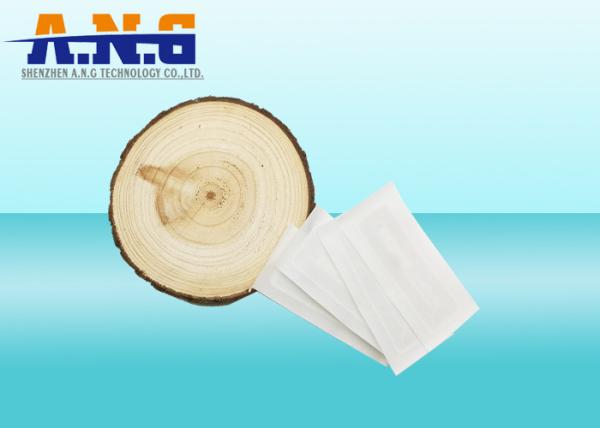

These rectangular (56mm x 18mm) MF ULTRALIGHT EV1 RFID adhesive labels have blank matt paper on the top, which protects the chip and the antenna underneath. Thanks to their permanent adhesive layer with release paper (on the backside of the label), they can be easily fixed to the items for asset tracking. They can be personalised for example with barcode or company logo. For more infomartion please take a look at the datasheet or contact us.

Parameter:

Frequency
13.56 MHz
Compliance
ISO/IEC 14443 Type A, NFC Forum Type 2
Memory Size
640-bit or 1312-bit (First 512 bits compatible to MF Ultralight® MF0ICU1)
Features
Serial Number: 7-Byte UID (Unique Identifier)
ECC based originality signature
Data integrity of 16-bit CRC, parity, bit coding, bit counting
Fast counter transaction: < 10 ms
Data transfer of 106 kbit/s
True anticollision
Available Types
Paper Label, PVC Label, PET Label
Dry Inlay, Wet Inlay
Anti-tear / Tamperproof Label, Label with Cutting Lines
Windshield Tag
On-Metal (Anti-Metal) Label
Certain types may not be available in all sizes
Temperature
-25 ̊ to 50 ̊ Celsius
Dimensions
According to customer’s requirements.
Printing Options
 Full-color offset printing, Silkscreen printing
Number Printing Options
Inkjet, Thermal Flat, Laser

Non-volatile memory

  • 256 bytes application memory
  • Data retention of 10 years
  • Write endurance typical 500 000 cycles

NV-memory organization

  • Flexible file system
  • Number of applications and files per application depending on available memory
  • File types supported: standard data file, back-up data file, value file, linear record file and cyclic record file
  • File size is determined during creation

Security

  • Based on the same Common Criteria EAL4+ certified MF DESFire EV1 platform
  • Unique 7 bytes serial number for each device
  • Optional “RANDOM” ID for enhance security and privacy
  • Mutual three-pass authentication
  • Mutual authentication according to ISO/IEC 7816-4
  • 1 card master key and up to 14 keys per application
  • Hardware DES using 56/112/168 bit keys featuring key version, data authenticity by 8 byte CMAC
  • Hardware AES using 128-bit keys featuring key version, data authenticity by 8 byte CMAC
  • Data encryption on RF-channel
  • Authentication on application level
  • Hardware exception sensors
  • Self-securing file system
  • Backward compatibility to MF3ICD40: 4 byte MAC, CRC 16

Special features

  • Transaction-oriented automatic anti-tear mechanism
  • Configurable ATS information for card personalization
  • Backward compatibility mode to MF3ICD40
  • Optional high input capacitance (70 pF) for small form factor design (MF3ICDHQ1)

Application:


Public transportation
Event ticketing
Loyalty

Here is a graph of the electromagnetic spectrum with the frequency bands that the RFID systems can use

Hf Rfid Tags ULTRALIGHT EV1 4K Adhesive Paper Label Rectangular 56*18mm

If you are interested in this tag, please welcome to send us an inquiry!
