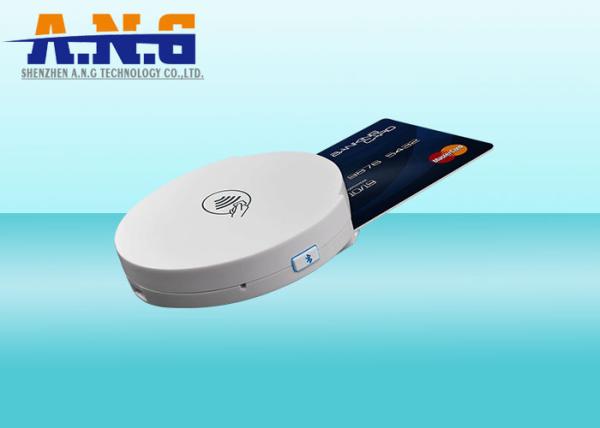

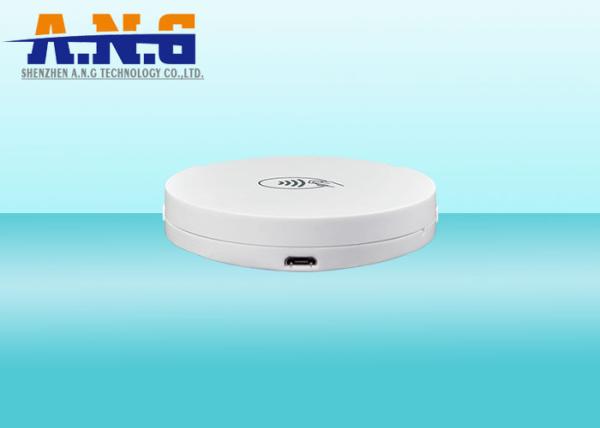

AMR220-C1 Bluetooth mPOS Reader ISO 7816 EMV Smart Card Reader Writer NFC Reader

AMR220-C1 ACS Secure Bluetooth® mPOS Reader supports ISO 7816 Class A, B, and C full-sized smart cards (5 V, 3 V, and 1.8 V), including microprocessor cards with T=0 and T=1 protocol, ISO 14443 Type A and B smart cards, ®, FeliCa, and most NFC tags and devices compliant with the ISO 18092 standard.

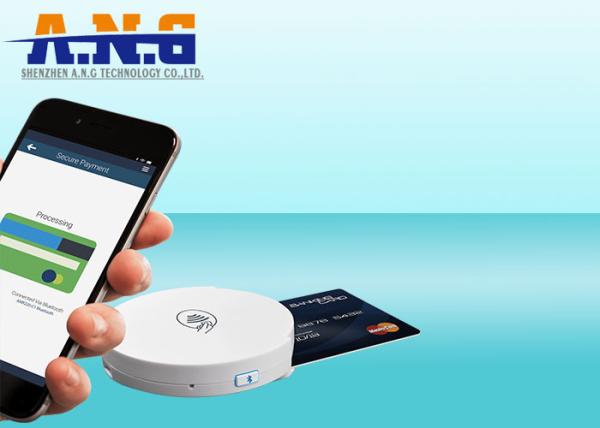

AMR220-C1 uses Bluetooth® technology to connect easily, securely, and wirelessly to any terminal running on Android™ 4.4 and later and iOS 8.0 and later. It is also PC/SC and CCID-compliant, making it easy to install and use with any computer-based environment using operating systems such as Windows®, Linux®, and Mac OS®.

Through its compact design and a rechargeable Lithium-ion battery, AMR220-C1 is extremely convenient for use anytime, anywhere. AMR220-C1 offers in-field firmware upgrade which lets users cope with the fast-changing technology utilized for different applications in various scenarios. With this feature, stakeholders can cut costs and save time, and users can benefit from the utmost convenience provided.

With its numerous features, the AMR220-C1 enables fast and convenient access to different applications, and provides myriad opportunities to shop, network, and explore.

FEATURE

• Bluetooth® Interface
• USB 2.0 Full Speed Interface
• Power Source:
  • Battery-Powered (incorporates a Litium-ion battery rechargeable through USB Micro-B port)
  • USB-Powered (through PC-linked mode)
• CCID Compliance
• Smart Card Reader:
  • Read/write speed up to 848 kbps
  • Built-in Antenna for contactless tag access, with card reading distance of up to 50 mm (depending on tag type)
  • Supports ISO 14443 Type A and B cards, , FeliCa, and all 4 types of NFC (ISO/IEC 18092) tags
  • Built-in anti-collision feature (only 1 tag is accessed at any time)
  • NFC Support
    • Card Reader/Writer Mode
  • Read/write speed up to 600 kbps
  • Supports ISO 7816 Class A, B, and C (5 V, 3 V, 1.8 V) full-sized cards
  • Supports microprocessor cards with T=0 or T=1 protocol
  • Supports PPS (Protocol and Parameters Selection)
  • Features Short Circuit Protection
  • Contactless Interface:
  • Contact Interface:
• Built-in Peripherals:
  • Four User-controllable single-color LED (Green)
  • One Charging Status LED (Red)
  • One Bluetooth Status LED (Blue)
  • Power Switch
  • Bluetooth Switch
  • LEDs:
  • Buttons:
  • User-controllable speaker (Audio Tone Indication)
• Application Programming Interface:
  • Supports PC/SC
  • Supports CT-API (through wrapper on top of PC/SC)
• USB Firmware Upgradeability
• Supports Android™ 4.4 and later
• Supports iOS 8.0 and later

TECH SPEC

APPLICATION

• e-Government
• Mobile Banking & Payment
• e-Healthcare
• Network Security
• Access Control
• Public Key Infrastructure
• e-Purse & Loyalty
