EM4305 125KHz RFID Passive Tag with Chip and Ferrite Core For Engineering pipeline
EM4305 125KHz RFID Passive Tag with Chip and Ferrite Core For Engineering pipeline
EM4305 125KHz RFID Passive Tag with Chip and Ferrite Core For Engineering pipeline
EM4305 125KHz RFID Passive Tag with Chip and Ferrite Core For Engineering pipeline
EM4305 125KHz RFID Passive Tag with Chip and Ferrite Core For Engineering pipeline
EM4305 125KHz RFID Passive Tag with Chip and Ferrite Core For Engineering pipeline
EM4305 125KHz RFID Passive Tag with Chip and Ferrite Core For Engineering pipeline
EM4305 125KHz RFID Passive Tag with Chip and Ferrite Core For Engineering pipeline
EM4305 125KHz RFID Passive Tag with Chip and Ferrite Core For Engineering pipeline
EM4305 125KHz RFID Passive Tag with Chip and Ferrite Core For Engineering pipeline
Specifications
Brand Name :
ANG
Model Number :
ANG-S801
Certification :
ISO,SGS
Place of Origin :
MADE IN CHINA
MOQ :
100pcs
Price :
depend on quantity and other details
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
100000pcs per month
Delivery Time :
5-8 working days
Packaging Details :
1pc per box
Chip :
EM4305
Frequency :
125Khz
Reading distance :
2m
Size :
Φ52mm*136mm
Weight :
710g
Description

EM4305 125KHz RFID Passive Tag with Chip and Ferrite Core For Engineering pipeline

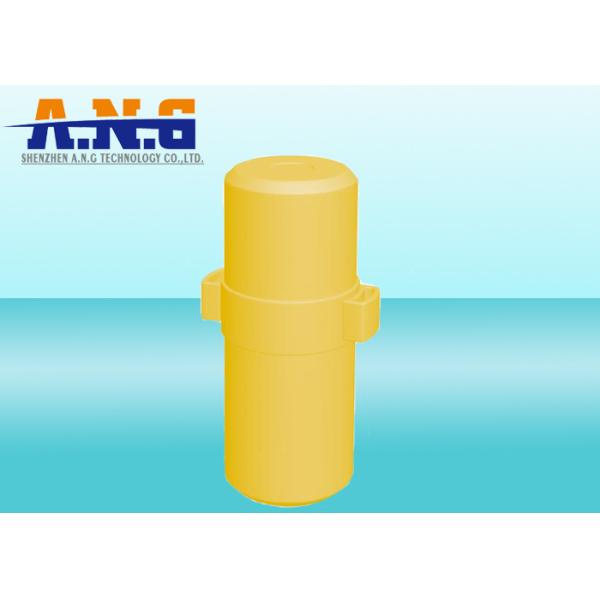

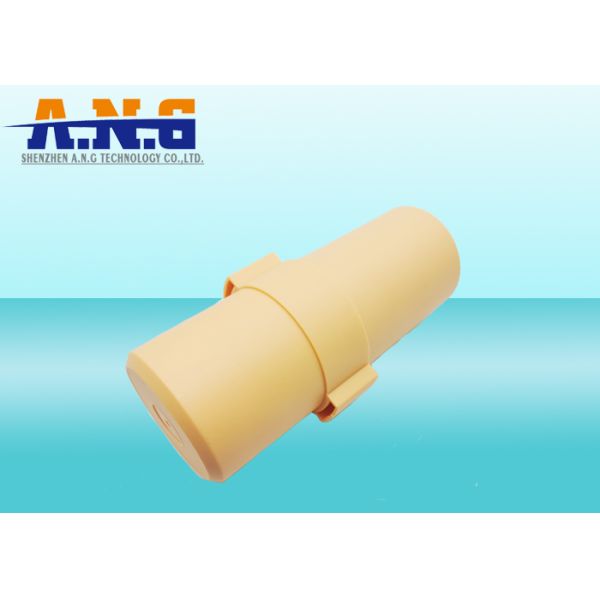

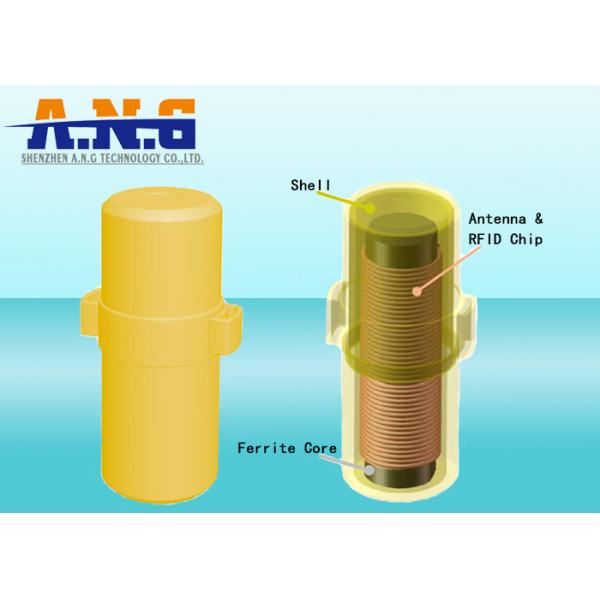

Cylindrical underground pipe electronic information marker, the product consists of four parts: outer casing, sensing antenna, RFID chip and ferrite core. The outer casing is made of high-quality nylon engineering plastic. The gap between the ferrite core and outer casing is filled with epoxy resin, which has good performance in corrosion resistance and aging resistance. The working frequency of the marker adopts the low frequency band, which has good penetration and obstacle ability, and the recognition distance is far (up to 2.5 meters), and maintenance-free. It is used for underground pipeline positioning and is buried near underground facilities. It can store the location of underground facilities, depth of burial, pipe diameter, pipe, date of installation, construction unit and date of use to facilitate the detection and identification of underground facilities in the future. It can also help management. Daily maintenance work. Can be widely used in urban high-density underground pipeline systems.

Material

Shell: Nylon engineering plastic

Filler: Epoxy Resin

Magnetic Core: Ferrite Core
Color Yellow
Size Φ52mm*136mm
Weight 710g
Working Temperature -25℃ ~ +65℃ (no frozen)
Storage Temperature -40℃ ~ +80℃(no frozen)
Chemical Resistance IP67

Specification

Mode Read and Write
Memory

EEPOM 528bit

User Data 192bit
ID Number Unique 15 bits UID number
Working Frequency 125Khz
Protocol ISO11784 / 11785
Data Storage >30 years
Write Endurance >100,000 cycles
Power Supply Passive
Operating Distance 0.2-2.5 meters

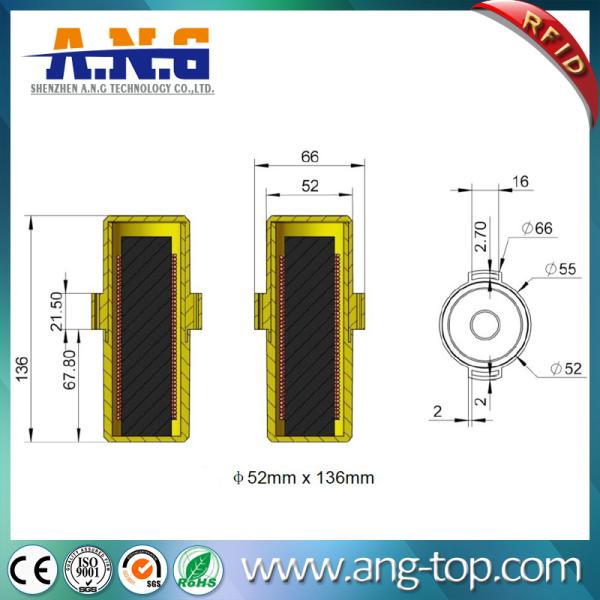

Size:

EM4305 125KHz RFID Passive Tag with Chip and Ferrite Core For Engineering pipeline

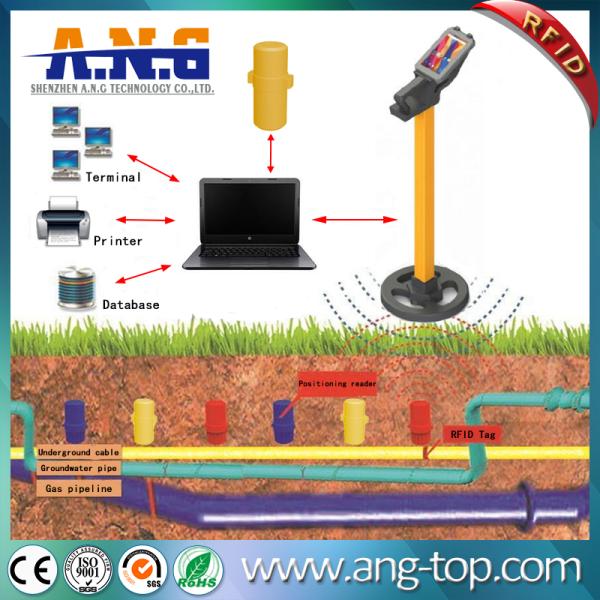

Application:

EM4305 125KHz RFID Passive Tag with Chip and Ferrite Core For Engineering pipeline

EM4305 125KHz RFID Passive Tag with Chip and Ferrite Core For Engineering pipeline

EM4305 125KHz RFID Passive Tag with Chip and Ferrite Core For Engineering pipeline

EM4305 125KHz RFID Passive Tag with Chip and Ferrite Core For Engineering pipeline
