High Frequency Blue Rfid Key Chains Anti - Shock 51.5×32.4×5.8mm
High Frequency Blue Rfid Key Chains Anti - Shock 51.5×32.4×5.8mm
High Frequency Blue Rfid Key Chains Anti - Shock 51.5×32.4×5.8mm
High Frequency Blue Rfid Key Chains Anti - Shock 51.5×32.4×5.8mm
Specifications
Brand Name :
A.N.G
Model Number :
AK-S116
Certification :
CE,ISO, SGS，ROHS
Place of Origin :
Shenzhen, CHINA
MOQ :
500pcs
Payment Terms :
T/T, Paypal ,Western Union, MoneyGram
Supply Ability :
1000,000pcs per month
Delivery Time :
7-15 Days
Packaging Details :
200pcs/bag,2000pcs/carton
Price :
Depends on chips
Item Type :
High Frequency Key Tags（KeyFob）
Protocol standard :
ISO14443A,ISO15693
Operation Frequency :
13.56MHz
Dimension :
51.5*32.4*5.8mm or Customized
Material :
ABS,Plastic
Endurance :
About 10 years
Feature :
Contactless
Unit weight: :
about 7g
Color :
yellow Blue black red etc…
Chip :
S50, S70, I-CODE-2, Ultralight,
custom made :
Yes
Description

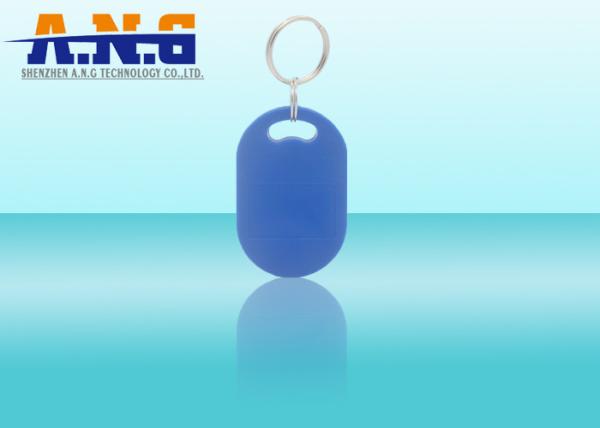

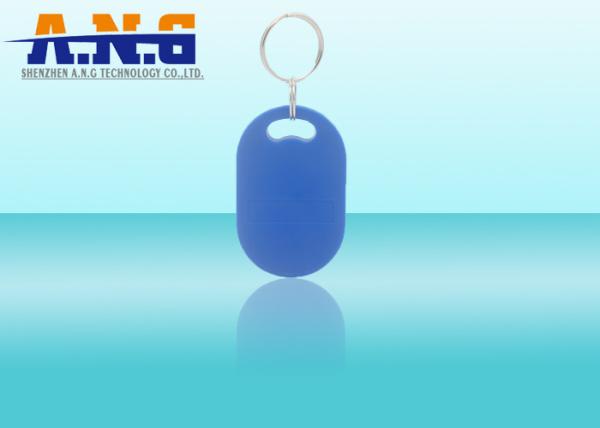

High Frequency Blue Rfid Key Chains Anti - Shock 51.5×32.4×5.8mm

This RFID Key Tags is made of refined mold, advanced high temperature anti-corrosion material injection pressure, internal High Frequency chip package, by filling an epoxy resin, a combination of ultrasonic welding, can be waterproof, easy to carry features.Make extensive use for Access Control system.

Description:

1. Chip: S50, S70, I-CODE-2, Ultralight,

2. Protocol Standard:ISO14443A,ISO15693

3. Read/Write Endurance: 100,000 times

4. Operating Temperature :-20°C to + 70°C

Model

AK-S116

Dimension

51.5*32.4*5.8mm+/-0.03mm

Chip types options

S50, S70, I-CODE-2, Ultralight,

Feature

Durable, waterproof, anti-shock

Reading range: About 5cm

Data storage: 10 years

Working temperature: -20℃~70℃

Housing material

ABS

Housing material

Blue, black, yellow , red ,white, green, red , purple etc.

Application

Access Control & Security, Time Attendance, Loyalty & Membership Management, Ticket & Payment, Club/SPA membership management, Rewards and promotion etc.

Chip parameters:

Chip

Memory

(bytes)

User

Memory

(bytes)

URL characters

Best Use

Ultralight

64

48

41

Cost effective chip for short URLs in products (wristbands,

keyfobs, etc).

NTAG203

168

144

132

Popular, established all-round NFC chip.

Cost-effective with good memory capacity.

NTAG210

80

48

41

Cheap, general NFC use with short URLs.

Limited availability

NTAG213

180

144

132

Next generation chip, will eventually replace

NTAG203. Great ScanStrength.

NTAG215

540

504

492

The 'one in the middle'. Good memory but

limited availability compared to the NTAG216.

NTAG216

924

888

854

Large memory and full feature set. Higher price

makes it suitable for vCard and larger memory use only.

Ultralight C

192

148

132

Specialist applications requiring encryption only.

Poor scan distance with mobile phones.

MF 1k

1024

716

710

Legacy applications only. Not recommended

for general mobile phone NFC usage.

Desfire 4k

4K

4094

2000

Specialist applications requiring strong

data encryption only.

Topaz 512

512

454

449

Universally compatible chip available in only a limited number of

products.

Useful for vCards or small data storage.

Product feature:

Material: ABS

Unit weight: about 7 g

Dimension: 51.5*32.4*5.8mm or Customized

Color: Blue, black, yellow, red, white, green, etc.

Depends on requirement

Applications:

1. Access Control & Security

2. Time Attendance

3. Loyalty & Membership Management

4. Ticket & Payment

5. Club/SPA membership management

6. Rewards and promotion

High Frequency Blue Rfid Key Chains Anti - Shock 51.5×32.4×5.8mm

Packing:

100pcs/opp bag,1000pcs/box

Select Packaging according to purchase quantity.

If you are interested in this key fob, please welcome to send us an inquiry!
