Air Brake Parts Combined Dust Collector DN25 for Freight Wagon

Brief introduction:

Combined dust collector is installed on the brake branch pipe in the middle of the vehicle, which is used to open or close the passage between the brake main pipe and the branch pipe, and filter and remove dust in the pressure air entering the brake branch pipe. The combined dust collector has the advantages of simple structure, high reliability, good sealing performance, simple maintenance and low resistance when opening the block door, which is convenient for train inspection and shunting.

Main parameters:

Structure:

The combined dust collector comprises a shell, a dust collecting part and a cut-off cock part.

The shell has an air inlet and an air outlet;

The dust collecting part is arranged in the shell and filters the gas passing through the combined dust collector;

The cut-off cock part is arranged in shell. The cut-off cock part includes: a rotation control structure, which is rotatably arranged in the dust collector shell. The rotation control structure has a cut-off position for cutting off the passage between the air inlet and the air outlet and an open position for connecting the air inlet and the air outlet.

Rotary handle - the rotary handle is rotatably arranged outside the shell in the vertical plane and on the side of the dust collector shell. The rotary handle is connected with the rotary control structure and drives the rotary control structure to rotate. When the upper part of the combined dust collector is relatively narrow, the combined dust collector can also be controlled by the handle.

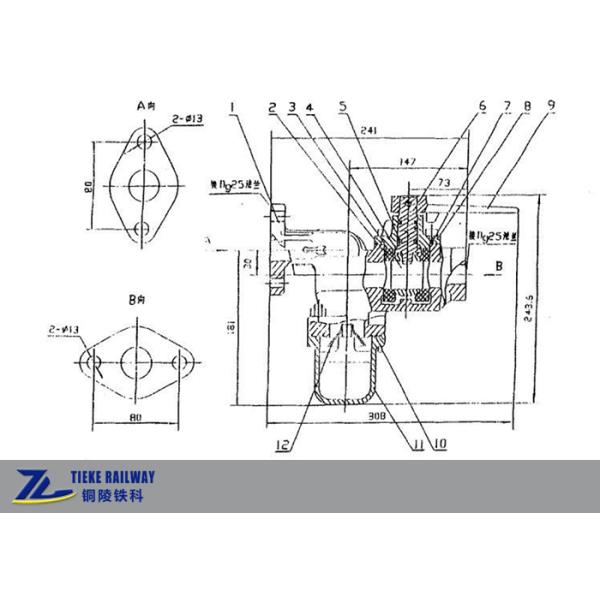

Dimension drawing:

Detail parts name:

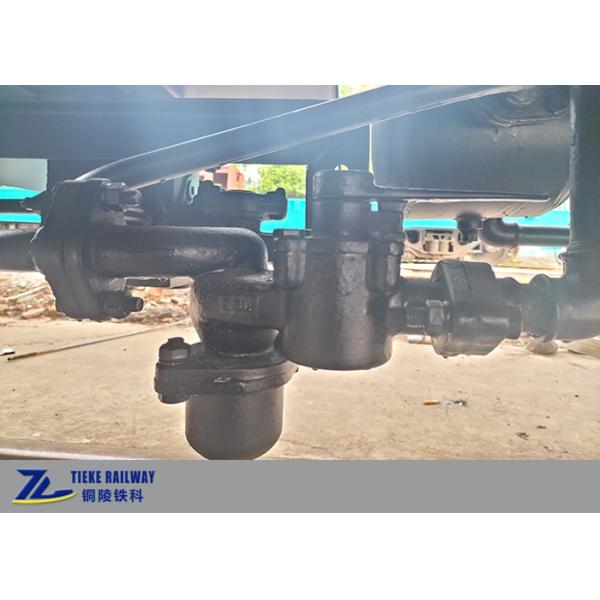

Detail image:

Why choose us?

1. Tieke is an authorized railway wagons parts provider of Chinese Railways and our quality is assured;
2. Tieke provide full ranges of various wagon and wagon spare parts and one stop services for customers;
3. Tieke is adaptable to different railway gauges, different axle loads, running speeds;
4. Tieke could design and manufacture according other railway standards like AAR, EN, TB, GOST and etc.
