63 Ton Liquid Caustic Soda Railway Tanker Wagons For NaOH Liquid Alkali
63 Ton Liquid Caustic Soda Railway Tanker Wagons For NaOH Liquid Alkali
63 Ton Liquid Caustic Soda Railway Tanker Wagons For NaOH Liquid Alkali
63 Ton Liquid Caustic Soda Railway Tanker Wagons For NaOH Liquid Alkali
63 Ton Liquid Caustic Soda Railway Tanker Wagons For NaOH Liquid Alkali
63 Ton Liquid Caustic Soda Railway Tanker Wagons For NaOH Liquid Alkali
Specifications
Brand Name :
Tieke
Model Number :
G11JK
Place of Origin :
China
MOQ :
One set
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
1000 sets per year
Delivery Time :
3-6 months
Packaging Details :
Nude packing with support base and with anti-collision protection
Name :
G11JK Liquid Caustic Soda Tanker Wagon Railway Tanker Car for NaOH Liquid Alkali
Railway Gauge :
1435 mm
Pay Load :
63 tons
Tare weight :
20.9 tons
Bogie type :
K2 bogie
Coupler :
No.13 coupler
Design speed :
120 km/h
Application :
Transport liquid caustic soda NaOH by railway
Description

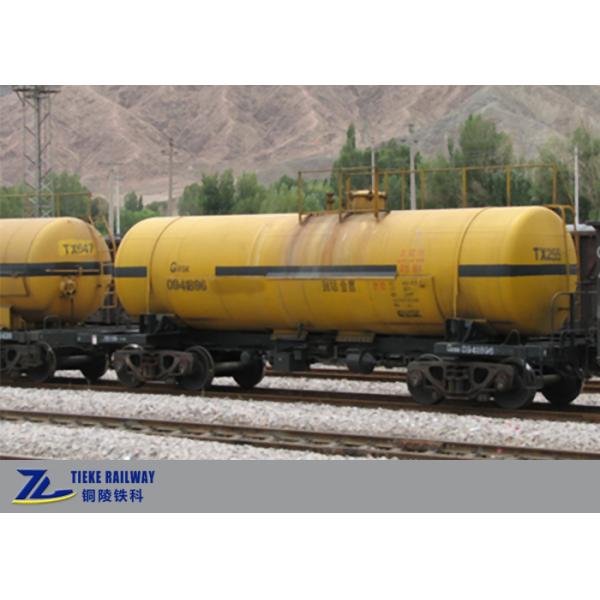

G11JK Liquid Caustic Soda Tanker Wagon Railway Tanker Car for NaOH Liquid Alkali

G11JK Liquid Caustic Soda Tanker Wagon is applied in Chinese standard gauge railway. It is used to ship liquid alkali (NaOH) with a concentration of more than 30%, and the liquid goods are loaded and loaded from the top of the wagon.

This tanker wagon adopts all steel welded structure with middle beam, which is mainly composed of underframe, tank body, heating sleeve device, outer ladder, connection between tank and underframe, air and hand brake device, coupler buffer device, bogie and other components. One position end of the car body is equipped with passing platform and hand brake device. The tank body is provided with slag discharge holes to facilitate cleaning. The heating sleeve, heating pipeline, slag discharge hole and other devices can be selected according to the requirements of users. It is equipped with K2 Bogie, Grade C steel 13 coupler.

Main technical parameters:

Load 63t
Tare weight 20.9t
Axle load 20.98t
Efficient capacity 49 m3
Working pressure of tank 0.15 Mpa
Commercial running speed 120 km/h
Min radius 145m
Application environmental temperature -40～+40℃
Tank length 9680mm
Vehicle length 11988mm
Coupler center height 880mm
Bogie center distance 1750mm
Wheel diameter 840mm
Rail gauge 1435mm
Limit gauge GB146.1 ‘Gauge for standard gauge railway-rolling stock gauge’

Package and delivery:
Nude pack with support base and with anti-collision protection.
Detail export packing design will be designed according to destination port's lifting capability and destination transportation condition.


Application:

63 Ton Liquid Caustic Soda Railway Tanker Wagons For NaOH Liquid Alkali


FAQ:
Q1: Are you a trading company or a factory?
A: We are directly a factory and we manufacture and export railway wagons directly.

Q2: Do you have design ability to provide customized railway vehicles?
A: Yes, we have professional technical team and we are familiar with international railway standards like UIC, AAR, EN and we are able to provide railway equipment according to customer requirements.

Q3: Chinese railway gauge is 1435mm, but our country’s is 1000mm gauge, will this be a problem for you?
A: Of course not, we are able to design railway wagons of different gauges like 1435mm, 1000mm, 1067mm, 1520mm or other required railway gauges.

Q4: Why should I choose you, compared with your competitors?
A: Tieke Railway was transformed from wagons factory belong to Chinese Railway in 2016 and the company have over 10 years’ experiences in manufacturing railway wagons; Now as Tieke Railway is a private company and adopt modern market management strategies, our services are flexible and more considerate and our cost is more controllable.

Q5: What should I provide to get a quotation from you?
A: You could send your inquiry with detail drawings, product photos, detail technical parameters or requirement description. A complete requirement input is very important for us to provide an accurate quotation to you.
